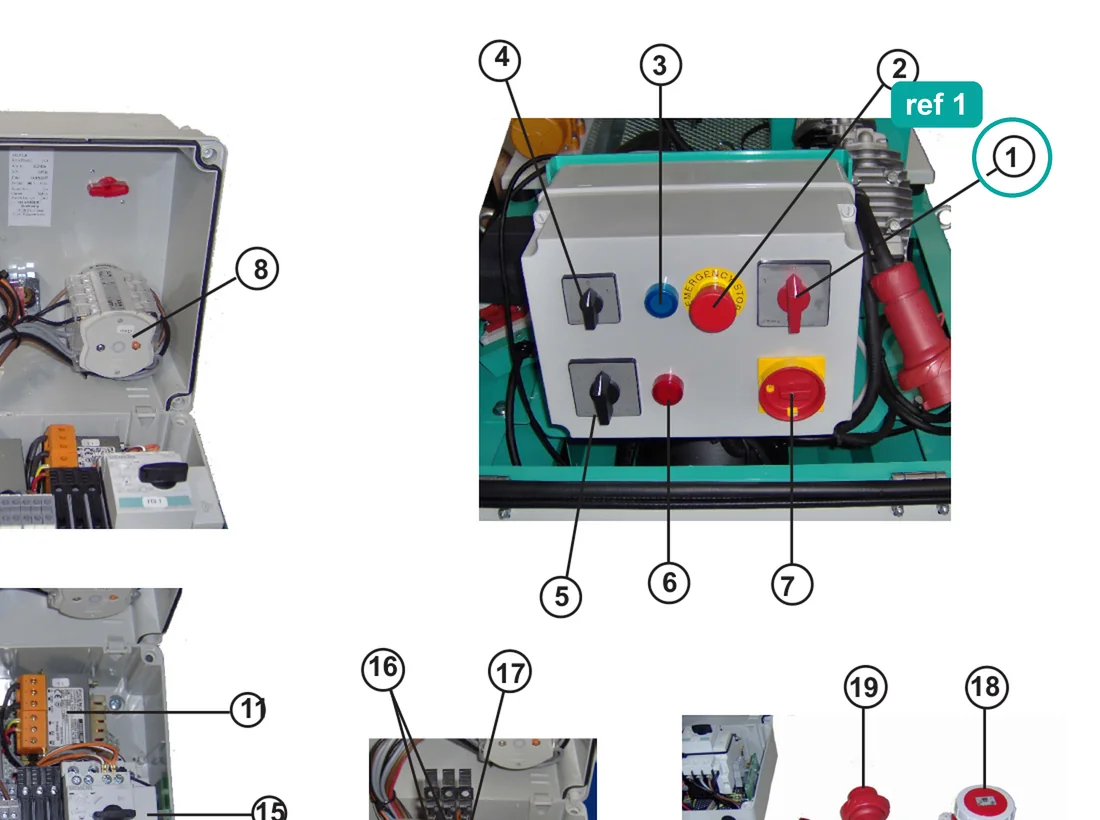

Selector Knob 1-0-2 for IMER Step-Up 120 — IMER parts diagram, ref 1

01Where it fits

Where this part sits on your machine

  • Drawing 8 · Ref 1

    IMER Step-Up 120

    Electrical Panel 400V 50/60Hz / 220V 60Hz Three-Phase

    View on the drawing

Also on this drawing

All 24 parts on Drawing 8, Electrical Panel 400V 50/60Hz / 220V 60Hz Three-Phase

02Fits

Fits these machines

1 machine · 1 IMER parts book

From IMER parts book 3226875 r16 (2018-09).

03Where it sits

Ref 1 on the Step-Up 120 drawing

Open full diagram →
Step-Up 120 — Electrical Panel 400V 50/60Hz / 220V 60Hz Three-Phase, parts list
RefPart no.NamePrice
13227726Selector Knob 1-0-2In stock, $96.00
23225237Emergency Stop Pushbutton With Reset, CompleteIn stock, $169.00
33223241Complete Blue Indicator Light + Lamp 24VNot sold onlineAsk a parts specialist
43227727Selector Knob 0-1In stock, $96.00
53226837Selector Knob 1-0-2In stock, $96.00
63225242Complete Red Indicator Light + Lamp 24VIn stock, $78.00
73226345Motor Protector Knob 0-1 64x64In stock, $85.00
83227724CommutatorIn stock, $450.00
93226836Reversing Switch600V/40A 3PIn stock, $472.00
103227723SwitchIn stock, $177.00
113231962Transformer150VA 0-230V 400-440V; from serial 3010529In stock, $249.00
123231654ContactorNot sold onlineAsk a parts specialist
133227742Fuse HolderIn stock, $41.00
143226109Thermal Magnetic Switch20-25 A; Step 1106086 220V 60Hz TPHIn stock, $671.00
143229069Thermal Magnetic Switch14-20 A; Step 1106087 380V 50-60HzIn stock, $426.00
153225430Release CoilStep 1106086 220V 60Hz TPHIn stock, $128.00
153225430Release CoilStep 1106087 380V 60Hz; from serial 3010529In stock, $128.00
163227783Fuse 1A 500VIn stock, $10.00
173227784Fuse 4A 250VIn stock, $10.00
183228279Straight Wall Socket 16A 6H 200/250V 3P+N+T 380V IP67Step 400V 50-60HzNot sold onlineAsk a parts specialist
183231650Straight Wall Socket 3P+T IP67 32A 200-250V 9HStep 220V 60Hz TPHIn stock, $83.00
193231649Plug 3P+T 9H 32A 220VStep 220V 60Hz TPHIn stock, $67.00
192278300Plug 3P+T 6H 16A 380V IP67Step 380V 50-60HzNot sold onlineAsk a parts specialist
203225274Relay HolderIn stock, $51.00
213225228Auxiliary RelayIn stock, $60.00

04Specifications

Part details

Part number
3227726(3227-726)
Brand
IMER (genuine OEM)
Condition
New
Assembly
Electrical Panel 400V 50/60Hz / 220V 60Hz Three-Phase
Fits
1 machine

This is genuine IMER part number 3227726. The official IMER parts books list it as "Selector Knob 1-0-2" and show it for the IMER Step-Up 120.

Parts-book listings: Step-Up 120, table 8 (Electrical Panel 400V 50/60Hz / 220V 60Hz Three-Phase), ref 1.

Check that the part number on your old part or in your machine's parts list matches 3227726 before ordering, or contact us with your machine's model and serial number.
