IMER Koine 4 parts book · Drawing 9

Ref 5
Plug 3P+T 110V 16A IP44 (ref 5) on the IMER Koine 4 Self-Levelling Kit (1107091) drawing
Koine 4 parts book · Drawing 9, Self-Levelling Kit (1107091) · Ref 5 · Open full diagram

01Where it fits

Where this part sits on your machine

  • Plug 3P+T 110V 16A IP44, ref 5, on the IMER Koine 4 drawing

    Drawing 9 · Ref 5

    IMER Koine 4

    Self-Levelling Kit (1107091)

    View on the drawing

  • Drawing 16 · Ref 30

    IMER Prestige 300

    Injection Kit (1107082)

    View on the drawing

  • Drawing 1/A · Ref 12

    IMER Small 50

    Vibrating Screen (Old Castle)

    View on the drawing

  • Drawing 17 · Ref 33

    IMER Step-Up 120

    Injection Kit (1107575)

    View on the drawing

Also on this drawing

All 7 parts on Drawing 9, Self-Levelling Kit (1107091)
  • 6
    Complete switch

    3230533

    $316.00In stock

  • 2
    Green rotor D8-1.5

    1107031

    $279.00In stock

  • 7
    Electrical equipment kit

    3225366

    $780.00In stock

02Fits

Fits these machines

4 machines · 4 IMER parts books

From IMER parts books 3223425 r18 (2018-09), 3234338 r03 (2018-09), 3225890 r11 (2018-09), 3226875 r16 (2018-09).

03Where it sits

Ref 5 on the Koine 4 drawing

Open full diagram →

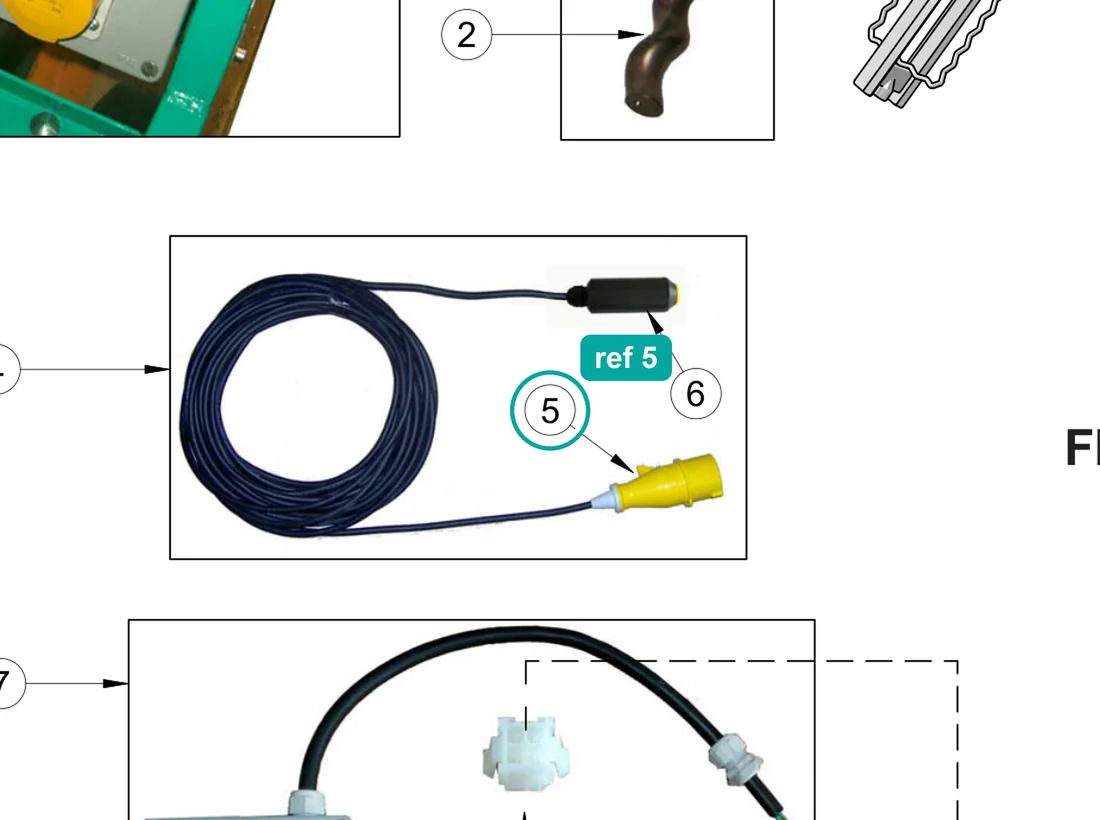

Koine 4 Self-Levelling Kit (1107091), exploded view with reference numbers
IMER Koine 4 · Drawing 9, Self-Levelling Kit (1107091). Select a number on the drawing to find its row.
Koine 4 — Self-Levelling Kit (1107091), parts list
RefPart no.NamePrice
11107028Stator D8-1.5 CB73Not sold onlineAsk a parts specialist
21107031Rotor D8-1.5 ECO MonoIn stock, $279.00
33225400Mixer for Self-Levelling MaterialsNot sold onlineAsk a parts specialist
41107545Remote ControlNot sold onlineAsk a parts specialist
53227170Plug 3P+E 110V 16A IP44In stock, $83.00
63230533Complete SwitchIn stock, $316.00
73225366Electrical Equipment KitIn stock, $780.00

04Specifications

Part details

Part number
3227170(3227-170)
Brand
IMER (genuine OEM)
Condition
New
Assembly
Self-Levelling Kit (1107091)
Fits
4 machines

The 3P+T 110V 16A IP44 plug is a genuine IMER OEM part, part number 3227170.

The IMER parts books list it on four machines: the Koine 4 in the Self-Levelling Kit (1107091), the Small 50 in the Vibrating Screen (Old Castle) assembly, the Step-Up 120 in the Injection Kit (1107575) and the Prestige 300 in the Injection Kit (1107082). It was previously sold here as the Small 50 remote cable connector.
