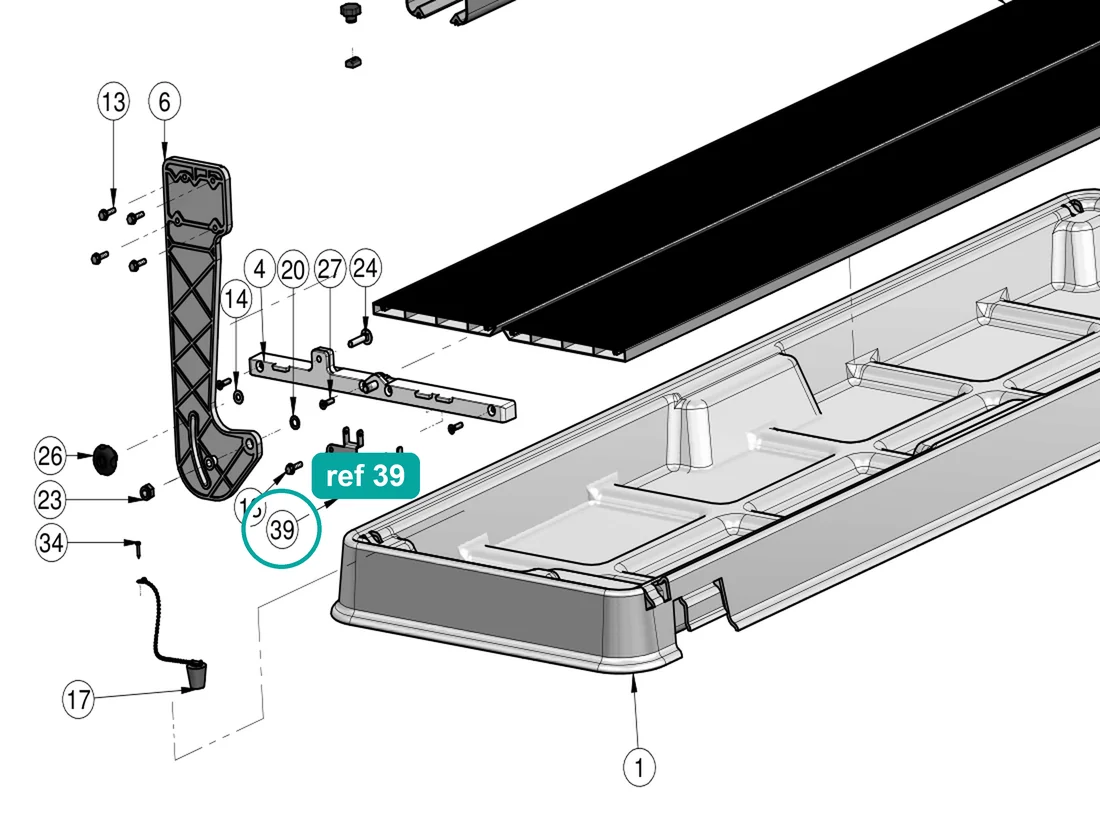

Bracket (ref 39) highlighted on an IMER parts-book drawing – part 3226949

01Where it fits

Where this part sits on your machine

Also on this drawing

All 33 parts on Drawing 1.5, Machine Structure (Combi 250/1500 VA)
  • 13
    Bolt TEFR 6×25 z

    3210099

    $10.00In stock

  • 34
    Bolt TC 6954 3.5×19

    2222449

    $10.00In stock

  • 23
    Self-locking nut M10

    2223920

    $10.00In stock

  • 14
    Washer D.8,4×17×1,5

    3210576

    $10.00In stock

  • 20
    Washer D.10,5×17×1,5

    3226087

    $10.00In stock

  • 4
    Rear side

    3226070

    $58.00In stock

02Fits

Fits these machines

2 machines · 1 IMER parts book

From IMER parts book 3227118 r14 (2018-09).

03Where it sits

Ref 39 on the Combicut 250/1500 VA drawing

Open full diagram →
Combicut 250/1500 VA — Machine Structure (Combi 250/1500 VA), parts list
RefPart no.NamePrice
13234825Tank CM250/1500 VAIn stock, $577.00
23234826R.H. Surface CM250/1500 VAIn stock, $252.00
33234827L.H. Surface CM250/1500 VAIn stock, $331.00
43226070Rear SideIn stock, $58.00
53226069Front SideIn stock, $58.00
63226359Rear ArmIn stock, $92.00
73226357Front ArmIn stock, $92.00
83234828Slideway CM250/1500 VAIn stock, $606.00
93226073Right FenceIn stock, $48.00
103226074Left FenceIn stock, $48.00
112222016Bolt TE 5739 M6x20 ZRequest price
123210071T-NutIn stock, $10.00
133210099Bolt TEFR 6x25 ZIn stock, $10.00
143210576Washer D.8,4x17x1,5In stock, $10.00
153225750Washer D.6x18 ZSame code is listed as Bolt TEFR 6x10 in Tav. 1In stock, $10.00
162224529Nut 7474 M5Same code is listed as Washer D.5x10 elsewhereRequest price
172235429CapRequest price
182222545Bolt TCEI 5931 M6x30In stock, $10.00
193204865Knob M6In stock, $10.00
203226087Washer D.10,5x17x1,5In stock, $10.00
213226088BushingIn stock, $10.00
223236632BracketIn stock, $41.00
232223920Nut 7474 M10In stock, $10.00
243226747Bolt TTDE 5732 8x40In stock, $10.00
253232981Millimetred Strip CM250/1500 VAIn stock, $32.00
262284866Knob M8In stock, $10.00
272222584Bolt TSPEI 5933 M6x25In stock, $10.00
282224529Washer D.5x10 ZRequest price
293236630Cable Holder Chain CM250/1500 VAIn stock, $91.00
303209797Bolt M5x16 ZIn stock, $10.00
313236633Chain GuideIn stock, $60.00
323236631Chain AttachmentIn stock, $20.00
342222449Bolt TC 6954 3.5x19In stock, $10.00
393226949BracketIn stock, $54.00

04Specifications

Part details

Part number
3226949(3226-949)
Brand
IMER (genuine OEM)
Condition
New
Assembly
Machine Structure (Combi 250/1000 VA)
Fits
2 machines

This is genuine IMER part number 3226949. The official IMER parts books list it as "Bracket" and show it for the IMER Combicut 250/1000 VA and Combicut 250/1500 VA.

Parts-book listings: Combicut 250/1000 VA and Combicut 250/1500 VA, table 1 (Machine Structure (Combi 250/1000 VA)), ref 32; Combicut 250/1000 VA and Combicut 250/1500 VA, table 1.5 (Machine Structure (Combi 250/1500 VA)), ref 39; Combicut 250/1000 VA and Combicut 250/1500 VA, table COD.1188159 (Water Pump Bracket Group), ref 1.

Check that the part number on your old part or in your machine's parts list matches 3226949 before ordering, or contact us with your machine's model and serial number.
