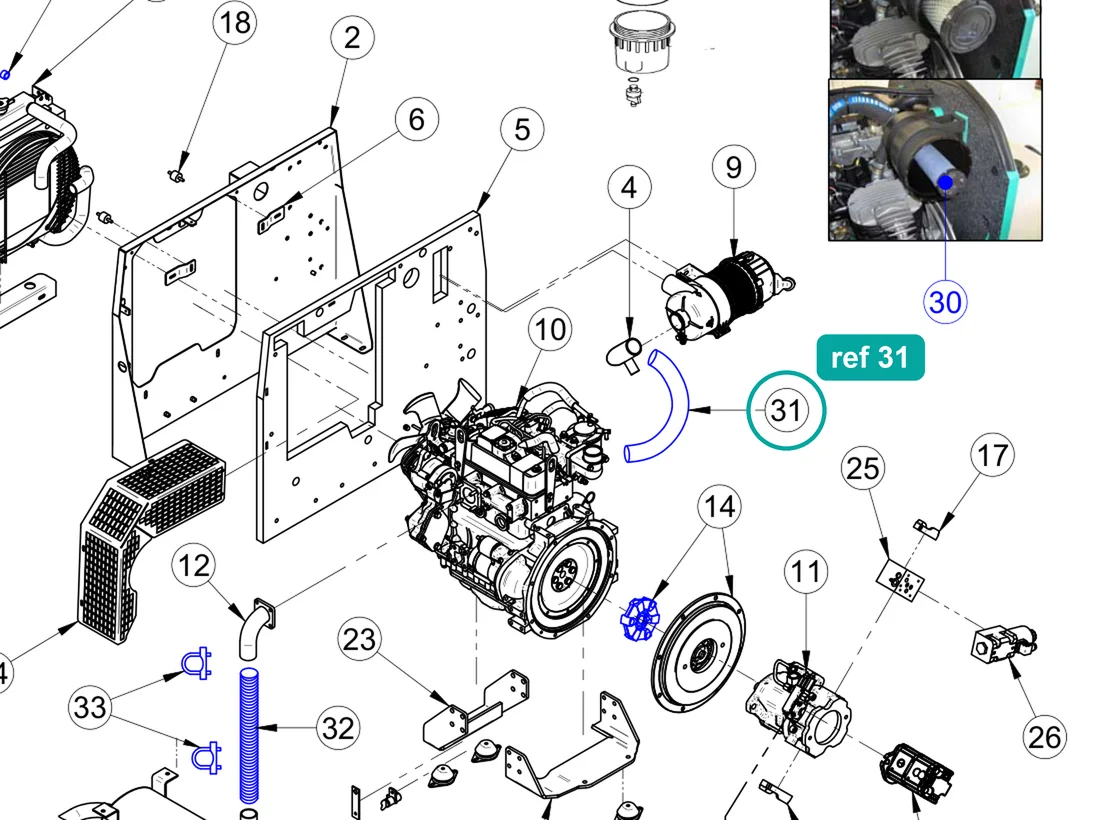

Ref 31 on the Booster 15 drawing
04Specifications
Part details
This is genuine IMER part number 3225679. The official IMER parts books list it as "Diesel Engine Suction Pipe Int. Diam 51 L.330mm" and show it for the IMER Booster 15 and Prestige 300.
Parts-book listings: Prestige 300, table 6 (Pneumatic Circuit), ref 36; Booster 15, table 4 (Engine and Hydraulic Pump Assembly), ref 31.
Check that the part number on your old part or in your machine's parts list matches 3225679 before ordering, or contact us with your machine's model and serial number.
05Used with
Often replaced together
Wear parts next to it on the same drawing
06Documents
Parts books
Answers
Questions about the machines it fits
- My Booster 15 concrete pump has lost output or pressure. What are the causes?
- When and how do I adjust the S valve on a Booster 15?
- The diesel engine on my Booster 15 will not start. What should I check?
- How much grout do I need to prime the line on a Booster 15, and what should I check before starting?
07Shipping & returns
Shipped from the USA
Fit check
Not sure it fits?
Send us the model and serial number from the machine’s serial plate, or a photo of it. A parts specialist checks the fit against the IMER parts books before the part ships.
