IMER Koine 4 parts book · Drawing 3

Ref 14
Gauge D.63 0-10 bar 1/4" m. (ref 14) on the IMER Koine 4 Water Circuit (3223430 400V/50Hz / 3231677 400V/60Hz) drawing
Koine 4 parts book · Drawing 3, Water Circuit (3223430 400V/50Hz / 3231677 400V/60Hz) · Ref 14 · Open full diagram

01Where it fits

Where this part sits on your machine

  • Gauge D.63 0-10 bar 1/4" m., ref 14, on the IMER Koine 4 drawing

    Drawing 3 · Ref 14

    IMER Koine 4

    Water Circuit (3223430 400V/50Hz / 3231677 400V/60Hz)

    View on the drawing

  • Drawing 3-1 · Ref 14

    IMER Koine 4

    Water Circuit (3236063 220V/60Hz / 3236484 400V/50Hz)

    View on the drawing

Also on this drawing

All 51 parts on Drawing 3, Water Circuit (3223430 400V/50Hz / 3231677 400V/60Hz)

02Fits

Fits these machines

1 machine · 1 IMER parts book

From IMER parts book 3223425 r18 (2018-09).

03Where it sits

Ref 14 on the Koine 4 drawing

Open full diagram →

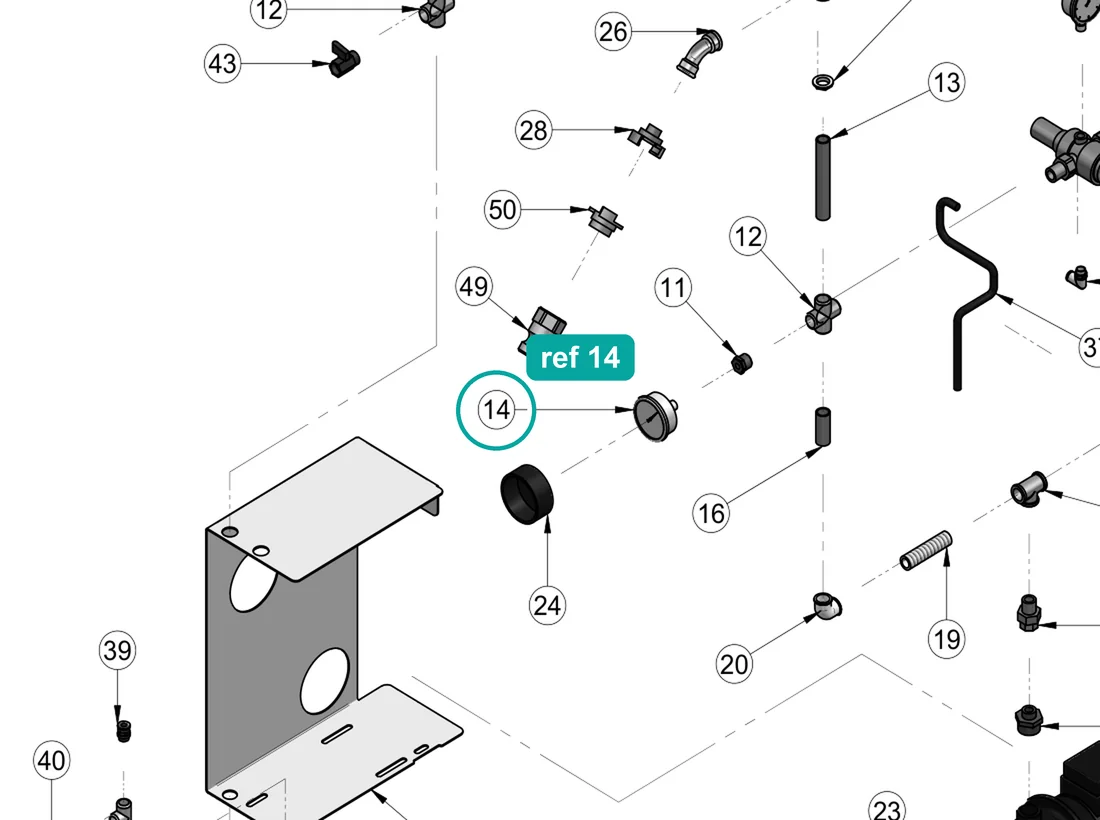

Koine 4 Water Circuit (3223430 400V/50Hz / 3231677 400V/60Hz), exploded view with reference numbers
IMER Koine 4 · Drawing 3, Water Circuit (3223430 400V/50Hz / 3231677 400V/60Hz). Select a number on the drawing to find its row.
Koine 4 — Water Circuit (3223430 400V/50Hz / 3231677 400V/60Hz), parts list
RefPart no.NamePrice
13223729Water System Protection PlateIn stock, $114.00
23223612Male Plug Brass M.3/8"In stock, $10.00
33223730Ring Nut 1/2"In stock, $10.00
43223610Male Plug Brass 1/2"In stock, $10.00
53223639FilterIn stock, $18.00
63223697Quick Coupling GasketIn stock, $10.00
73226173Pressure Switch ProtectionIn stock, $10.00
83223619Reduced Nipple 1" - 1/2"In stock, $33.00
93224597PumpSerial 1106005In stock, $1,483.00
93231670PumpSerial 1106003-1106112In stock, $1,093.00
103223630Pressure Switch GP600 1/4 Gc 1-5 BarIn stock, $45.00
113223609Reduction 1/2" M. - 1/4" F.In stock, $10.00
123223606Connector F.F.F.F. 1/2"In stock, $55.00
133223611Branch 1/2" L.130mmIn stock, $76.00
143223625Gauge D.63 0-10 Bar 1/4" M.In stock, $50.00
153223959Nipple 1/8" M.In stock, $61.00
163223632Branch 1/2" L.50mmIn stock, $28.00
173223620Mini Ball Valve F.F. 1/8"In stock, $26.00
183223618Inlet 1/2"Not sold onlineAsk a parts specialist
193223957Branch 1/2" L.85mmIn stock, $48.00
20322416890° Elbow Fitting 1/2" F.F. BrassIn stock, $24.00
213223636Quick Connector 3/4" F.In stock, $19.00
22322417145° Bend 3/4" M.F. Cast IronIn stock, $33.00
233224170Reduced Nipple 1" - 3/4"In stock, $18.00
243224176Rubber CoverIn stock, $36.00
253223617T Connector F.F.F. 1/2"Not sold onlineAsk a parts specialist
26322420545° Bend 1/2" M.F. Cast IronIn stock, $29.00
273223628Angle Valve 1/2" M-FIn stock, $98.00
283224203Quick Connector 1/2" M.In stock, $19.00
293223629Pressure ReducerIn stock, $336.00
303223624Air Connector 90° Swivel 1/4" Cyl. with O-RingIn stock, $37.00
313223626Gauge D.63 0-4 Bar 1/4" M.In stock, $46.00
323223631Solenoid Valve L182-B14-ZB10A 1/2"In stock, $133.00
33322363790° Elbow Fitting M.F. 1/2" BrassIn stock, $41.00
343223613Hose Fitting 1/2" M. x 13In stock, $17.00
353223634Water Hose L.500mm D.13 15 BarIn stock, $29.00
363223638Ring Clip D. 20-23In stock, $10.00
371272701Air Hose D. 6/8 L.400mmIn stock, $23.00
383223616T Connector F.F.F. 3/8"In stock, $24.00
393223623Air Connector 3/8" StraightIn stock, $22.00
403223621Mini Ball Valve M.F. 3/8"In stock, $24.00
413224578Flow MeterNot sold onlineAsk a parts specialist
423223627Angle Valve Micrometric 1/2"In stock, $248.00
433223622Mini Ball Valve M.F. 1/2"In stock, $28.00
443223958Branch 1/2" L.70mmIn stock, $41.00
453223607Nipple3223430In stock, $10.00
463223615Quick Connector D.13In stock, $11.00
473223635Water HoseIn stock, $22.00
483224169Hose Fitting 1/2" F. x 13In stock, $19.00
493223721Cam CouplingNot sold onlineAsk a parts specialist
503223722Quick ConnectorIn stock, $19.00
513223629FilterSame part number as ref 29 (pressure reducer) as printedIn stock, $336.00

04Specifications

Part details

Part number
3223625(3223-625)
Brand
IMER (genuine OEM)
Condition
New
Assembly
Water Circuit (3223430 400V/50Hz / 3231677 400V/60Hz)
Fits
1 machine

This gauge D.63 0-10 bar 1/4" M. is a genuine IMER part, part number 3223625.

The IMER Koine 4 parts book lists it in the water circuit, ref. 14, in both versions of that table: TAV.3 (water circuits 3223430 400V/50Hz and 3231677 400V/60Hz) and TAV.3-1 (3236063 220V/60Hz and 3236484 400V/50Hz).

Check that the part number in your machine's parts list matches 3223625 before ordering, or contact us with your machine's model and serial number.
