01Where it fits
Where this part sits on your machine
Also on this drawing
All 14 parts on Drawing 11, Koine 4 Housing (1107500)02Fits
Fits these machines
1 machine · 1 IMER parts book
From IMER parts book 3223425 r18 (2018-09).
03Where it sits

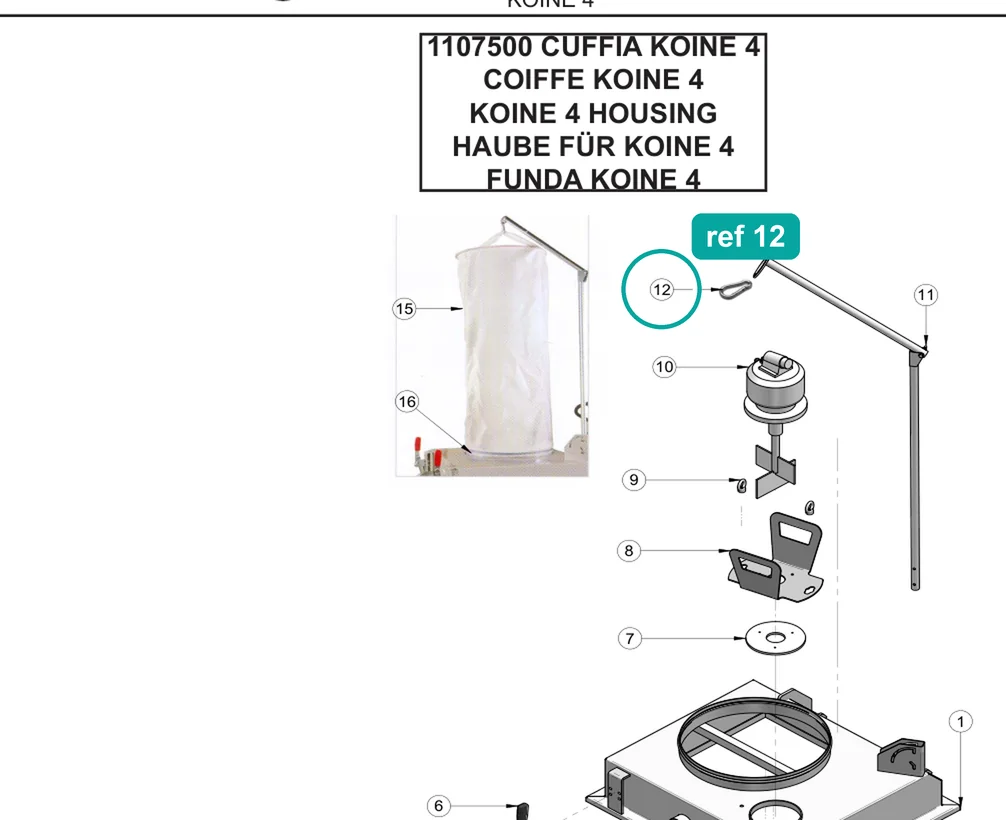

Ref 12 on the Koine 4 drawing
04Specifications
Part details
This is genuine IMER part number 3213785. The official IMER parts books list it as "Snap Hook" and show it for the IMER Koine 4.
Parts-book listings: Koine 4, table 11 (Koine 4 Housing (1107500)), ref 12; Koine 4, table 11-2 (Koine 4 Double Housing), ref 12.
Check that the part number on your old part or in your machine's parts list matches 3213785 before ordering, or contact us with your machine's model and serial number.
05Documents
Parts books
Guides
Guides for this part
Maintenance
IMER Mixer and Pump Cleaning, Storage and Winter Care
End-of-shift cleaning, freeze draining and storage steps from the IMER manuals for the Mix 750, Mix 120 Plus, Step-Up 120, Small 50, Koine 4 and more.
5 min read
Answers
Questions about the machines it fits
06Shipping & returns
Shipped from the USA
Fit check
Not sure it fits?
Send us the model and serial number from the machine’s serial plate, or a photo of it. A parts specialist checks the fit against the IMER parts books before the part ships.
