This M10 eyebolt is a genuine IMER part, part number 3209356.

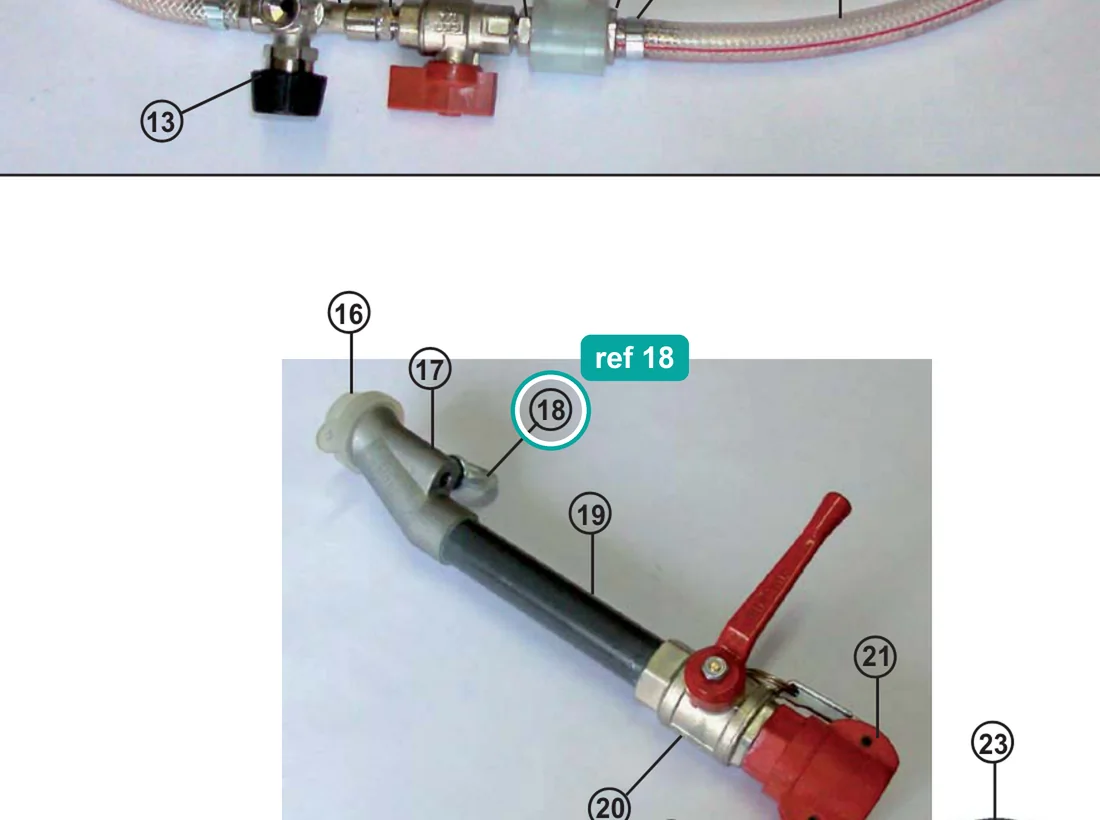

The IMER parts books list it in four pumps: the Small 50 machine structure (TAV.1, ref. 25), the Koine 4 spray jet (TAV.6, ref. 3), the Step-Up 120 spray jet (TAV.10.2, ref. 18) and the Prestige 300 spray lance (TAV.12, ref. 18). The Koine 4, Step-Up 120 and Prestige 300 books give the English description as "screw M.10"; the part number is the same.
Check that the part number in your machine's parts list matches 3209356 before ordering, or contact us with your machine's model and serial number.
