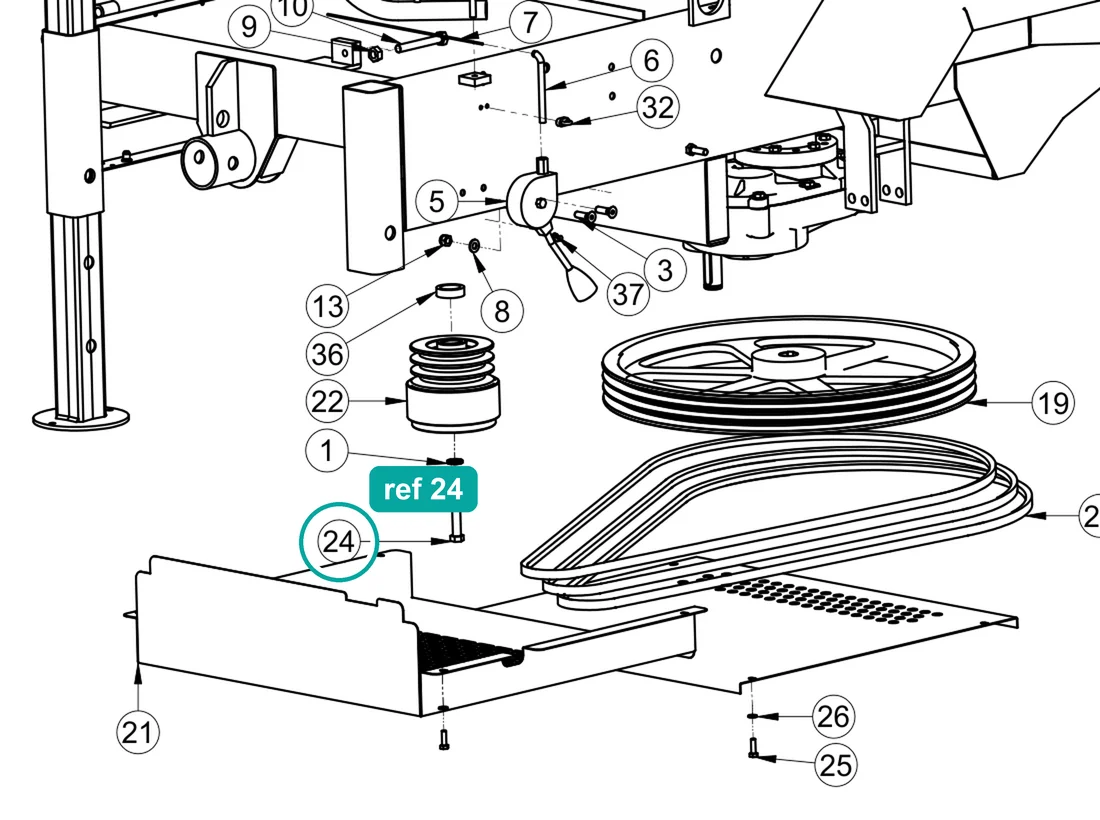

Screw 7/16×70 z (ref 24) highlighted on the IMER Mix 360 parts diagram, Motor Assembly Honda - Hatz – part 2221997

01Where it fits

Where this part sits on your machine

  • Drawing 8 · Ref 24

    IMER Mix 360

    Motor Assembly Honda - Hatz

    View on the drawing

Also on this drawing

All 41 parts on Drawing 8, Motor Assembly Honda - Hatz
  • 1
    Washer DEV C72 Ø10 z

    2224910

    $10.00In stock

  • 22
    Clutch

    2289357

    $973.00In stock

  • 36
    Spacer

    2237748

    $39.00In stock

  • 13
    Self-locking nut M8

    2223923

    $10.00In stock

  • 21
    Protection

    3211047

    $140.00In stock

  • 37
    Clamp

    2225796

    $40.00In stock

02Fits

Fits these machines

1 machine · 1 IMER parts book

From IMER parts book 3211378 r02 (2018-09).

03Where it sits

Ref 24 on the Mix 360 drawing

Open full diagram →
Mix 360 — Motor Assembly Honda - Hatz, parts list
RefPart no.NamePrice
12224910Washer DEV C72 Ø10 ZIn stock, $10.00
22223920Self-Locking Nut 7474 M10In stock, $10.00
33211077Bolt UNI 5933 M8x30Request price
52284805HandleRequest price
62284398Sheath and FerruleIn stock, $29.00
72212120Accelerator CableIn stock, $10.00
82224140Washer Ø8x18In stock, $10.00
92223650Nut UNI 5588 M10 ZIn stock, $10.00
103211076Bolt UNI 5739 M10x80 ZRequest price
113211057Engine Mounting PlateRequest price
122222088Screw UNI 5737 M8x40Request price
132223923Self-Locking Nut M8In stock, $10.00
143211406Engine Honda GXV340Request price
143230277Engine Hatz 1B40V 1"Request price
152222098Bolt UNI 5739 M10x40Request price
162224260Washer UNI 6593 Ø10x30 ZRequest price
172224940Washer DEV C72 Ø8 ZIn stock, $10.00
182221994BoltIn stock, $10.00
193211428Pulley 3A DP=500 F24In stock, $649.00
203211710Belt A 90In stock, $76.00
213211047ProtectionIn stock, $140.00
222289357ClutchIn stock, $973.00
242221997Screw 7/16x70 ZIn stock, $11.00
252222016Bolt UNI 5739 M6x20 ZRequest price
262224530Washer Ø6x12.5 ZIn stock, $10.00
272229327Key 4x6.5 UNI 6606In stock, $10.00
283231573Limit SwitchIn stock, $186.00
293211767SupportIn stock, $106.00
303211096Sheath Grommet PG 13.5Request price
313211067PinIn stock, $63.00
322239400Spring CatchIn stock, $10.00
333236412Splash GuardIn stock, $44.00
342224531Washer 6x18 ZIn stock, $10.00
362237748SpacerIn stock, $39.00
372225796ClampIn stock, $40.00
383211075Bolt ISO 7380 M6x40Request price
393211064SupportIn stock, $57.00
402222021Bolt M6x16 ZIn stock, $10.00
413231562SpannerIn stock, $19.00
422222581BoltIn stock, $10.00
433211391SheathIn stock, $28.00

04Specifications

Part details

Part number
2221997(2221-997)
Brand
IMER (genuine OEM)
Condition
New
Assembly
Motor Assembly Honda - Hatz
Fits
1 machine

This is genuine IMER part number 2221997. The official IMER parts books list it as "Screw 7/16x70 Z" and show it for the IMER Mix 360.

Parts-book listings: Mix 360, table 8 (Motor Assembly Honda - Hatz), ref 24.

Check that the part number on your old part or in your machine's parts list matches 2221997 before ordering, or contact us with your machine's model and serial number.
