Ref 5 on the Koine 4 drawing
04Specifications
Part details

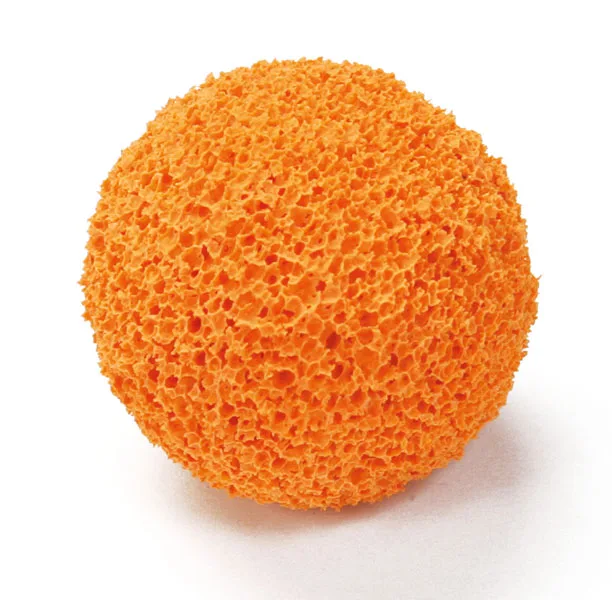

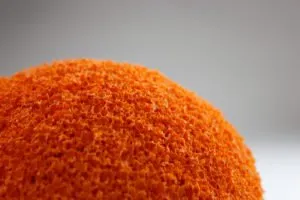

The Hose Cleaning Sponge Balls 1107519 are a genuine IMER OEM part for 25 mm (1") material hose, supplied as a pack of 10.
The IMER parts books list this pack (sponge size D30) for four machines. It is a standard supply accessory on the Koine 4 and a standard accessory on the Prestige 300, where it is also part of Injection Kit 1107082. On the Small 50 it is listed under Accessories and in the Traditional Pre-Mixed Mortar Kit (1107005), Leveller and Grout Kit (1107010), Paint Kit (1107009) and Injection Kit (1107006). On the Step-Up 120 it is part of Injection Kit 1107575.
They are material hose cleaning sponge balls for 25 mm (1") hose.
