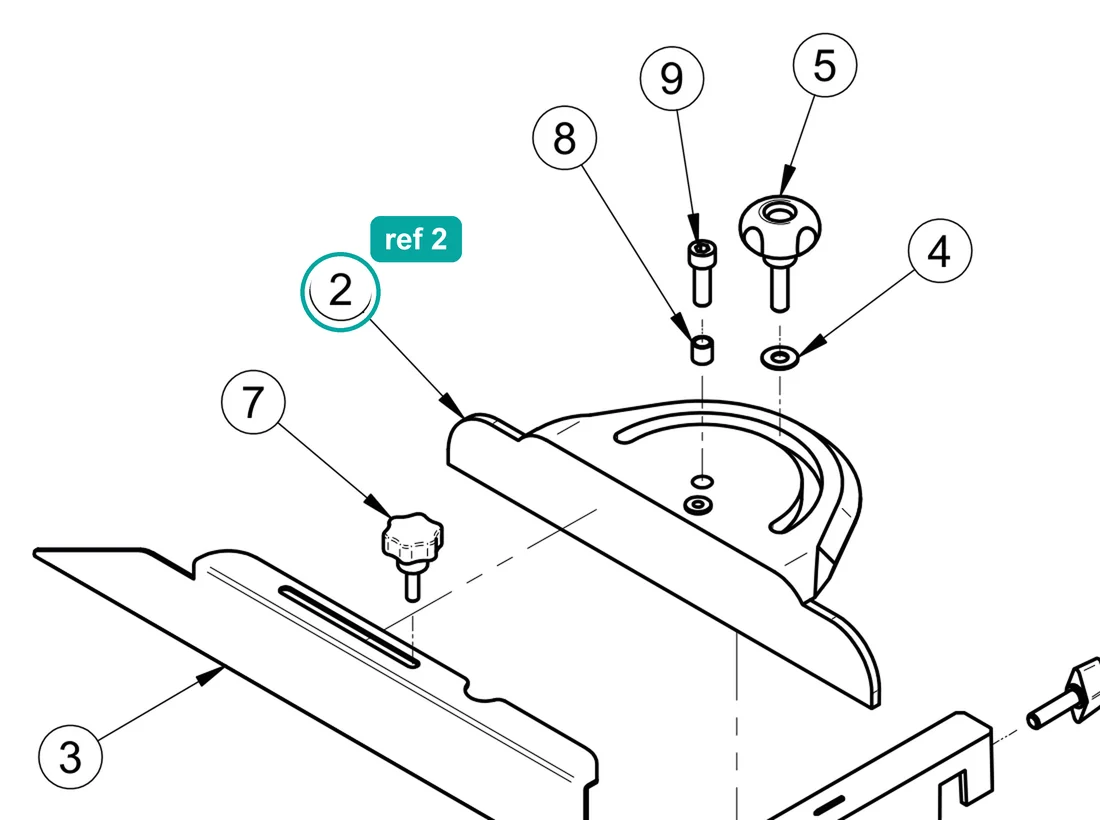

Goniometer (ref 2) highlighted on an IMER parts-book drawing – part 3230616

01Where it fits

Where this part sits on your machine

Also on this drawing

All 10 parts on Drawing 3, Complete Goniometer
  • 7
    Handwheel M6×20

    3223279

    $10.00In stock

  • 9
    Bolt TCEI 5931 M8×25

    2222511

    $10.00In stock

  • 5
    Handwheel M8×30

    3207939

    $10.00In stock

  • 3
    Sliding rod

    3226360

    $62.00In stock

  • 4
    Washer M8

    2224140

    $10.00In stock

  • 1
    Goniometer support

    3230617

    $79.00In stock

02Fits

Fits these machines

4 machines · 3 IMER parts books

From IMER parts books Combicut 250 VA, 3227118 r14 (2018-09), 3231790 r07 (2018-09).

03Where it sits

Ref 2 on the Combicut 250 VA drawing

Open full diagram →
Combicut 250 VA — Complete Goniometer, parts list
RefPart no.NamePrice
13230617Goniometer SupportIn stock, $79.00
23230616GoniometerIn stock, $237.00
33226360Sliding RodIn stock, $62.00
42224140Washer 6593 D.8x18In stock, $10.00
53207939Handwheel M8x30In stock, $10.00
63211381Handwheel M8x30In stock, $10.00
73223279Handwheel M6x20In stock, $10.00
83230638SpacerRequest price
92222511Bolt TCEI 5931 M8x25In stock, $10.00
103231271BarRequest price

04Specifications

Part details

Part number
3230616(3230-616)
Brand
IMER (genuine OEM)
Condition
New
Assembly
Complete Goniometer
Fits
4 machines

This is genuine IMER part number 3230616. The official IMER parts books list it as "Goniometer" and show it for the IMER Combicut 350 iPower, Combicut 250 VA, Combicut 250/1000 VA and 1 more models.

Parts-book listings: Combicut 250/1000 VA and Combicut 250/1500 VA, table 3 (Complete Goniometer), ref 2; Combicut 350 iPower, table 1 (Machine Structure), ref 31; Combicut 250 VA, table 3 (Complete Goniometer), ref 2.

Check that the part number on your old part or in your machine's parts list matches 3230616 before ordering, or contact us with your machine's model and serial number.
