03Specifications
Part details

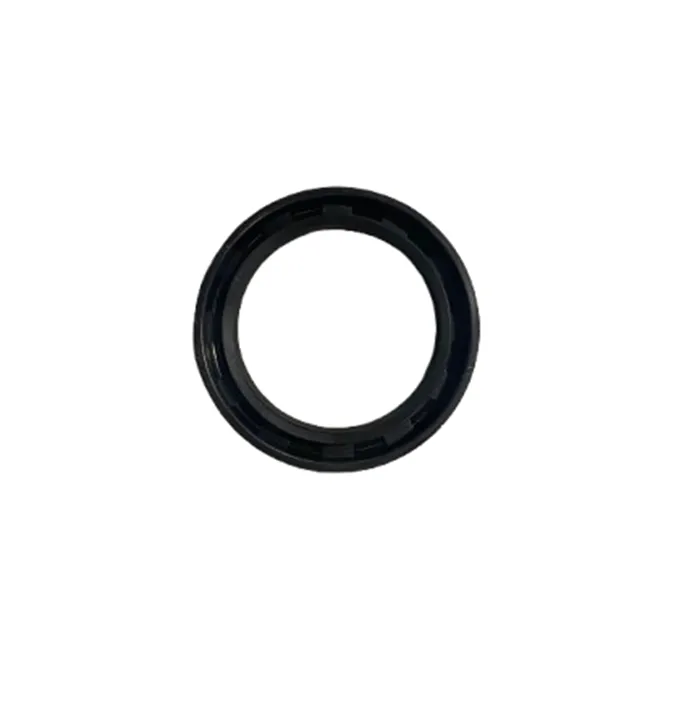

This gearmotor oil seal is a genuine IMER OEM part, part number 3224237.
The IMER Small 50 parts book lists it as the oil seal in Table 1, Machine Structure (ref. 23); it is the gearmotor seal of the Small 50.
Seal dimensions are not listed, so confirm part number 3224237 against your Small 50 parts book before ordering.
