Engine support – genuine IMER part 3230255

01Where it fits

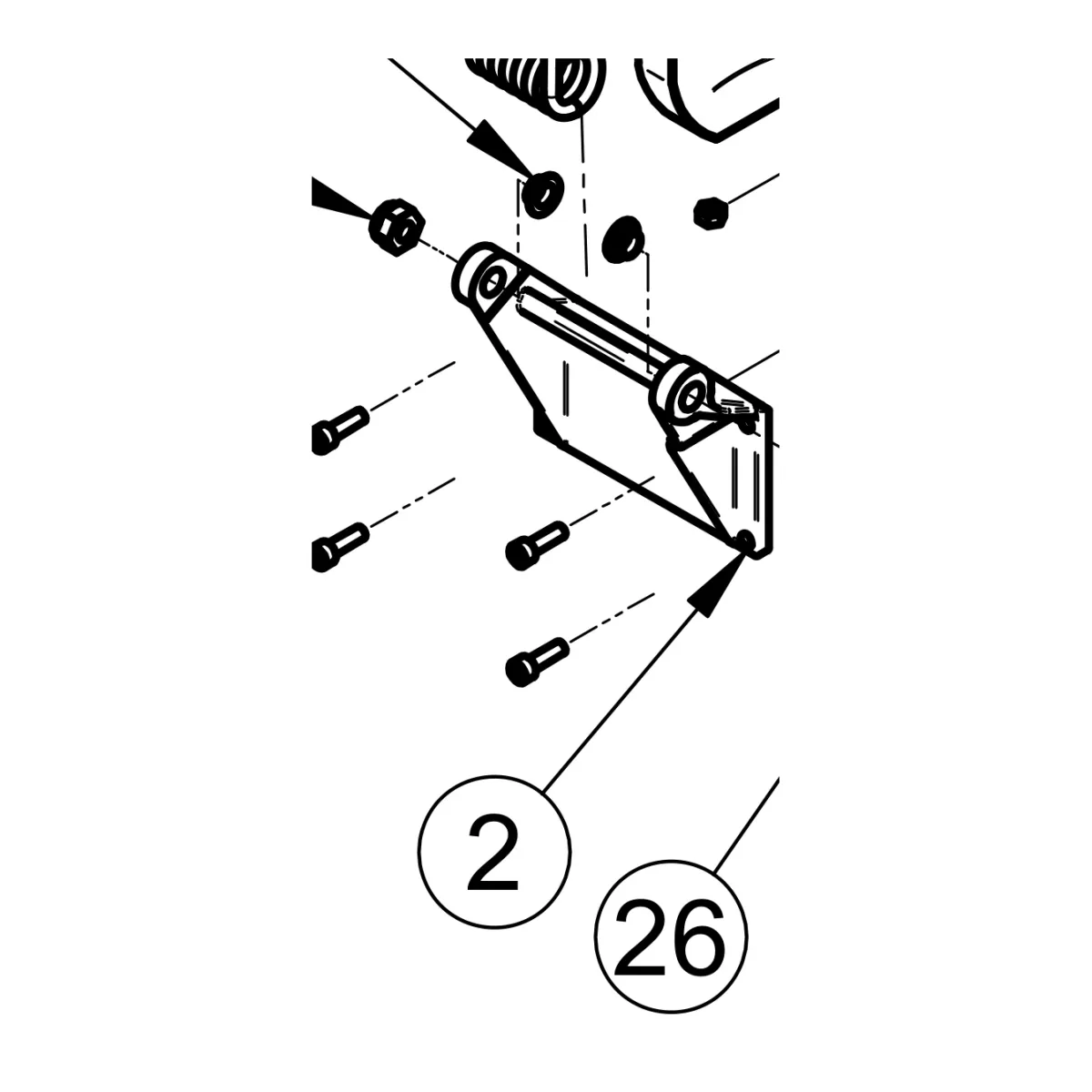

Where this part sits on your machine

Also on this drawing

All 27 parts on Drawing 4, Blade Protection Motor Assembly
  • 15
    Bolt TE 8.8 5737 M4×20

    2222001

    $10.00In stock

  • 10
    Washer

    2224535

    $10.00In stock

  • 21
    Bolt TCEI 5931 M6×25

    2222541

    $10.00In stock

  • 19
    Spray shield

    3210050

    $28.00In stock

  • 17
    Self-locking nut M10

    2223920

    $10.00In stock

  • 18
    Nut 7473 M4

    2223926

    $10.00In stock

02Fits

Fits these machines

4 machines · 3 IMER parts books

From IMER parts books 3226123 r07 (2018-09), Combicut 250 VA, 3227118 r14 (2018-09).

03Where it sits

Ref 2 on the Combicut 200 VA drawing

Open full diagram →
Combicut 200 VA — Blade Protection Motor Assembly, parts list
RefPart no.NamePrice
13228553MotorRequest price
23230255Motor SupportIn stock, $61.00
33210087SpringIn stock, $27.00
43226079Blade GuardIn stock, $29.00
53210043Spacer BracketIn stock, $22.00
63210238Inner FlangeIn stock, $117.00
71193849BladeRequest price
83210046Outer FlangeIn stock, $58.00
93226080Blade GuardIn stock, $26.00
102224535WasherIn stock, $10.00
112222587Bolt TSPEI 5933 M8x20In stock, $10.00
123204399Bolt TCEI 5931 M5x25In stock, $10.00
133207884CockIn stock, $11.00
143209060Bolt TE 8.8 5737 M6x35In stock, $10.00
152222001Bolt TE 8.8 5737 M4x20In stock, $10.00
162223352Nut 5588 D.5In stock, $10.00
172223920Nut 7474 M10In stock, $10.00
182223926Nut 7473 M4In stock, $10.00
193210050Spray ShieldIn stock, $28.00
203210053Nut 5588 M12 Z SXRequest price
212222541Bolt TCEI 5931 6x25In stock, $10.00
222224380Washer 6592 D.12x25In stock, $10.00
232223280Nut 5588 M6In stock, $10.00
242223924Nut 7473 M6In stock, $10.00
253230251Bushing GFM-1012-6In stock, $10.00
263230250PinRequest price
273230644Fan CoverIn stock, $31.00

04Specifications

Part details

Part number
3230255(3230-255)
Brand
IMER (genuine OEM)
Condition
New
Assembly
Blade Protection Motor Assembly
Fits
4 machines

This engine support is a genuine IMER part, part number 3230255. The IMER parts books list it as ref. 2, Engine Support, in Tav. 4, Blade Protection Motor Assembly, of the Combicut 200 VA, the Combicut 250 VA and the Combicut 250/1000 VA and 250/1500 VA. In the same table, ref. 1 is the motor: 3230037 on the Combicut 250 models and 3228553 on the Combicut 200 VA.

Our store also lists this part as a motor bracket.

Check part number 3230255 against your machine's parts list before you order.
