IMER Combicut 250 VA parts book · Drawing 5

Ref 26

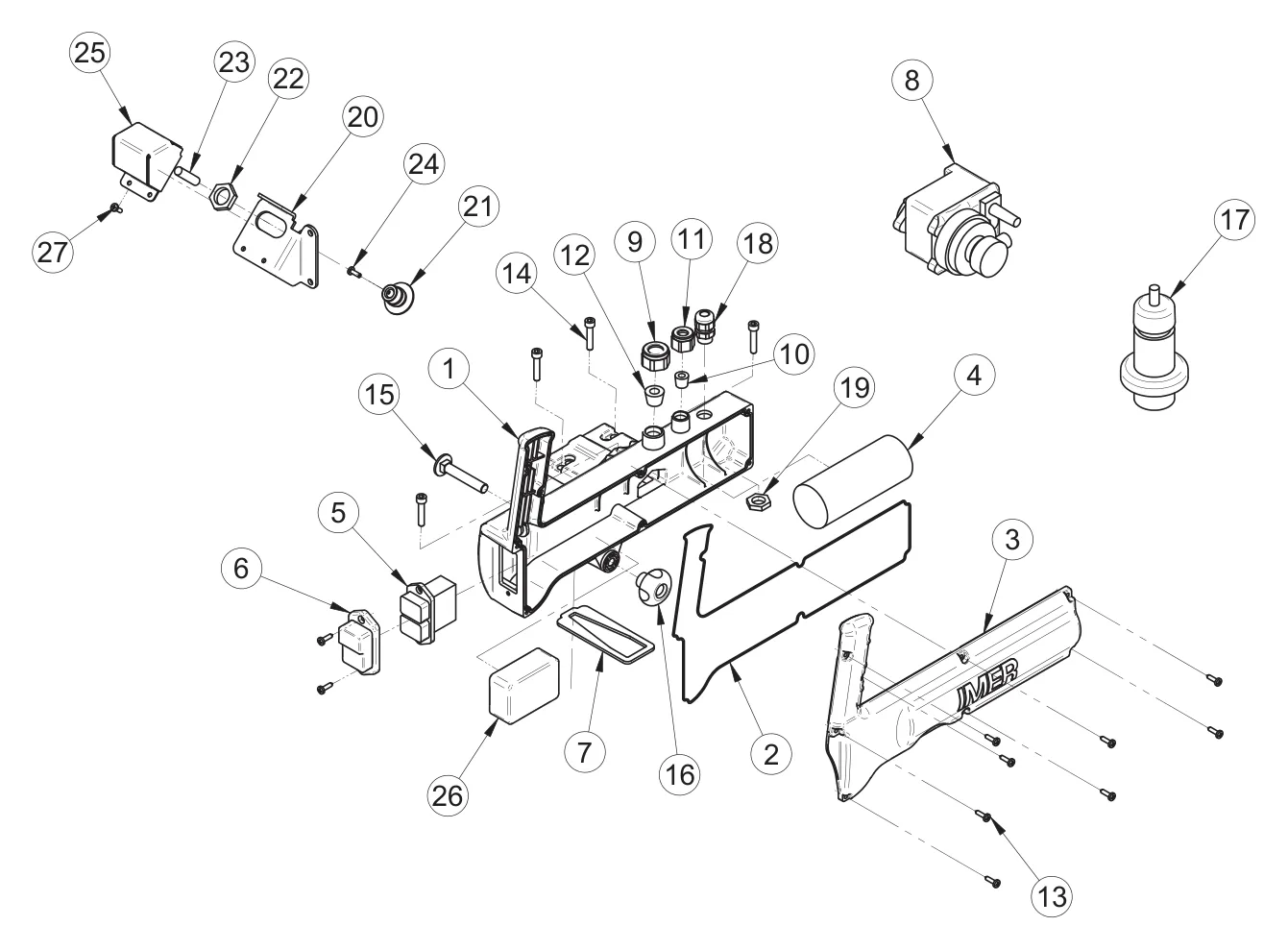

Power supply (ref 26) on the IMER Combicut 250 VA Electric Panel drawing
Combicut 250 VA parts book · Drawing 5, Electric Panel · Ref 26 · Open full diagram

01Where it fits

Where this part sits on your machine

Also on this drawing

All 27 parts on Drawing 5, Electric Panel
  • 7
    Gasket

    3225596

    $10.00In stock

  • 16
    Knob M8

    2284866

    $10.00In stock

  • 5
    Red/green push button on/off switch 115V

    3210233

    $91.00In stock

  • 2
    Gasket

    3210114

    $10.00In stock

  • 15
    Bolt TTCQ 5732-65 M8×60

    3210096

    $10.00In stock

  • 1
    Electric panel junction box

    3227467

    $81.00In stock

02Fits

Fits these machines

4 machines · 3 IMER parts books

From IMER parts books Combicut 250 VA, 3227118 r14 (2018-09), 3231790 r07 (2018-09).

03Where it sits

Ref 26 on the Combicut 250 VA drawing

Open full diagram →
Combicut 250 VA Electric Panel, exploded view with reference numbers
IMER Combicut 250 VA · Drawing 5, Electric Panel. Select a number on the drawing to find its row.
Combicut 250 VA — Electric Panel, parts list
RefPart no.NamePrice
13227467Junction BoxIn stock, $81.00
23210114GasketIn stock, $10.00
33210231CoverIn stock, $37.00
43210232CapacitorNot sold onlineAsk a parts specialist
53210233SwitchIn stock, $91.00
63209340Leakage ProtectionNot sold onlineAsk a parts specialist
73225596GasketIn stock, $10.00
83233422Water PumpIn stock, $171.00
93226095Cable Gland Locking Ring PG 16In stock, $10.00
103226101Cable Gland Grommet PG 16In stock, $10.00
113226098Cable Gland Locking Ring PG 11In stock, $10.00
123226100Cable Gland Grommet PG 11In stock, $10.00
133210116Bolt TCTC 4,2x16In stock, $10.00
142222540Bolt TCEI 5931 6x20In stock, $10.00
153210096Bolt TTCQ 5732-65 M8x60In stock, $10.00
162284866Handwheel 180-40-M8In stock, $10.00
173224630Plug with Electric CableIn stock, $78.00
183227508Cable Clamp PG 9In stock, $10.00
193227487Cable Gland Nut PG 9In stock, $10.00
203227481SupportNot sold onlineAsk a parts specialist
213227483Adjustment BlockIn stock, $59.00
223227489Cable Gland Nut M20x1.5In stock, $10.00
233228250LaserIn stock, $49.00
243207155Bolt TC PH 7687 M4x10In stock, $10.00
253227482CoverNot sold onlineAsk a parts specialist
263228251Power SupplyIn stock, $77.00
272222424Bolt TC PH 6954 4.2x9.5In stock, $10.00

04Specifications

Part details

Part number
3228251(3228-251)
Brand
IMER (genuine OEM)
Condition
New
Assembly
Electric Panel
Fits
4 machines

This is genuine IMER part number 3228251. The official IMER parts books list it as "Power Supply" and show it for the IMER Combicut 350 iPower, Combicut 250 VA, Combicut 250/1000 VA and 1 more models.

Parts-book listings: Combicut 250/1000 VA and Combicut 250/1500 VA, table 5 (Electric Panel), ref 26; Combicut 350 iPower, table 7 (Electric Panel), ref 10; Combicut 250 VA, table 5 (Electric Panel), ref 26.

Check that the part number on your old part or in your machine's parts list matches 3228251 before ordering, or contact us with your machine's model and serial number.

05Used with

Often replaced together

Wear parts next to it on the same drawing

06Documents

Parts books

Answers

Questions about the machines it fits

All answers

07Shipping & returns

Shipped from the USA

Shipping & delivery →Returns & warranty →

  • Ships from the USA

    Leaves us in 1–3 business days; ground delivery usually takes 5–7 business days.

  • Flat-rate shipping by size

    Parts ship at a flat rate by size, from $24. IMER machines ship free to commercial addresses in the contiguous US.

  • 30-day returns

    30-day returns on unused items with a return authorization.

Fit check

Not sure it fits?

Send us the model and serial number from the machine’s serial plate, or a photo of it. A parts specialist checks the fit against the IMER parts books before the part ships.
