IMER Combicut 200 VA parts book · Drawing 5

Ref 9

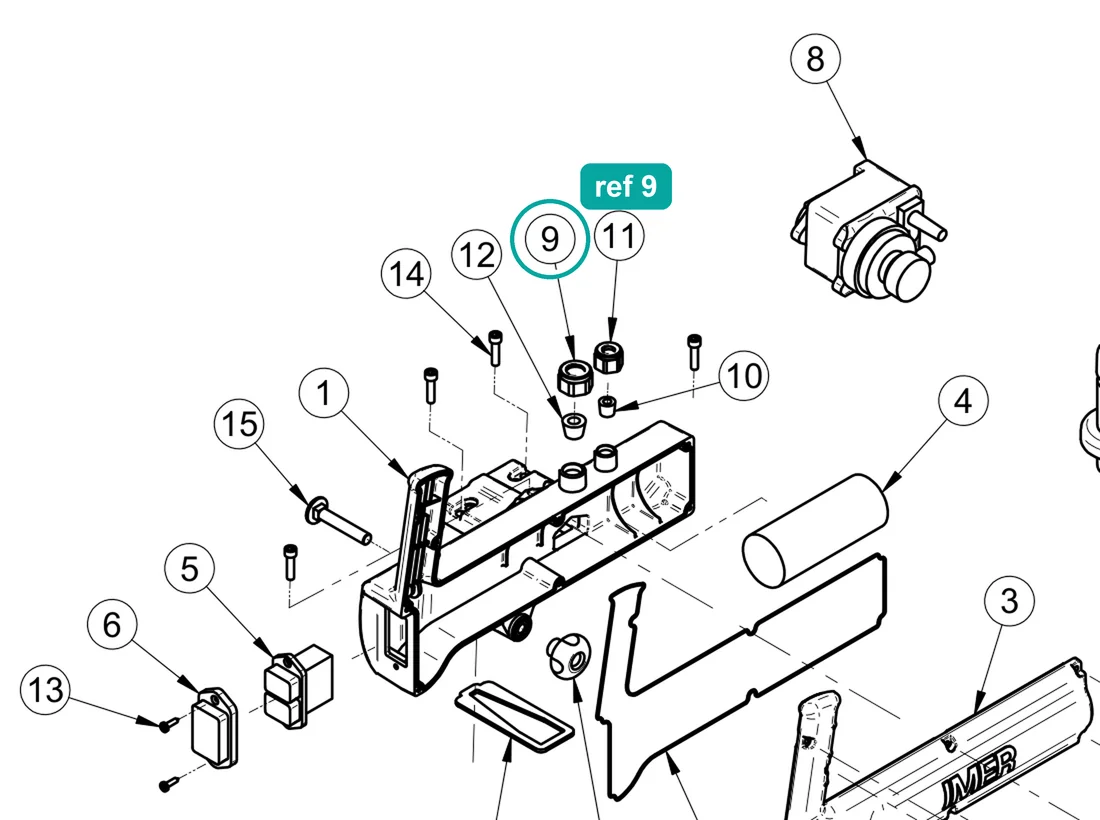

Cable gland locking ring PG 16 (ref 9) on the IMER Combicut 200 VA Electric Panel drawing
Combicut 200 VA parts book · Drawing 5, Electric Panel · Ref 9 · Open full diagram

01Where it fits

Where this part sits on your machine

Also on this drawing

All 17 parts on Drawing 5, Electric Panel

02Fits

Fits these machines

4 machines · 3 IMER parts books

From IMER parts books 3226123 r07 (2018-09), Combicut 250 VA, 3227118 r14 (2018-09).

03Where it sits

Ref 9 on the Combicut 200 VA drawing

Open full diagram →
Combicut 200 VA Electric Panel, exploded view with reference numbers
IMER Combicut 200 VA · Drawing 5, Electric Panel. Select a number on the drawing to find its row.
Combicut 200 VA — Electric Panel, parts list
RefPart no.NamePrice
13210230Junction BoxIn stock, $61.00
23210114GasketIn stock, $10.00
33210231CoverIn stock, $37.00
43210232CapacitorNot sold onlineAsk a parts specialist
53210233SwitchIn stock, $91.00
63209340Leakage ProtectionNot sold onlineAsk a parts specialist
73225596GasketIn stock, $10.00
83210524Water PumpNot sold onlineAsk a parts specialist
93226095Cable Gland Locking Ring PG 16In stock, $10.00
103226101Cable Gland Grommet PG 16In stock, $10.00
113226098Cable Gland Locking Ring PG 11In stock, $10.00
123226100Cable Gland Grommet PG 11In stock, $10.00
133210116Bolt TCTC 4,2x16In stock, $10.00
142222541Bolt TCEI 5931 6x25In stock, $10.00
153210096Bolt TTCQ 5732-65 M8x60In stock, $10.00
162284866Handwheel M8x30In stock, $10.00
173209065Plug With Electric CableNot sold onlineAsk a parts specialist

04Specifications

Part details

Part number
3226095(3226-095)
Brand
IMER (genuine OEM)
Condition
New
Assembly
Electric Panel
Fits
4 machines

This is genuine IMER part number 3226095. The official IMER parts books list it as "Cable Gland Locking Ring PG 16" and show it for the IMER Combicut 200 VA, Combicut 250 VA, Combicut 250/1000 VA and 1 more models.

Parts-book listings: Combicut 200 VA, table 5 (Electric Panel), ref 9; Combicut 250/1000 VA and Combicut 250/1500 VA, table 5 (Electric Panel), ref 9; Combicut 250 VA, table 5 (Electric Panel), ref 9.

Check that the part number on your old part or in your machine's parts list matches 3226095 before ordering, or contact us with your machine's model and serial number.

05Used with

Often replaced together

Wear parts next to it on the same drawing

06Documents

Parts books

Answers

Questions about the machines it fits

All answers

07Shipping & returns

Shipped by IMER USA

Shipping & delivery →Returns & warranty →

  • Ships from IMER USA

    Shipped directly by IMER USA from its US warehouse, within 1–3 business days; ground delivery usually takes 5–7 business days.

  • Flat-rate shipping by size

    Parts ship at a flat rate by size, from $20. IMER machines ship free to commercial addresses in the contiguous US.

  • 30-day returns, restocking fee may apply

    30-day returns on unused items with a return authorization. Non-defective returns: 15% restocking fee (parts), 30% (machines), return freight paid by the buyer. See Returns

Fit check

Not sure it fits?

Send us the model and serial number from the machine’s serial plate, or a photo of it. A parts specialist checks the fit against the IMER parts books before the part ships.
Ask about the fitCall +1 (307) 301-7723
