03Where it sits

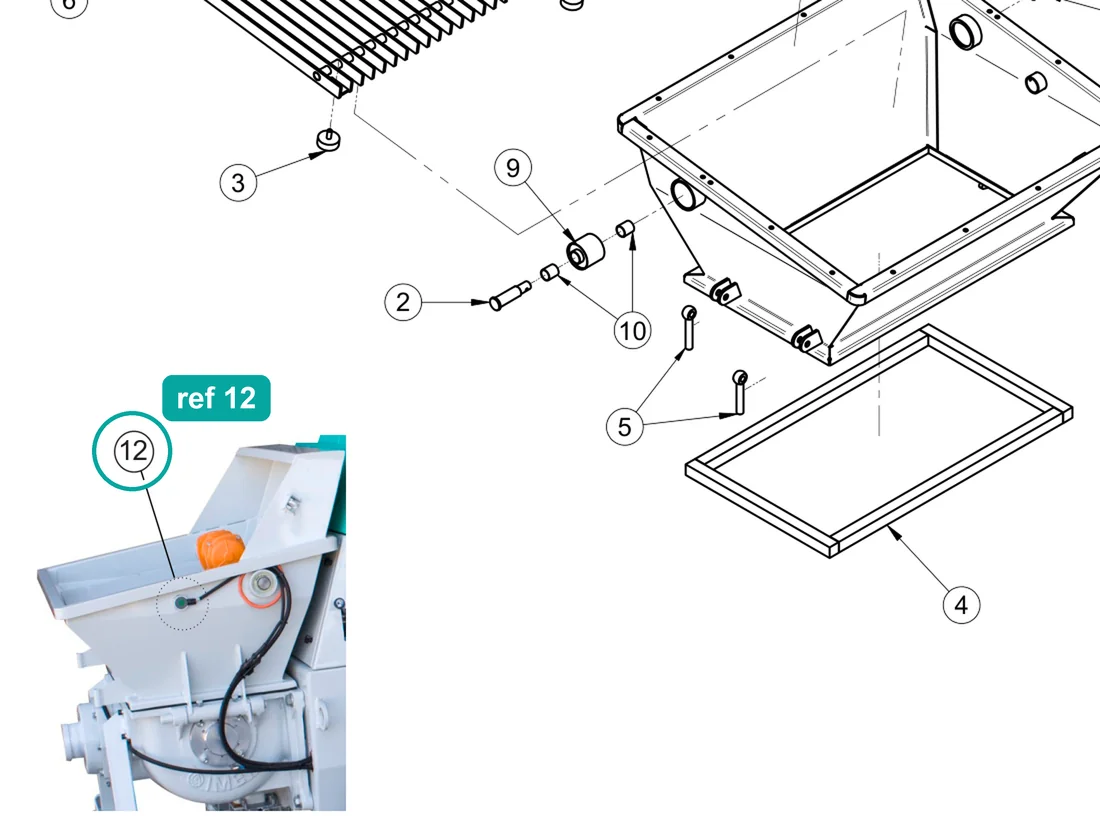

Ref 12 on the Booster 15 drawing
04Specifications
Part details
This is genuine IMER part number 3226898. The official IMER parts books list it as "Magnetic Sensor" and show it for the IMER Booster 15, Prestige 300 and Step-Up 120.
Parts-book listings: Step-Up 120, table 5 (Electrical Panel Step 220V (3229670)), ref 19; Prestige 300, table 8 (Electric Components), ref 17; Booster 15, table 6 (Hopper Grille and Vibrator), ref 12.
Check that the part number on your old part or in your machine's parts list matches 3226898 before ordering, or contact us with your machine's model and serial number.
05Used with
Often replaced together
Wear parts next to it on the same drawing
06Documents
Parts books
Guides
Guides for this part
Maintenance
IMER Mixer and Pump Cleaning, Storage and Winter Care
End-of-shift cleaning, freeze draining and storage steps from the IMER manuals for the Mix 750, Mix 120 Plus, Step-Up 120, Small 50, Koine 4 and more.
5 min read
Answers
Questions about the machines it fits
07Shipping & returns
Shipped from the USA
Fit check
Not sure it fits?
Send us the model and serial number from the machine’s serial plate, or a photo of it. A parts specialist checks the fit against the IMER parts books before the part ships.
