IMER Combicut 250/1000 VA parts book · Drawing 2

Ref 13
Bolt 5739 M12×65 (ref 13) on the IMER Combicut 250/1000 VA Complete Frame drawing
Combicut 250/1000 VA parts book · Drawing 2, Complete Frame · Ref 13 · Open full diagram

01Where it fits

Where this part sits on your machine

Also on this drawing

All 14 parts on Drawing 2, Complete Frame
  • 8
    Bolt TE 5739 M12×50

    2222050

    $10.00In stock

  • 4
    Plain washer 12×25

    2224380

    $10.00In stock

  • 10
    Self locking nut

    2223921

    $10.00In stock

  • 7
    Pin 8×70 z

    3223143

    $13.00In stock

  • 5
    Bolt TE 5739 M10×60

    3229916

    $10.00In stock

  • 11
    Washer M10×20 z

    2224340

    $10.00In stock

02Fits

Fits these machines

2 machines · 1 IMER parts book

From IMER parts book 3227118 r14 (2018-09).

03Where it sits

Ref 13 on the Combicut 250/1000 VA drawing

Open full diagram →

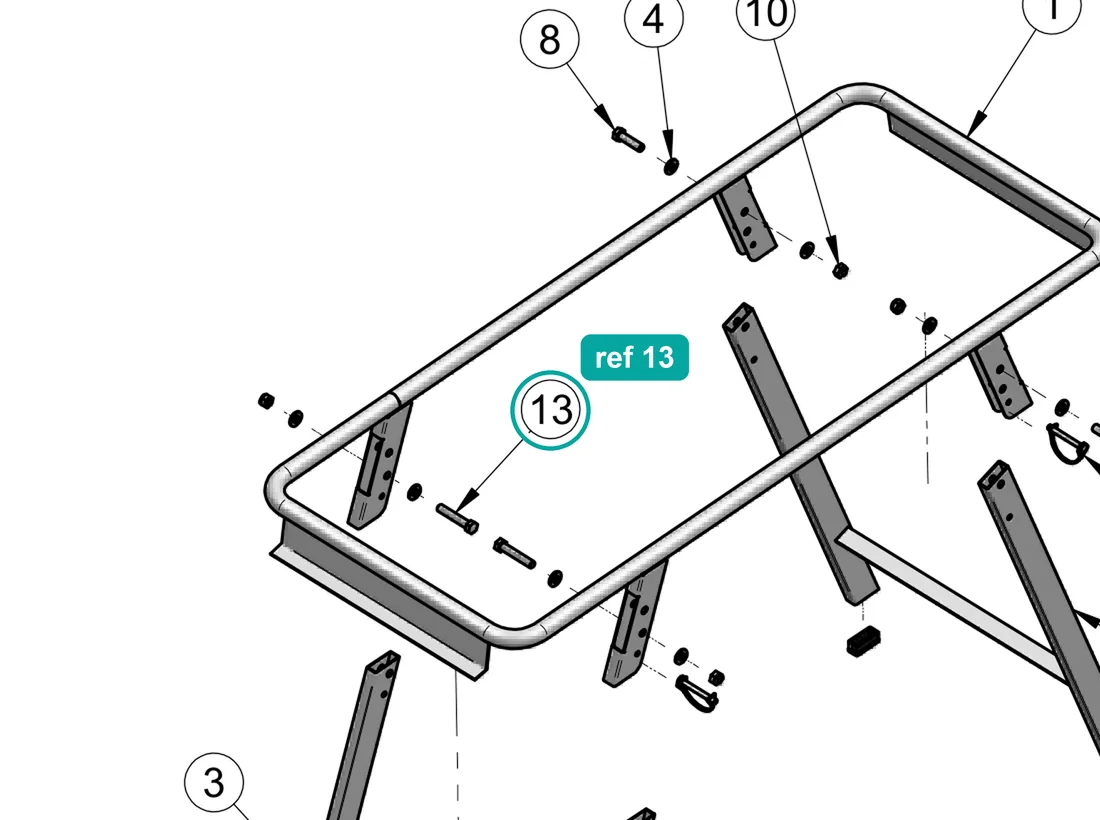

Combicut 250/1000 VA Complete Frame, exploded view with reference numbers
IMER Combicut 250/1000 VA · Drawing 2, Complete Frame. Select a number on the drawing to find its row.
Combicut 250/1000 VA — Complete Frame, parts list
RefPart no.NamePrice
13229892Frame CM250/1000 VANot sold onlineAsk a parts specialist
13234829Frame CM250/1500 VANot sold onlineAsk a parts specialist
23229852Front LegsNot sold onlineAsk a parts specialist
33229853Rear LegsNot sold onlineAsk a parts specialist
42224380Washer 6592 D.12x25In stock, $10.00
53229916Bolt TE 5739 M10x60In stock, $10.00
63205257WheelIn stock, $10.00
73223143Pin 8x70 ZIn stock, $13.00
82222050Bolt TE 5739 M12x50In stock, $10.00
93226976CapIn stock, $10.00
102223921Nut 7474 M12In stock, $10.00
112224340Washer 6592 D.10x21In stock, $10.00
122223920Nut 7474 M10In stock, $10.00
133224959Bolt 5739 M12x65In stock, $10.00

04Specifications

Part details

Part number
3224959(3224-959)
Brand
IMER (genuine OEM)
Condition
New
Assembly
Complete Frame
Fits
2 machines

This is genuine IMER part number 3224959. The official IMER parts books list it as "Bolt 5739 M12x65" and show it for the IMER Combicut 250/1000 VA and Combicut 250/1500 VA.

Parts-book listings: Combicut 250/1000 VA and Combicut 250/1500 VA, table 2 (Complete Frame), ref 13.

Check that the part number on your old part or in your machine's parts list matches 3224959 before ordering, or contact us with your machine's model and serial number.
