IMER Combicut 200 VA parts book · Drawing 5

Ref 3

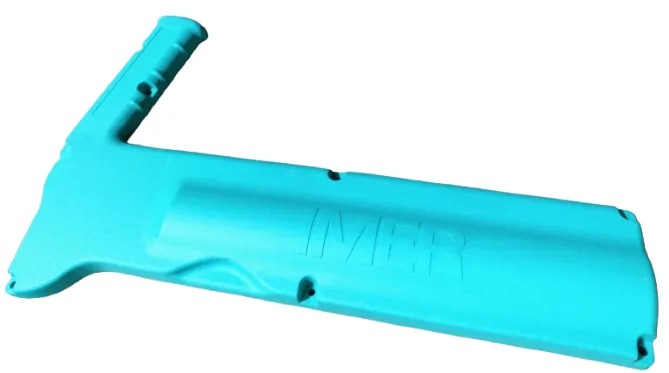

Electric panel cover (ref 3) on the IMER Combicut 200 VA Electric Panel drawing
Combicut 200 VA parts book · Drawing 5, Electric Panel · Ref 3 · Open full diagram

01Where it fits

Where this part sits on your machine

Also on this drawing

All 17 parts on Drawing 5, Electric Panel
  • 10
    Cable gland grommet PG 16

    3226101

    $10.00In stock

  • 2
    Gasket

    3210114

    $10.00In stock

  • 16
    Knob M8

    2284866

    $10.00In stock

  • 11
    Cable gland locking ring PG 11

    3226098

    $10.00In stock

  • 7
    Gasket

    3225596

    $10.00In stock

  • 9
    Cable gland locking ring PG 16

    3226095

    $10.00In stock

02Fits

Fits these machines

4 machines · 3 IMER parts books

From IMER parts books 3226123 r07 (2018-09), Combicut 250 VA, 3227118 r14 (2018-09).

03Where it sits

Ref 3 on the Combicut 200 VA drawing

Open full diagram →
Combicut 200 VA Electric Panel, exploded view with reference numbers
IMER Combicut 200 VA · Drawing 5, Electric Panel. Select a number on the drawing to find its row.
Combicut 200 VA — Electric Panel, parts list
RefPart no.NamePrice
13210230Junction BoxIn stock, $61.00
23210114GasketIn stock, $10.00
33210231CoverIn stock, $37.00
43210232CapacitorNot sold onlineAsk a parts specialist
53210233SwitchIn stock, $91.00
63209340Leakage ProtectionNot sold onlineAsk a parts specialist
73225596GasketIn stock, $10.00
83210524Water PumpNot sold onlineAsk a parts specialist
93226095Cable Gland Locking Ring PG 16In stock, $10.00
103226101Cable Gland Grommet PG 16In stock, $10.00
113226098Cable Gland Locking Ring PG 11In stock, $10.00
123226100Cable Gland Grommet PG 11In stock, $10.00
133210116Bolt TCTC 4,2x16In stock, $10.00
142222541Bolt TCEI 5931 6x25In stock, $10.00
153210096Bolt TTCQ 5732-65 M8x60In stock, $10.00
162284866Handwheel M8x30In stock, $10.00
173209065Plug With Electric CableNot sold onlineAsk a parts specialist

04Specifications

Part details

Part number
3210231(3210-231)
Brand
IMER (genuine OEM)
Condition
New
Assembly
Electric Panel
Fits
4 machines

This electric panel cover is a genuine IMER part, part number 3210231. The IMER parts books for the Combi 200 VA, the Combi 250 VA and the Combi 250/1000 VA - 250/1500 VA list it as ref. 3, "COVER", in Tav. 5, Electric Panel. Our store has sold it as the 250VA series hand control cover.

The junction box of the same panel is a separate part: 3227467 on the Combi 250 VA series and 3210230 on the Combi 200 VA.

Check part number 3210231 against your saw's parts list before you order.

05Used with

Often replaced together

Wear parts next to it on the same drawing

06Documents

Parts books

Answers

Questions about the machines it fits

All answers

07Shipping & returns

Shipped by IMER USA

Shipping & delivery →Returns & warranty →

  • Ships from IMER USA

    Shipped directly by IMER USA from its US warehouse, within 1–3 business days; ground delivery usually takes 5–7 business days.

  • Flat-rate shipping by size

    Parts ship at a flat rate by size, from $20. IMER machines ship free to commercial addresses in the contiguous US.

  • 30-day returns, restocking fee may apply

    30-day returns on unused items with a return authorization. Non-defective returns: 15% restocking fee (parts), 30% (machines), return freight paid by the buyer. See Returns

08Questions

Good to know

Which IMER machines does part 3210231 fit?

The IMER Combicut 200 VA, Combicut 250 VA, Combicut 250/1000 VA and Combicut 250/1500 VA saws.

Fit check

Not sure it fits?

Send us the model and serial number from the machine’s serial plate, or a photo of it. A parts specialist checks the fit against the IMER parts books before the part ships.
