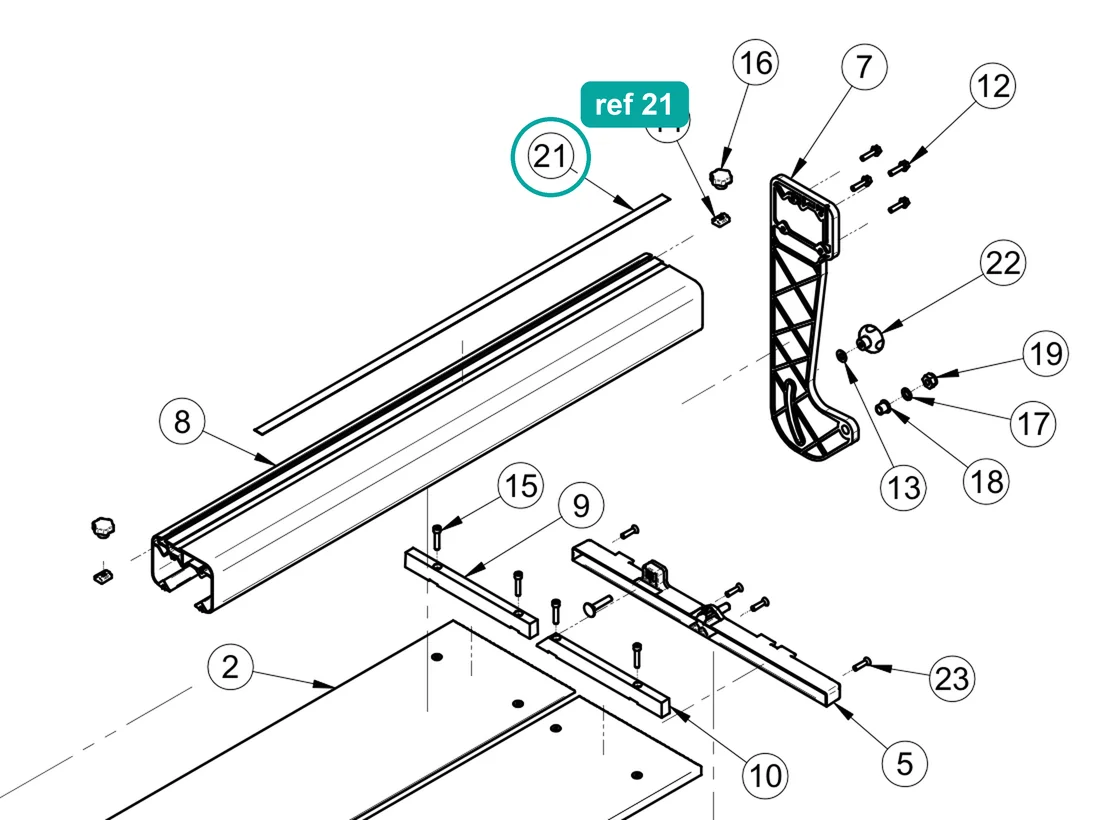

Millimetered Strip for IMER Combicut 200 VA and Combicut 250 VA — IMER parts diagram, ref 21

01Where it fits

Where this part sits on your machine

Also on this drawing

All 26 parts on Drawing 1, Machine Structure
  • 11
    T-nut

    3210071

    $10.00In stock

  • 16
    Knob M6

    3204865

    $10.00In stock

  • 7
    Front arm

    3226007

    $88.00In stock

  • 15
    Bolt TCEI 5931 M6×30

    2222545

    $10.00In stock

  • 9
    Right fence

    3226071

    $40.00In stock

  • 8
    Slideway

    3226061

    $296.00In stock

02Fits

Fits these machines

2 machines · 2 IMER parts books

From IMER parts books 3226123 r07 (2018-09), Combicut 250 VA.

03Where it sits

Ref 21 on the Combicut 200 VA drawing

Open full diagram →
Combicut 200 VA — Machine Structure, parts list
RefPart no.NamePrice
13226287TankIn stock, $122.00
23226063R.H. SurfaceIn stock, $144.00
33226264L.H. SurfaceIn stock, $144.00
43226067Rear SideIn stock, $53.00
53226068Front SideIn stock, $53.00
63226013Rear ArmIn stock, $87.00
73226007Front ArmIn stock, $88.00
83226061SlidewayIn stock, $296.00
93226071Right FenceIn stock, $40.00
103226072Left FenceIn stock, $40.00
113210071T-NutIn stock, $10.00
123226709Bolt TEFR 6x35Not sold onlineAsk a parts specialist
133210576Washer D.8,4x17x1,5In stock, $10.00
142235429CapNot sold onlineAsk a parts specialist
152222545Bolt TCEI 5931 M6x30In stock, $10.00
163204865Knob M6In stock, $10.00
173226087Washer D.10,5x17x1,5In stock, $10.00
183226088BushingIn stock, $10.00
192223920Nut 7474 M10In stock, $10.00
203226747Bolt TTDE 5732 8x40In stock, $10.00
213210069Millimetred StripIn stock, $19.00
222284866Knob M8In stock, $10.00
232222584Bolt TSPEI 5933 M6x25In stock, $10.00
243210070RodIn stock, $22.00
253226082BracketNot sold onlineAsk a parts specialist
262222449Bolt TC 6954 3.5x19In stock, $10.00

04Specifications

Part details

Part number
3210069(3210-069)
Brand
IMER (genuine OEM)
Condition
New
Assembly
Machine Structure
Fits
2 machines

This is genuine IMER part number 3210069. The official IMER parts books list it as "Millimetered Strip" and show it for the IMER Combicut 200 VA and Combicut 250 VA.

Parts-book listings: Combicut 200 VA, table 1 (Machine Structure), ref 21; Combicut 250 VA, table 1 (Machine Structure), ref 21.

Check that the part number on your old part or in your machine's parts list matches 3210069 before ordering, or contact us with your machine's model and serial number.
