IMER Masonry 350 Smart Cut parts book · Drawing 4

Ref 8

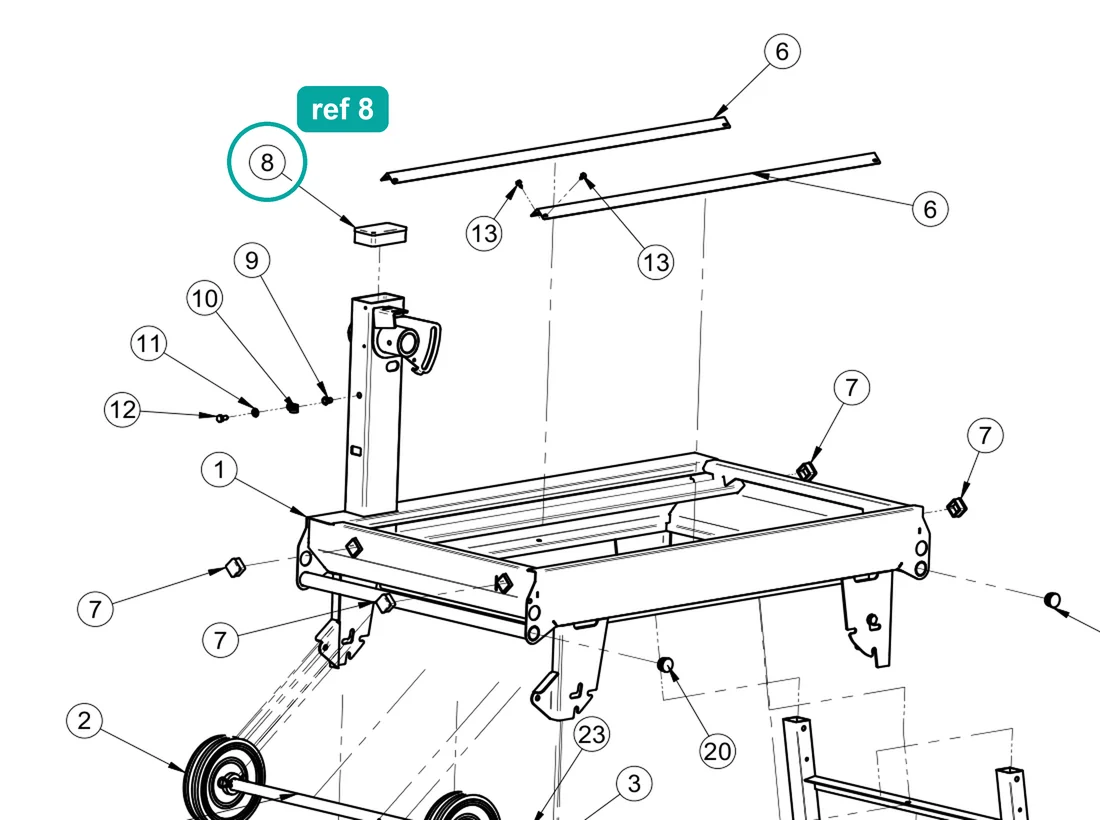

Plug GPN260 R100×60 (ref 8) on the IMER Masonry 350 Smart Cut Machine Structure drawing
Masonry 350 Smart Cut parts book · Drawing 4, Machine Structure · Ref 8 · Open full diagram

01Where it fits

Where this part sits on your machine

Also on this drawing

All 23 parts on Drawing 4, Machine Structure
  • 9
    Threaded insert 9418 - M8

    2224005

    $10.00In stock

  • 10
    Clamp

    3206312

    $10.00In stock

  • 11
    Washer M8

    2224140

    $10.00In stock

  • 13
    Screw 8117 - 4.8×13

    3206361

    $10.00In stock

  • 12
    Screw M8×16

    2222064

    $10.00In stock

  • 1
    Frame

    3236867

    $1,176.00In stock

02Fits

Fits these machines

2 machines · 2 IMER parts books

From IMER parts books 3231378 r05 (2019-06), 3209290 r11 (2019-02).

03Where it sits

Ref 8 on the Masonry 350 Smart Cut drawing

Open full diagram →

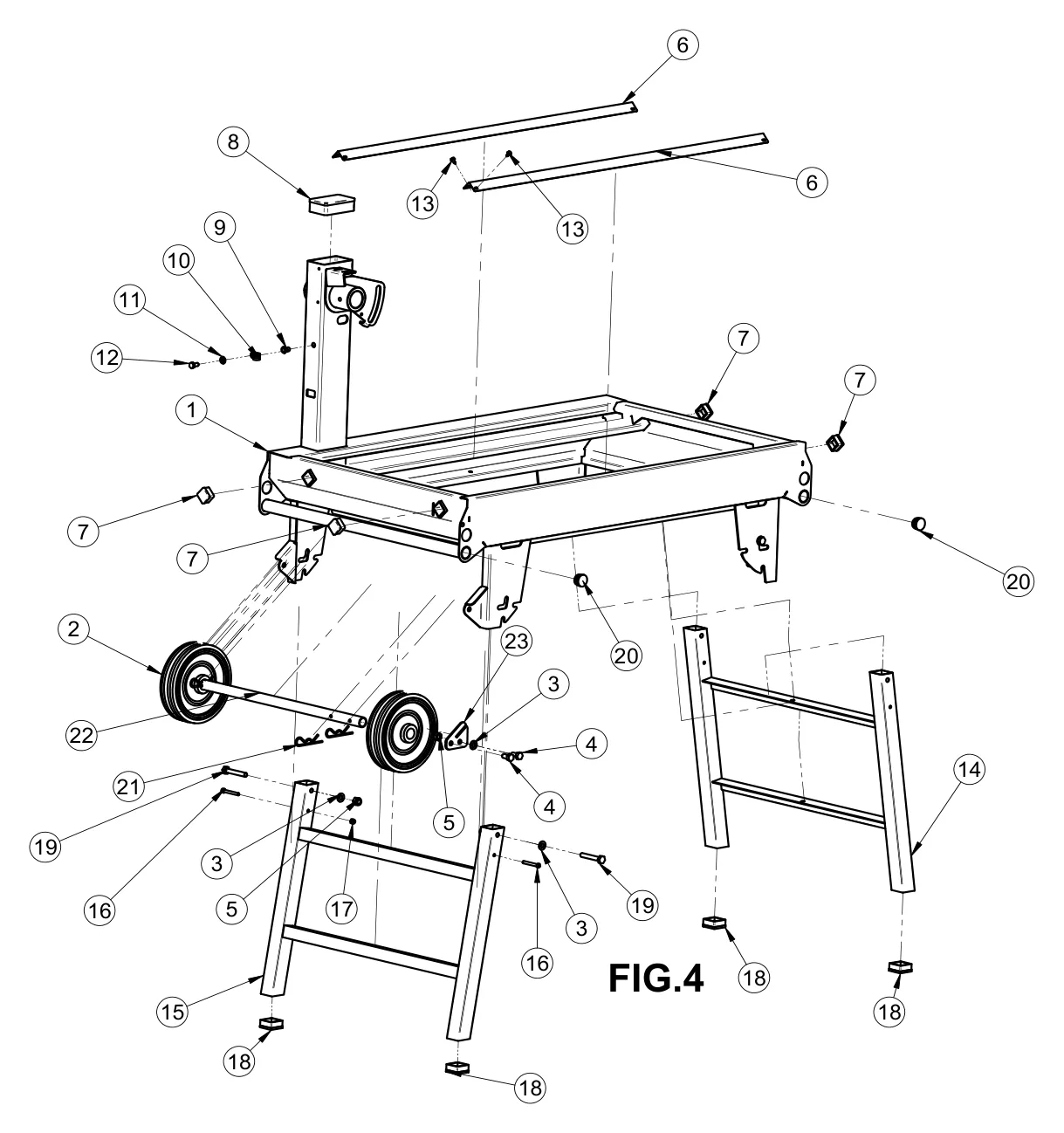

Masonry 350 Smart Cut Machine Structure, exploded view with reference numbers
IMER Masonry 350 Smart Cut · Drawing 4, Machine Structure. Select a number on the drawing to find its row.
Masonry 350 Smart Cut — Machine Structure, parts list
RefPart no.NamePrice
13236867FrameIn stock, $1,176.00
23209809Rubber WheelIn stock, $18.00
32224340Washer 6592 - 10x21In stock, $10.00
42222077Screw 5737 - M10x20Not sold onlineAsk a parts specialist
52223920Nut 7474 - M10In stock, $10.00
63231005GuideIn stock, $60.00
73205943Plug GPN260 Q30x30In stock, $10.00
83209032Plug GPN260 R100x60In stock, $29.00
92224005Threaded Insert 9418 - M8In stock, $10.00
103206312ClampIn stock, $10.00
112224140Washer 6593 - 8x24In stock, $10.00
122222064Screw 5739 - M8x16In stock, $10.00
133206361Screw 8117 - 4.8x13In stock, $10.00
143236865Front LegIn stock, $149.00
153236866Rear LegIn stock, $147.00
162222547Screw 5931 - M6x50In stock, $10.00
172223924Nut 7473 - M6In stock, $10.00
182257705Plug GPN260 Q40x40Not sold onlineAsk a parts specialist
192222148Screw 5737 - M10x65In stock, $10.00
203208452Plug GPN 320 GL 30x2In stock, $10.00
212226700Split Pin AMA 3.5/72In stock, $10.00
223235350AxleIn stock, $126.00
233235360PlateIn stock, $10.00

04Specifications

Part details

Part number
3209032(3209-032)
Brand
IMER (genuine OEM)
Condition
New
Assembly
Machine Structure
Fits
2 machines

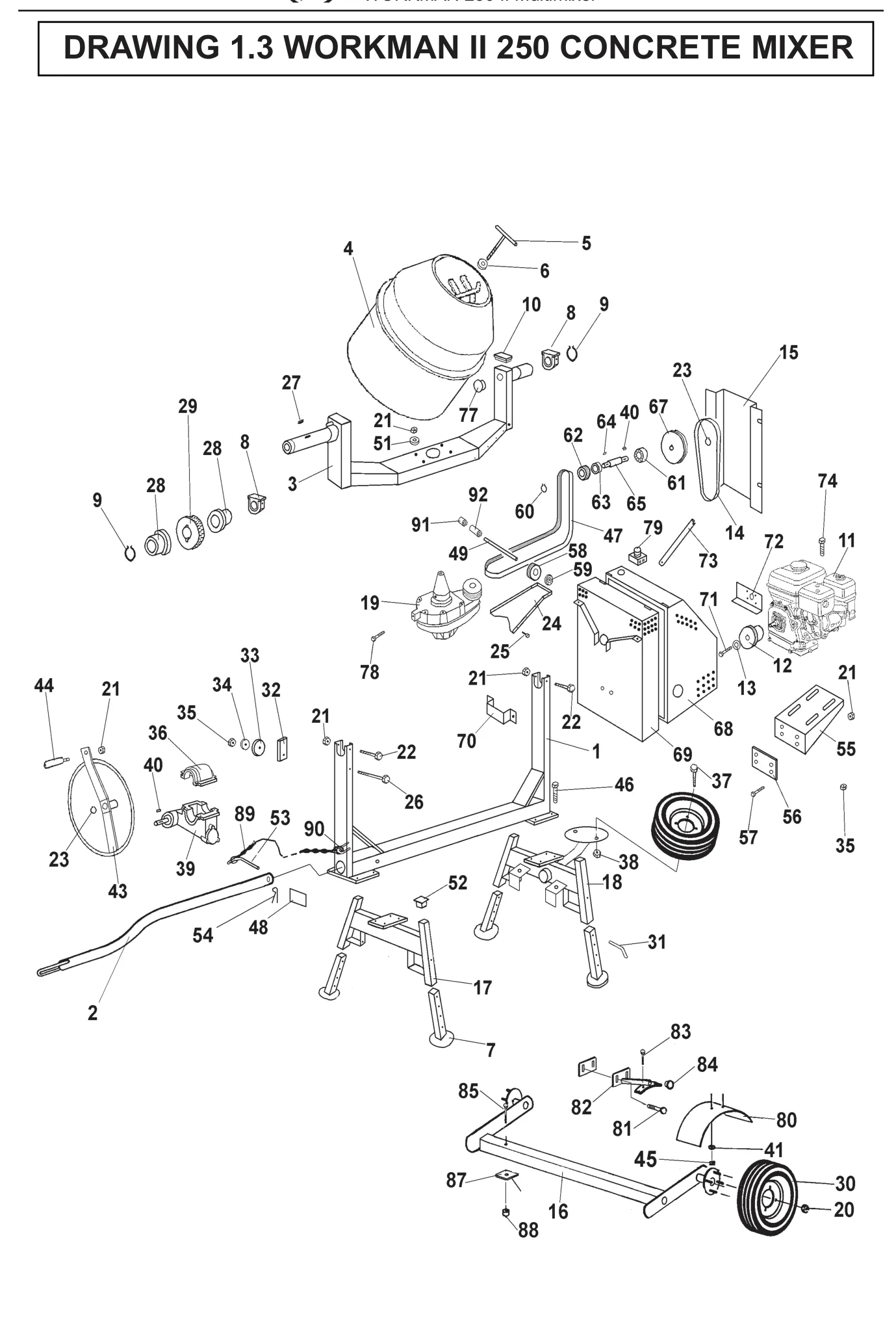

This plug is a genuine IMER part, part number 3209032. The IMER Masonry 350 Smart Cut parts book lists it as ref. 8, "Plug GPN260 R100x60", in the machine structure table TAV. 4. The IMER Workman II 250 parts book lists the same part number as ref. 10, "Plug", on drawing 1.3, Workman II 250 Concrete Mixer (1105849-1105850).

Check part number 3209032 against your machine's parts list or the part you are removing before you order.
