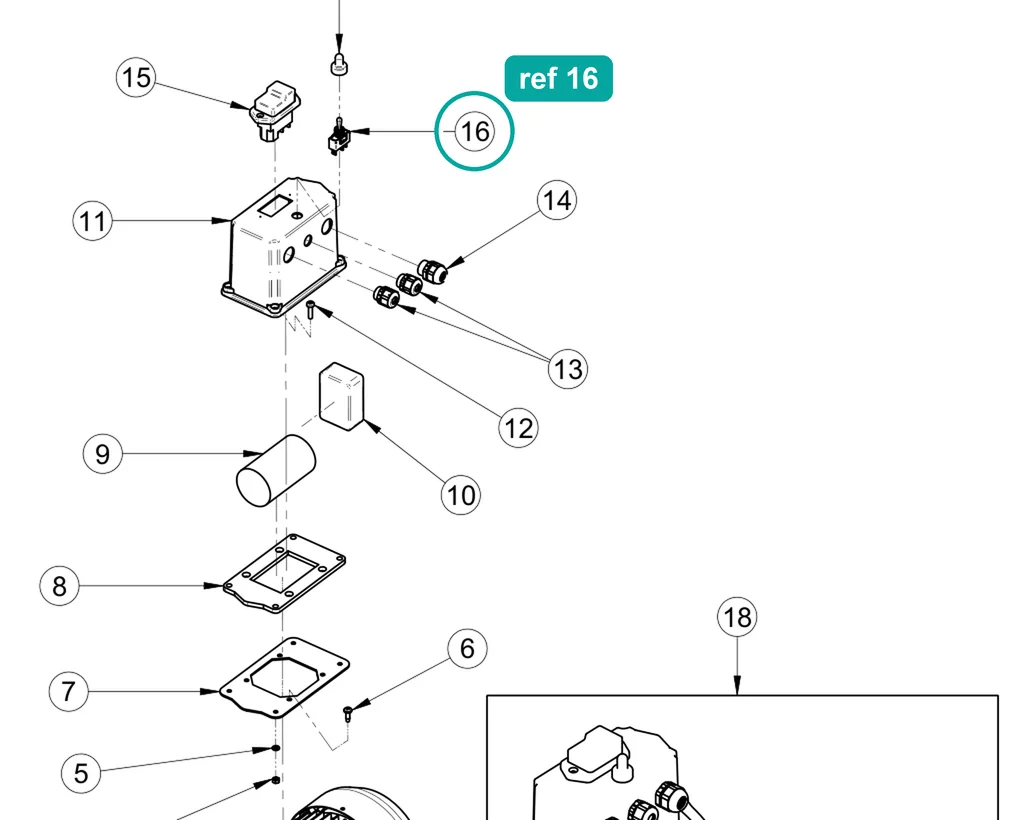

Switch (ref 16) highlighted on the IMER Combicut 350 iPower parts diagram, Electric Panel – part 3206170

01Where it fits

Where this part sits on your machine

Also on this drawing

All 20 parts on Drawing 7, Electric Panel
  • 12
    Screw TCB PH 7687 5×20 z

    3207152

    $10.00In stock

  • 15
    Electrical panel switch

    3209337

    $70.00In stock

  • 10
    Power supply

    3228251

    $77.00In stock

  • 11
    Electrical enclosure

    3231770

    $33.00In stock

  • 6
    Bolt M5×15

    2222465

    $10.00In stock

  • 18
    Electric panel

    3231700

    $361.00In stock

02Fits

Fits these machines

1 machine · 1 IMER parts book

From IMER parts book 3231790 r07 (2018-09).

03Where it sits

Ref 16 on the Combicut 350 iPower drawing

Open full diagram →
Combicut 350 iPower — Electric Panel, parts list
RefPart no.NamePrice
13234570Electric Motor230V 50HzIn stock, $965.00
13231950Electric Motor220V 60HzIn stock, $921.00
23231483Motor PulleyIn stock, $130.00
32227270Stop Ring 7435 E/24In stock, $10.00
42223352Nut 5588 M5In stock, $10.00
51224780Grower Washer D.5In stock, $10.00
62222465Trilobular Screw TC PH M5x15In stock, $10.00
73231429Panel Support PlateRequest price
83231442GasketIn stock, $22.00
93231995Capacitor 60µF 450VRequest price
103228251Laser Power SupplyIn stock, $77.00
113231770Electrical EnclosureIn stock, $33.00
123207152Screw TCB PH 7687 5x20 ZIn stock, $10.00
133201217Cable Clamp PG11Request price
143209692Cable Clamp PG13.5Request price
153209337SwitchIn stock, $70.00
163206170SwitchIn stock, $53.00
173206171Switch ProtectionRequest price
183231700Electric Panel220-230V 50/60HzIn stock, $361.00
193203504Plug 2P+GNDIn stock, $55.00

04Specifications

Part details

Part number
3206170(3206-170)
Brand
IMER (genuine OEM)
Condition
New
Assembly
Electric Panel
Fits
1 machine

This is genuine IMER part number 3206170. The official IMER parts books list it as "Switch" and show it for the IMER Combicut 350 iPower.

Parts-book listings: Combicut 350 iPower, table 7 (Electric Panel), ref 16.

Check that the part number on your old part or in your machine's parts list matches 3206170 before ordering, or contact us with your machine's model and serial number.
