IMER Combicut 250 VA parts book · Drawing 5

Ref 27
Bolt TC PH 6954 4.2×9.5 (ref 27) on the IMER Combicut 250 VA Electric Panel drawing
Combicut 250 VA parts book · Drawing 5, Electric Panel · Ref 27 · Open full diagram

01Where it fits

Where this part sits on your machine

Also on this drawing

All 27 parts on Drawing 5, Electric Panel

02Fits

Fits these machines

3 machines · 2 IMER parts books

From IMER parts books Combicut 250 VA, 3227118 r14 (2018-09).

03Where it sits

Ref 27 on the Combicut 250 VA drawing

Open full diagram →

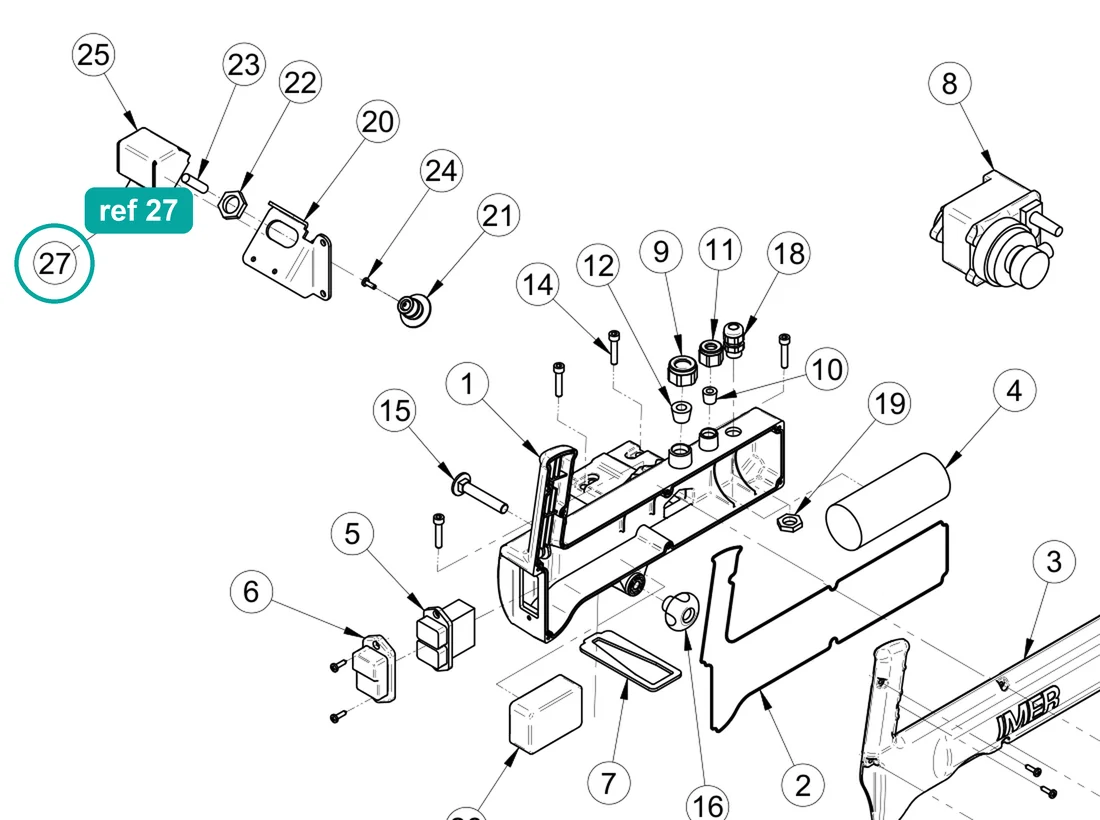

Combicut 250 VA Electric Panel, exploded view with reference numbers
IMER Combicut 250 VA · Drawing 5, Electric Panel. Select a number on the drawing to find its row.
Combicut 250 VA — Electric Panel, parts list
RefPart no.NamePrice
13227467Junction BoxIn stock, $81.00
23210114GasketIn stock, $10.00
33210231CoverIn stock, $37.00
43210232CapacitorNot sold onlineAsk a parts specialist
53210233SwitchIn stock, $91.00
63209340Leakage ProtectionNot sold onlineAsk a parts specialist
73225596GasketIn stock, $10.00
83233422Water PumpIn stock, $171.00
93226095Cable Gland Locking Ring PG 16In stock, $10.00
103226101Cable Gland Grommet PG 16In stock, $10.00
113226098Cable Gland Locking Ring PG 11In stock, $10.00
123226100Cable Gland Grommet PG 11In stock, $10.00
133210116Bolt TCTC 4,2x16In stock, $10.00
142222540Bolt TCEI 5931 6x20In stock, $10.00
153210096Bolt TTCQ 5732-65 M8x60In stock, $10.00
162284866Handwheel 180-40-M8In stock, $10.00
173224630Plug with Electric CableIn stock, $78.00
183227508Cable Clamp PG 9In stock, $10.00
193227487Cable Gland Nut PG 9In stock, $10.00
203227481SupportNot sold onlineAsk a parts specialist
213227483Adjustment BlockIn stock, $59.00
223227489Cable Gland Nut M20x1.5In stock, $10.00
233228250LaserIn stock, $49.00
243207155Bolt TC PH 7687 M4x10In stock, $10.00
253227482CoverNot sold onlineAsk a parts specialist
263228251Power SupplyIn stock, $77.00
272222424Bolt TC PH 6954 4.2x9.5In stock, $10.00

04Specifications

Part details

Part number
2222424(2222-424)
Brand
IMER (genuine OEM)
Condition
New
Assembly
Electric Panel
Fits
3 machines

This is genuine IMER part number 2222424. The official IMER parts books list it as "Bolt TC PH 6954 4.2x9.5" and show it for the IMER Combicut 250 VA, Combicut 250/1000 VA and Combicut 250/1500 VA.

Parts-book listings: Combicut 250/1000 VA and Combicut 250/1500 VA, table 5 (Electric Panel), ref 27; Combicut 250 VA, table 5 (Electric Panel), ref 27.

Check that the part number on your old part or in your machine's parts list matches 2222424 before ordering, or contact us with your machine's model and serial number.
