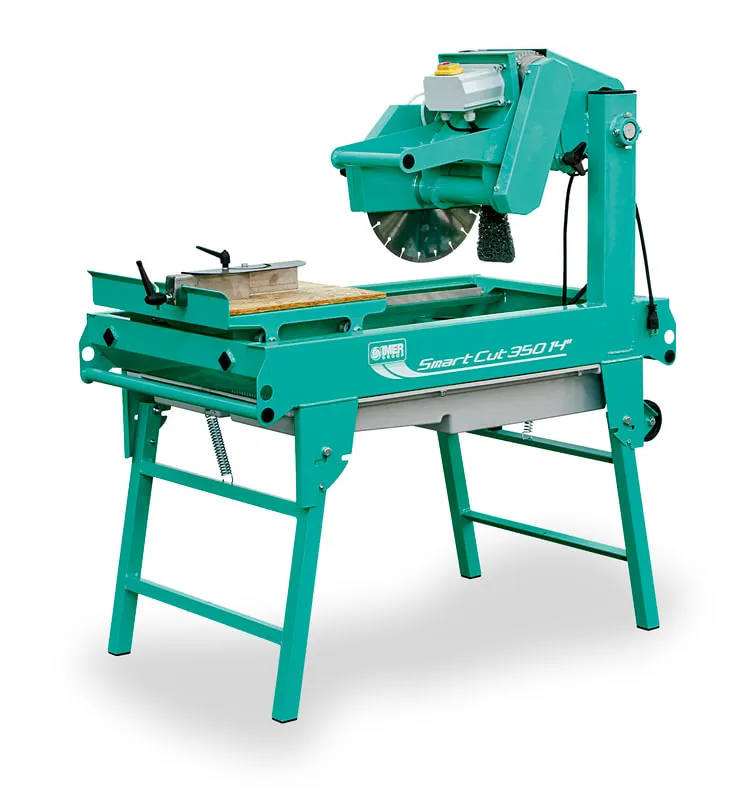

IMER Masonry 350 Smart Cut Brick and Block Saw, 14 in Blade – IMER part 1188975

01About

About this machine

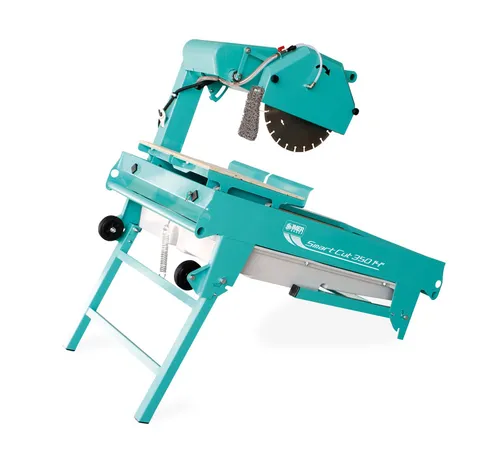

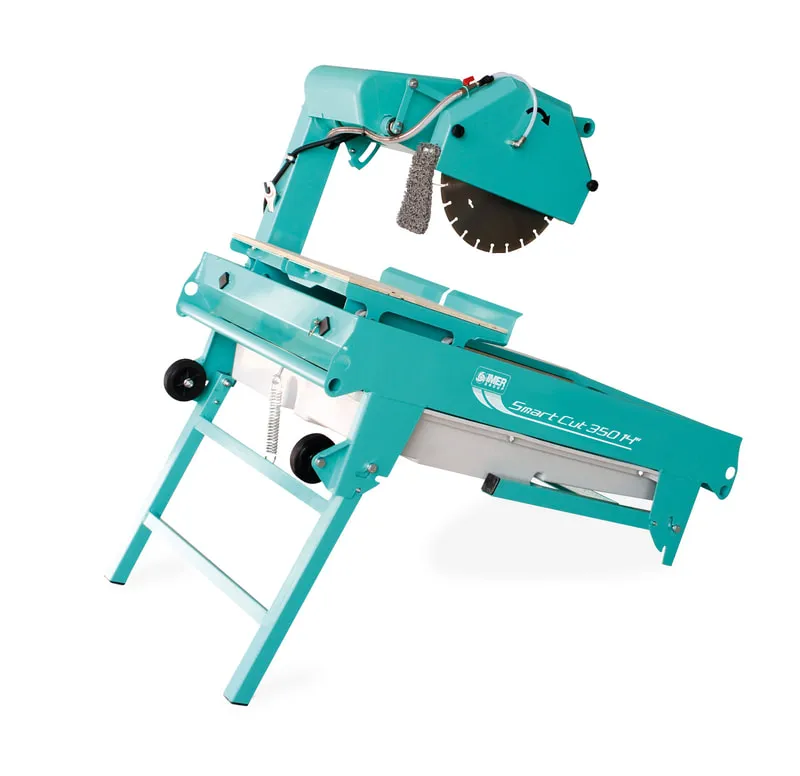

The IMER Masonry 350 Smart Cut, model 1188975, is a 14 in brick and block saw for cutting bricks, blocks, paving stones and tile. A 2 hp, 120V single-phase high-torque motor (15 amps) turns the blade at 2850 rpm.

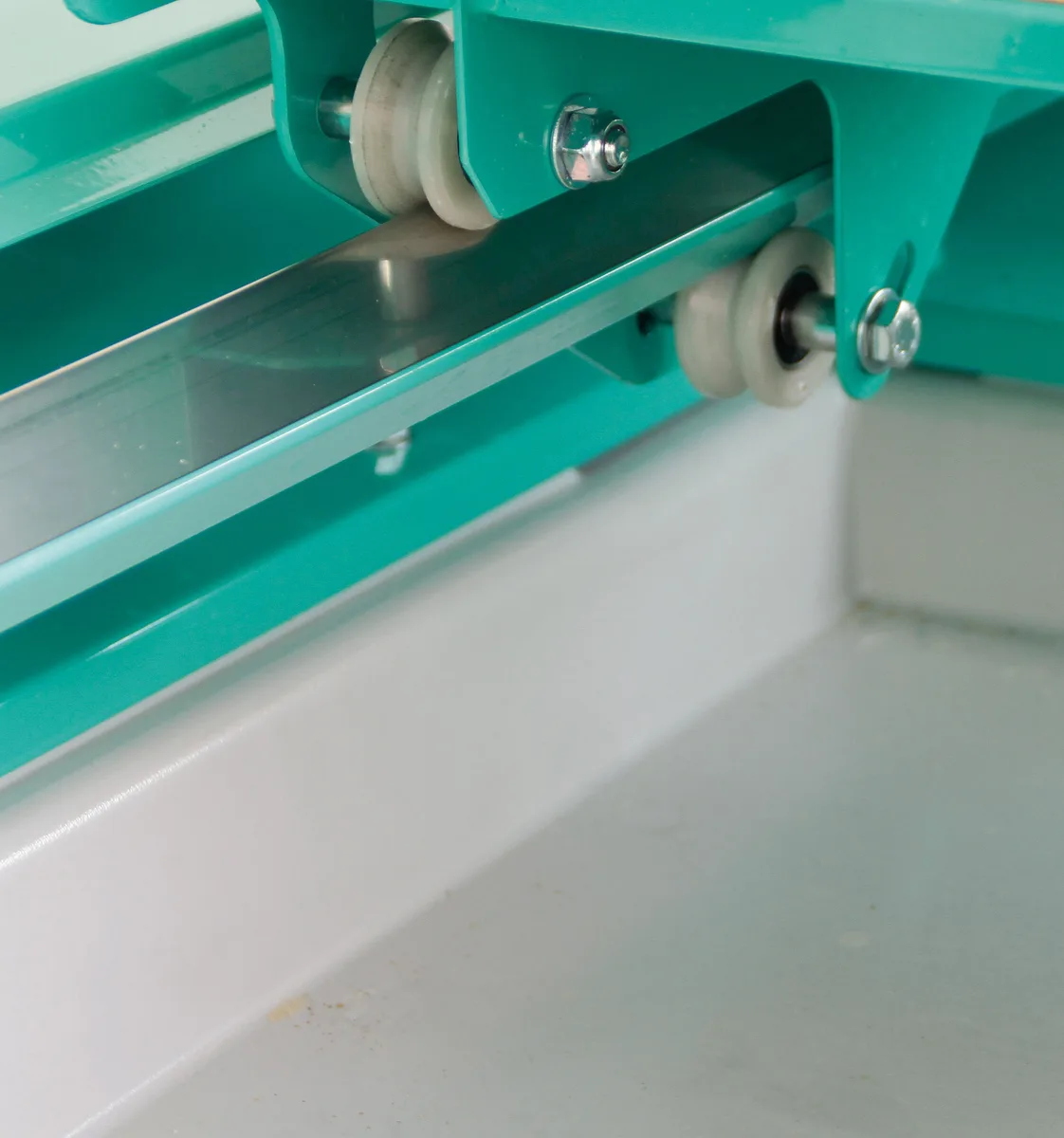

Maximum cutting length is 26 in, or 30 in with a plunge cut, and maximum cutting depth is 4.75 in. The cutting tray rolls on ceramic nylon rollers with sealed bearings, and rollers on top and bottom keep the tray from lifting off. A single arm design allows larger cuts. The blade guard is lined with sound-absorbing material and comes off with two thumb screws. The water pan holds 10 gal and the pump delivers 3 gpm. The saw weighs 175 lbs with stand (215 lbs boxed).

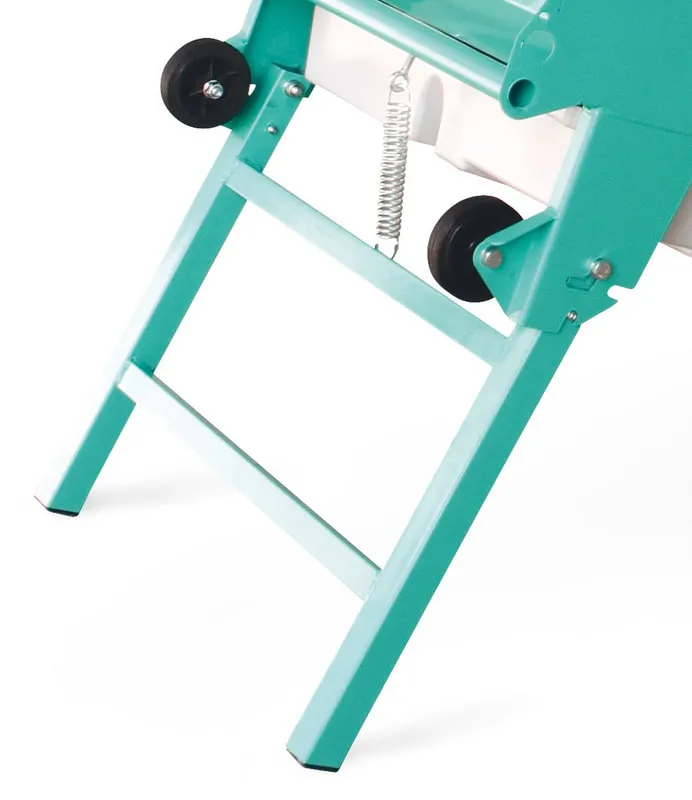

Standard equipment includes a 14 in general purpose blade, a 180° protractor and an integrated stand with wheel kit; the spring-loaded stand folds for transport. An optional 45° miter accessory (item 1187640) is offered. 14 in blades listed for this saw: 1193924 (continuous rim, porcelain and hard materials), 1193934 (segmented masonry), 1193944 (concrete turbo with gullets) and 1193954 (silent core for stone).

02Specifications

IMER Masonry 350 Smart Cut technical data

From the IMER product sheet

General

Model #
1188975

Capacity

Blade diameter
14 in
Blade shaft diameter
1 in
Max. cutting length (w/ plunge cut)
26 in (30 in)
Max. cutting depth
4.75 in
Water pan capacity
10 gal

Power

Motor rating
2 hp, 120V, 15 amps

Performance

Blade speed
2850 rpm
Water pump flow
3 gpm
Noise level
<79 dB

Weight

Weight (boxed), includes stand
175 lbs (215 lbs)

Dimensions

Operating length (boxed)
47 in (48 in)
Operating height (boxed)
51 in (55 in)
Operating width (boxed)
28.5 in (29 in)

03Parts & manuals

Parts that fit the IMER Masonry 350 Smart Cut

116 part numbers · 5 drawings

Parts you can order for the Masonry 350 Smart Cut

04Shipping

Shipping and lead time

Ships from the USA
Lead time
Usually ships in 2–3 weeks. IMER machines come from Italy and some are assembled to order or back-ordered, so we confirm the ship date after you order.
Delivery
LTL freight, 7–10 business days in transit. Free to commercial addresses in the contiguous US; residential and/or liftgate delivery adds one flat $75. Ships to the USA and Canada (not to Quebec). Shipping conditions
Returns
30-day returns. Return policy
