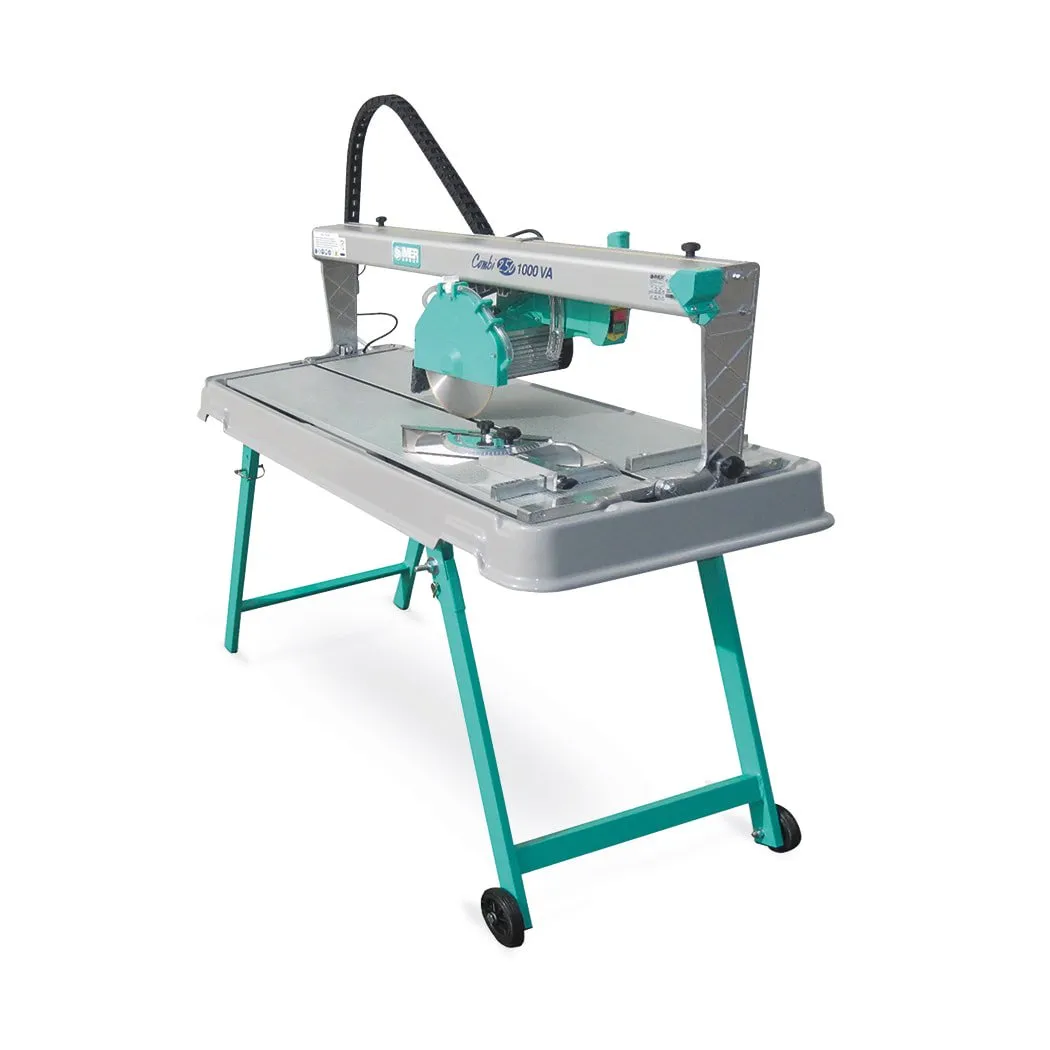

IMER Combicut 250/1000 VA Wet Tile Saw, 40 in Max Cut with Plunge – IMER part 1188174

01About

About this machine

The IMER Combicut 250/1000 VA is a portable wet tile, stone and porcelain saw, model number 1188174, for cutting larger tile and stone on smaller jobs that need cuts up to 40 in long. It runs a 10 in blade on a 5/8 in shaft at 2800 rpm, driven by a 1.75 hp, 120 V, 15 amp single-phase motor. Maximum cutting length is 37 in, or 40 in with a plunge cut, and maximum cutting depth is 3.75 in.

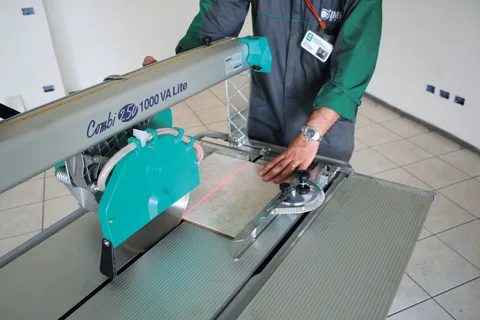

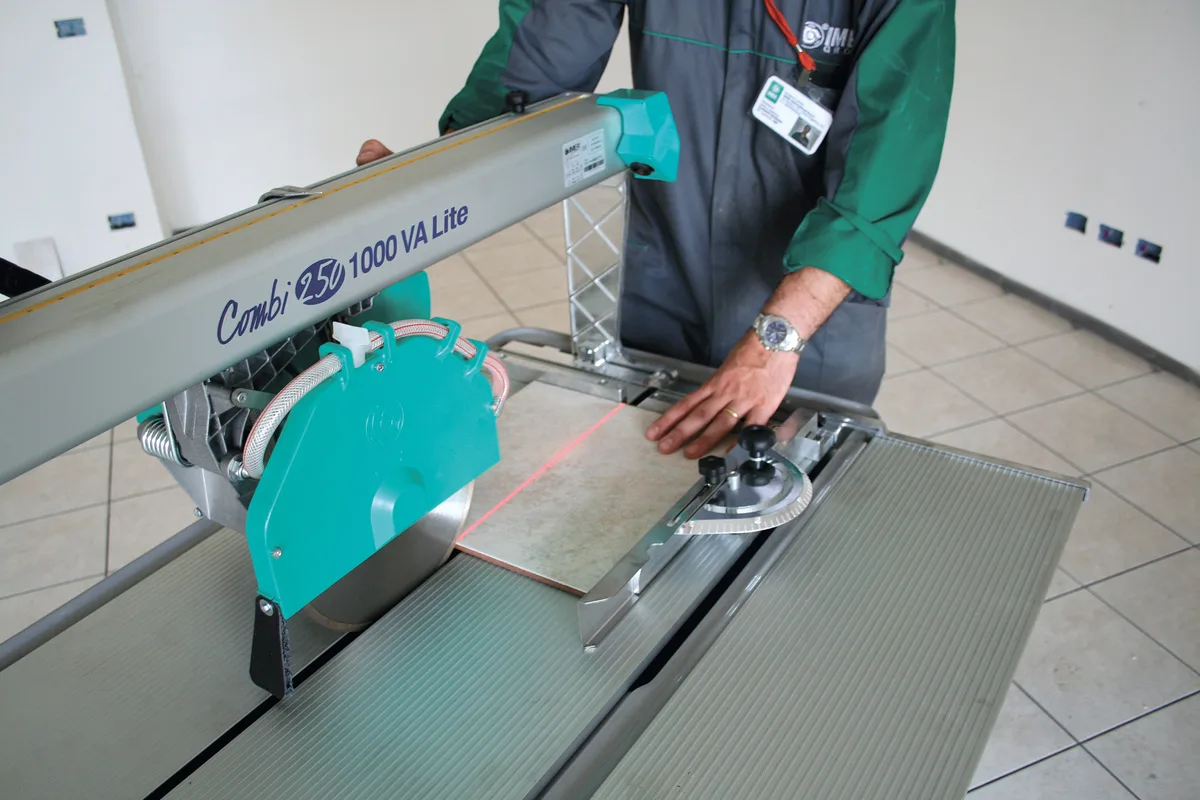

The saw is made of precision cast aluminum. A laser guide helps line up cuts quickly and accurately, and the beam tilts for easier miter cuts. A high flow water pump (3 gpm) with a water valve controls the water mist, and the removable high impact poly water pan with baffle holds 12 gal.

Standard equipment includes a 10 in continuous rim porcelain blade, integrated stand with wheel kit, side table for large format tiles and 180 degree protractor. An optional tile clamp (item 1188157) is available. The saw weighs 92 lbs (98 lbs boxed), stand included, with an operating size of 55 x 25 x 24 in (L x W x H). Listed replacement blades: 1193962 (10 in x .060 continuous rim), 1193932 (10 in x .110 segmented masonry) and 1193942 (10 in x .110 concrete turbo).

02Specifications

IMER Combicut 250/1000 VA technical data

From the IMER product sheet

General

Model #
1188174

Capacity

Blade diameter
10 in
Blade shaft diameter
5/8 in
Water pan capacity
12 gal

Performance

Max. cutting length (w/ plunge cut)
37 in (40 in)
Max. cutting depth
3.75 in
Blade speed
2800 rpm
Water pump flow
3 gpm

Power

Motor rating
1.75 hp, 120 V, 15 amp

Weight

Weight (boxed), includes stand
92 lbs (98 lbs)

Dimensions

Operating length (boxed)
55 in (58 in)
Operating height (boxed)
24 in (26 in)
Operating width (boxed)
25 in (27 in)

03Parts & manuals

Parts that fit the IMER Combicut 250/1000 VA

142 part numbers · 10 drawings

Parts you can order for the Combicut 250/1000 VA

04Shipping

Shipping and lead time

Ships from the USA
Lead time
Usually ships in 2–3 weeks. IMER machines come from Italy and some are assembled to order or back-ordered, so we confirm the ship date after you order.
Delivery
LTL freight, 7–10 business days in transit. Free to commercial addresses in the contiguous US; residential and/or liftgate delivery adds one flat $75. Ships to the USA and Canada (not to Quebec). Shipping conditions
Returns
30-day returns. Return policy
