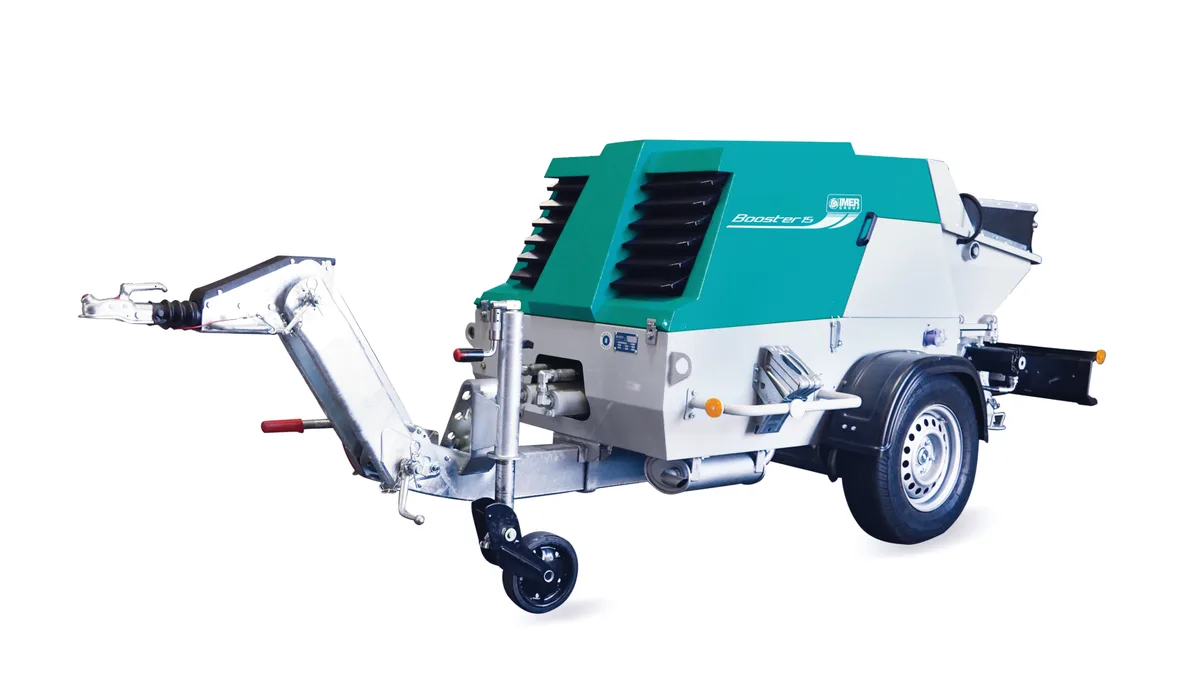

IMER Booster 20 Piston Pump with S Valve, 28 HP – genuine IMER machine 1106428Free shipping

01About

About this machine

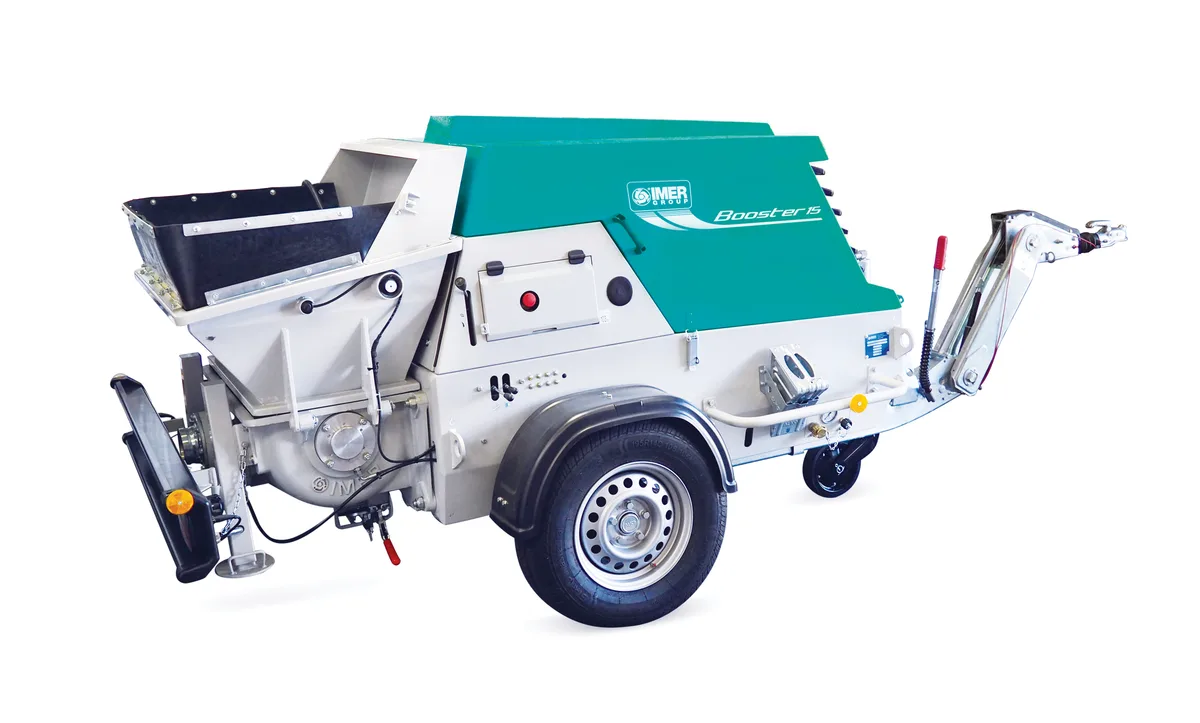

Compact towable diesel 2-cylinder concrete piston pump with S-valve, delivering up to 20 cu yd/hr of concrete, shotcrete and high-strength grouts on space-limited job sites.

02Versions

2 versions of the IMER Booster 20

Each has its own page, price and part number
  • 1106428

    28 HP

    This version

    Free shipping

    $61,999

    Ships by Nov 23, 2026

IMER Booster 20: all versions, specs and parts

03Specifications

IMER Booster 20 technical data

From the IMER product sheet

General

Model #
1106427

Power

Engine
Diesel 3-cylinder
Installed power
28 hp

Performance

Pumping system
2-cylinder w/ hydraulic control
Max aggregate size
1 in
Flow rate
3 - 20 cu yd/hr (max flow and max pressure not simultaneous)
Pumping pressure
1,000 psi
Pipe outlet
Heavy duty 4 in
Noise level
<79 dB

Capacity

Hopper capacity
7 cu ft

Dimensions

Loading height
42.5 in
Width
58 in
Length
161 in
Height
60 in

Weight

Weight
3,100 lbs

04Shipping

Shipping and lead time

Shipped by IMER USA
Lead time
Usually ships in 2–3 weeks. The machine is ordered from IMER for you; some are assembled to order or back-ordered, so we confirm the ship date after you order. Expected ship date for an order placed today: Nov 23, 2026. IMER USA ships it directly to you.
Delivery
LTL freight, 7–10 business days in transit. Free to commercial addresses in the contiguous US; residential and/or liftgate delivery adds one flat $75. Ships to the USA and Canada (not to Quebec). Shipping conditions
Returns
30-day returns. Non-defective returns: 15% restocking fee (parts), 30% (machines), return freight paid by the buyer. See Returns
