IMER Prestige 300 parts book · Drawing 6

Ref 30

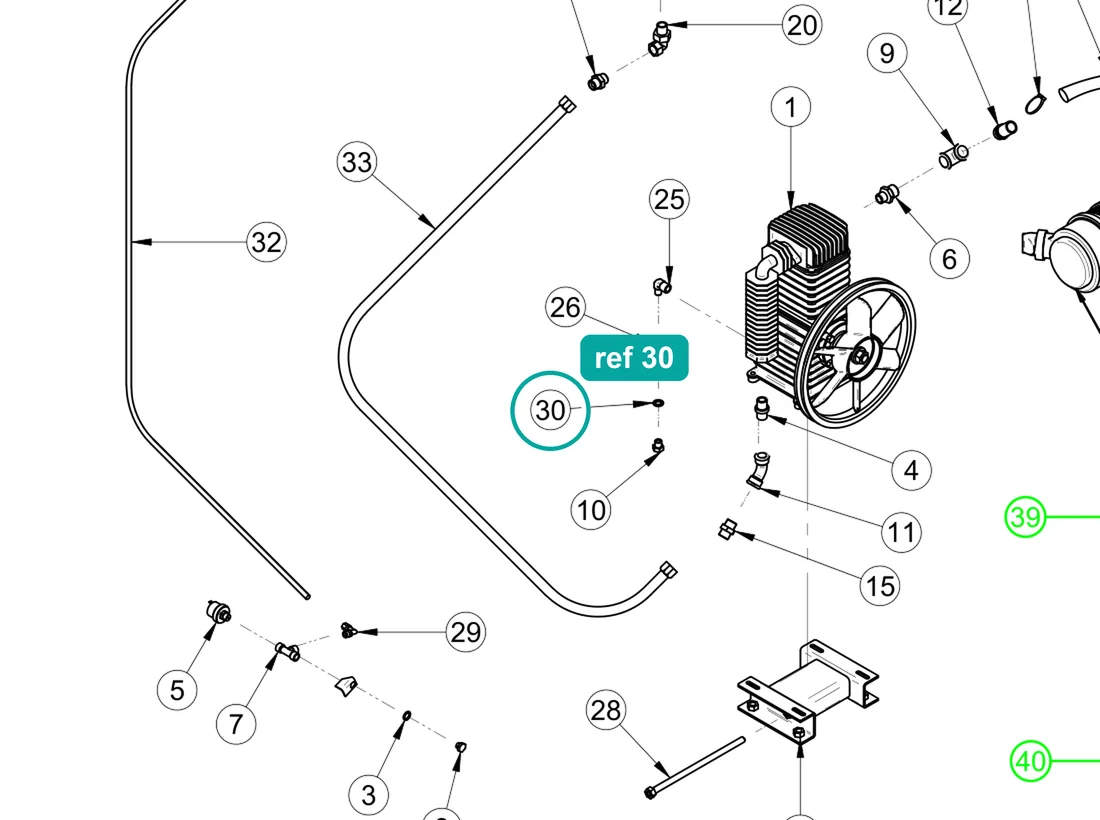

Self-centering washer GM 1/4" (ref 30) on the IMER Prestige 300 Pneumatic Circuit drawing
Prestige 300 parts book · Drawing 6, Pneumatic Circuit · Ref 30 · Open full diagram

01Where it fits

Where this part sits on your machine

Also on this drawing

All 40 parts on Drawing 6, Pneumatic Circuit

02Fits

Fits these machines

1 machine · 1 IMER parts book

From IMER parts book 3234338 r03 (2018-09).

03Where it sits

Ref 30 on the Prestige 300 drawing

Open full diagram →
Prestige 300 Pneumatic Circuit, exploded view with reference numbers
IMER Prestige 300 · Drawing 6, Pneumatic Circuit. Select a number on the drawing to find its row.
Prestige 300 — Pneumatic Circuit, parts list
RefPart no.NamePrice
13224466Compressor K18/B VA320 DXC/C S/FIn stock, $2,195.00
23234130Air FilterNot sold onlineAsk a parts specialist
31220118Washer 1/4"In stock, $10.00
43224362Nipple 1/2"In stock, $10.00
53233660Pressure Switch GP600 1/4" Cylindrical 2-10 BarIn stock, $243.00
63225605Cyl. Reduced Nipple 3/4"-1/2" Conical Cast Iron ZIn stock, $17.00
73224968Standard T Air Connection 1/4" F.F.F.Not sold onlineAsk a parts specialist
83224967Plug 1/4" M. Cyl. Chromed BrassNot sold onlineAsk a parts specialist
9322573890° Elbow 3/4" F.F.In stock, $12.00
103225126Hydraulic Hex Plug 1/4" M. 60°In stock, $10.00
113224205Wide Radius Bend 45° 1/2" F.F.In stock, $29.00
123225609Hose Union 3/4" M.x25In stock, $26.00
13322416890° Elbow 1/2" F.F.In stock, $24.00
143223730Nickel-Plated Flanged Ring Nut 1/2" F.In stock, $10.00
153225152Cyl. Hydraulic Nipple 1/2" 60°In stock, $12.00
163225221Pressure Release DeviceIn stock, $370.00
173225578Pressure Release Device BracketIn stock, $59.00
183223632Threaded Branch 1/2" M.In stock, $28.00
193223617Union T 1/2" F.F.F.Not sold onlineAsk a parts specialist
20322363790° Elbow M.F. with Conical Seat Bush 1/2"In stock, $41.00
213223609Reduction M.1/2" - F.1/4"In stock, $10.00
223224203Quick Coupling 1/2" M.In stock, $19.00
233224202Ball Valve 1/2" F.F. CIM 12In stock, $68.00
24322427090° Elbow 1/2" F.F.Code as printed (same as Compressor Support in table 5)Not sold onlineAsk a parts specialist
253225615Standard Air Connection 90° 1/4" M.F. ConicalNot sold onlineAsk a parts specialist
263225628Hydraulic Extension 1/4" M.F. 60° L.50mmIn stock, $22.00
273228627Air Filter ManifoldNot sold onlineAsk a parts specialist
283231165Belt Tightener StayNot sold onlineAsk a parts specialist
293225643Fitted Air Connection 90° 1/4" Swivel for Pipe D.8/6In stock, $32.00
303251845Self-Centering Washer GM 1/4"In stock, $10.00
313231174PlateNot sold onlineAsk a parts specialist
323225697Foraflon Air Hose D.8/6 L.1200mmIn stock, $94.00
333225683Air Hose FD 1/2" L.1000mmIn stock, $214.00
343225684Air Hose FD 1/2" L.1450mmIn stock, $270.00
353225680Compressor Suction Pipe Int. Diam 25 L.120mmIn stock, $103.00
363225679Diesel Engine Suction Pipe Int. Diam 51 L.330mmIn stock, $150.00
373225676Clamp 25-40In stock, $12.00
383225218Clamp 40-60Not sold onlineAsk a parts specialist
393225925Air Filter CartridgeIn stock, $302.00
403225926Safety Air Filter CartridgeIn stock, $178.00

04Specifications

Part details

Part number
3251845(3251-845)
Brand
IMER (genuine OEM)
Condition
New
Assembly
Pneumatic Circuit
Fits
1 machine

This self-centering washer is a genuine IMER part, part number 3251845. The IMER Prestige parts book lists it as Self-Centering Washer GM 1/4" in the hydraulic system connections assembly (TAV.10, ref. 6) and the water cleaner pump kit 1107208 (TAV.14, ref. 26), and as a self-centering washer GM in the pneumatic circuit (TAV.6, ref. 30).

Order by part number 3251845 to match the original IMER washer.

05Used with

Often replaced together

Wear parts next to it on the same drawing

06Documents

Parts books

07Shipping & returns

Shipped by IMER USA

Shipping & delivery →Returns & warranty →

  • Ships from IMER USA

    Shipped directly by IMER USA from its US warehouse, within 1–3 business days; ground delivery usually takes 5–7 business days.

  • Flat-rate shipping by size

    Parts ship at a flat rate by size, from $20. IMER machines ship free to commercial addresses in the contiguous US.

  • 30-day returns, restocking fee may apply

    30-day returns on unused items with a return authorization. Non-defective returns: 15% restocking fee (parts), 30% (machines), return freight paid by the buyer. See Returns

Fit check

Not sure it fits?

Send us the model and serial number from the machine’s serial plate, or a photo of it. A parts specialist checks the fit against the IMER parts books before the part ships.
