IMER Combicut 250/1000 VA parts book · Drawing 8

Ref 2

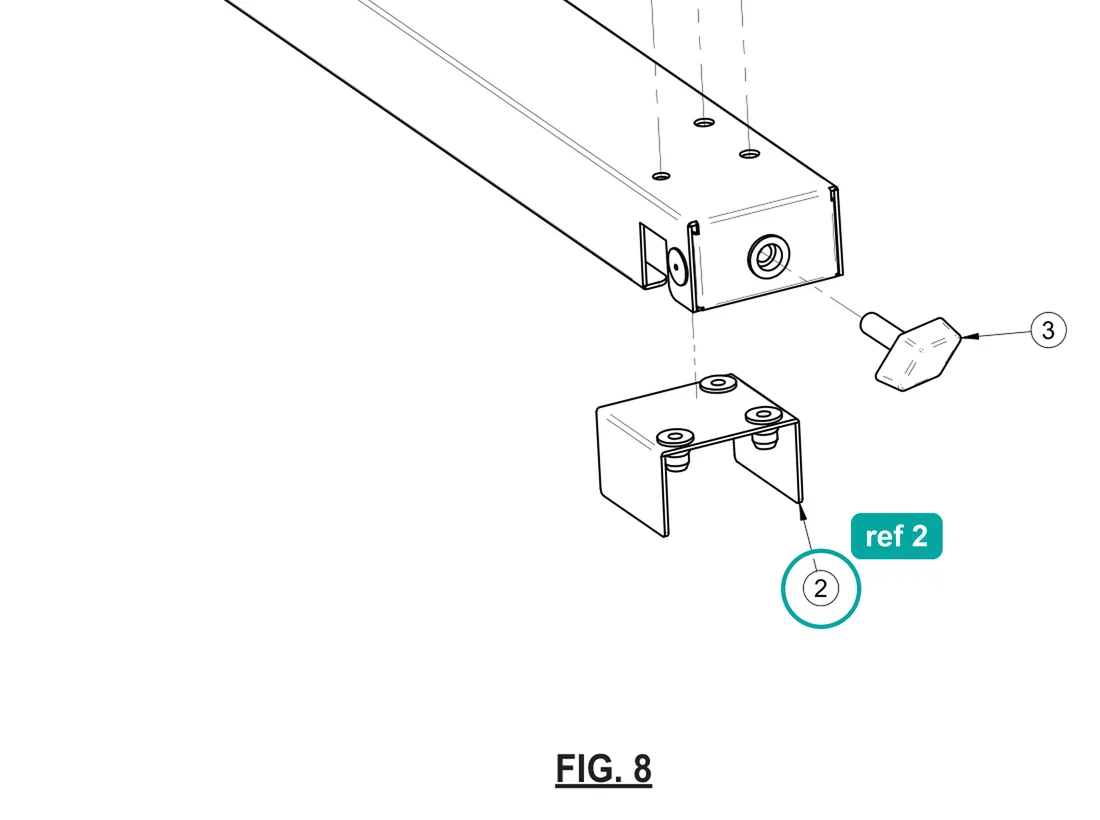

Sheet (ref 2) on the IMER Combicut 250/1000 VA Rip Guide drawing
Combicut 250/1000 VA parts book · Drawing 8, Rip Guide · Ref 2 · Open full diagram

01Where it fits

Where this part sits on your machine

Also on this drawing

All 4 parts on Drawing 8, Rip Guide
  • 3
    Handwheel M8×30

    3211381

    $10.00In stock

  • 1
    Stop

    3235757

    $78.00In stock

02Fits

Fits these machines

2 machines · 1 IMER parts book

From IMER parts book 3227118 r14 (2018-09).

03Where it sits

Ref 2 on the Combicut 250/1000 VA drawing

Open full diagram →
Combicut 250/1000 VA Rip Guide, exploded view with reference numbers
IMER Combicut 250/1000 VA · Drawing 8, Rip Guide. Select a number on the drawing to find its row.
Combicut 250/1000 VA — Rip Guide, parts list
RefPart no.NamePrice
13235757StopIn stock, $78.00
23235756SheetIn stock, $38.00
33211381Handwheel M8x30In stock, $10.00
42222016Bolt M6x40 Z UNI-5737Same code is listed as Bolt TE 5739 M6x20 Z in Tav. 1.5Not sold onlineAsk a parts specialist

04Specifications

Part details

Part number
3235756(3235-756)
Brand
IMER (genuine OEM)
Condition
New
Assembly
Rip Guide
Fits
2 machines

This is genuine IMER part number 3235756. The official IMER parts books list it as "Sheet" and show it for the IMER Combicut 250/1000 VA and Combicut 250/1500 VA.

Parts-book listings: Combicut 250/1000 VA and Combicut 250/1500 VA, table 8 (Rip Guide), ref 2.

Check that the part number on your old part or in your machine's parts list matches 3235756 before ordering, or contact us with your machine's model and serial number.
