IMER Prestige 300 parts book · Drawing 11

Ref 2
Hose SAE 100 R2A 3/8" L.2250 (ref 2) on the IMER Prestige 300 Hydraulic System Pipes Unit drawing
Prestige 300 parts book · Drawing 11, Hydraulic System Pipes Unit · Ref 2 · Open full diagram

01Where it fits

Where this part sits on your machine

Also on this drawing

All 16 parts on Drawing 11, Hydraulic System Pipes Unit

02Fits

Fits these machines

1 machine · 1 IMER parts book

From IMER parts book 3234338 r03 (2018-09).

03Where it sits

Ref 2 on the Prestige 300 drawing

Open full diagram →

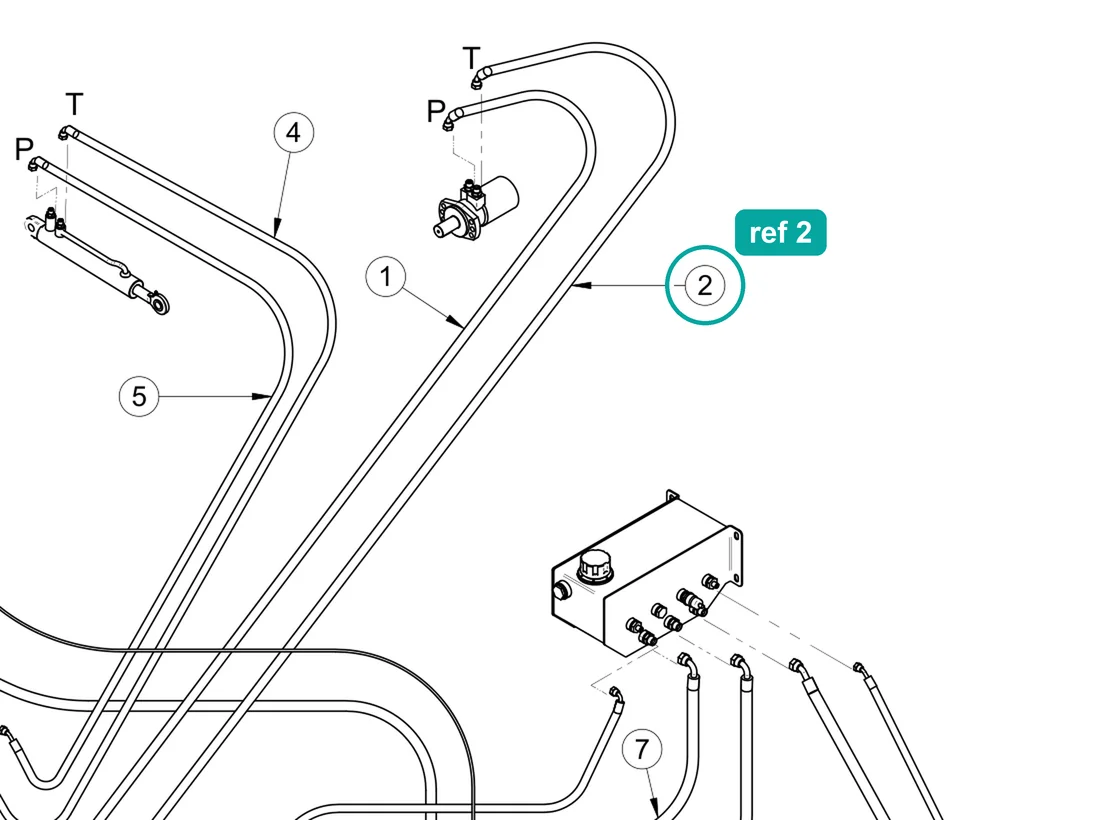

Prestige 300 Hydraulic System Pipes Unit, exploded view with reference numbers
IMER Prestige 300 · Drawing 11, Hydraulic System Pipes Unit. Select a number on the drawing to find its row.
Prestige 300 — Hydraulic System Pipes Unit, parts list
RefPart no.NamePrice
13230704Hose SAE 100 R2A 3/8" L.2280FP45 3/8" + FP45 3/8" 90°In stock, $67.00
23230705Hose SAE 100 R2A 3/8" L.2250FP45 3/8" + FP45 3/8" 90°In stock, $67.00
33230706Hose SAE 100 R1AT 1/2" L.650FP90 1/2" + FP90 1/2" 315°Not sold onlineAsk a parts specialist
43230707Hose SAE 100 R1AT 1/4" L.2200FP90 1/4" + FP45 1/4" 315°Not sold onlineAsk a parts specialist
53230708Hose SAE 100 R1AT 1/4" L.2280FP90 1/4" + FP45 1/4" 45°Not sold onlineAsk a parts specialist
63230709Hose SAE 100 R1AT 1/4" L.1000FP90 1/4" + FP45 1/4" 225°Not sold onlineAsk a parts specialist
73230710Hose SAE 100 R1AT 1/2" L.340FP90 1/2" + FP90 1/2" 200°Not sold onlineAsk a parts specialist
83230711Hose SAE 100 R1AT 1/2" L.440FP90 1/2" + FP 1/2"Not sold onlineAsk a parts specialist
93230714Hose SAE 100 R2AT 1/2" L.830FP90 1/2" + FP 1/2"Not sold onlineAsk a parts specialist
103231191Hose 4SH12HB 3/4" L.790FP90 3/4" + FP90 3/4" 80°Not sold onlineAsk a parts specialist
113231192Hose 4SH12HB 3/4" L.730FP90 3/4" + FP90 3/4" 80°Not sold onlineAsk a parts specialist
123230729Hose SAE 100 R1AT 1/2" L.1900FP90 1/2" + FP45 1/2" 135°Not sold onlineAsk a parts specialist
133230730Hose SAE 100 R1AT 1/2" L.1310FP90 1/2" + FP45 1/2"Not sold onlineAsk a parts specialist
143230867Hose SAE 100 R1AT 1/4" L.750FP90 1/4" + FP90 1/4"Not sold onlineAsk a parts specialist
153225600Mini Flexible Tube 2x5mm 600 Bar F.1/4" Ogive Seat + F.1/4" Flat Seat L.600Not sold onlineAsk a parts specialist
163230860Mini Flexible Tube 2x5mm 600 Bar F.1/4" Ogive Seat + F. M16x2 L.1300Not sold onlineAsk a parts specialist

04Specifications

Part details

Part number
3230705(3230-705)
Brand
IMER (genuine OEM)
Condition
New
Assembly
Hydraulic System Pipes Unit
Fits
1 machine

This is genuine IMER part number 3230705. The official IMER parts books list it as "Hose SAE 100 R2A 3/8" L.2250" and show it for the IMER Prestige 300.

Parts-book listings: Prestige 300, table 11 (Hydraulic System Pipes Unit), ref 2.

Check that the part number on your old part or in your machine's parts list matches 3230705 before ordering, or contact us with your machine's model and serial number.
