Sound-Absorbent Panel NO.4 for IMER Prestige 300 — IMER parts diagram, ref 13

01Where it fits

Where this part sits on your machine

Also on this drawing

All 16 parts on Drawing 9, Hood

02Fits

Fits these machines

1 machine · 1 IMER parts book

From IMER parts book 3234338 r03 (2018-09).

03Where it sits

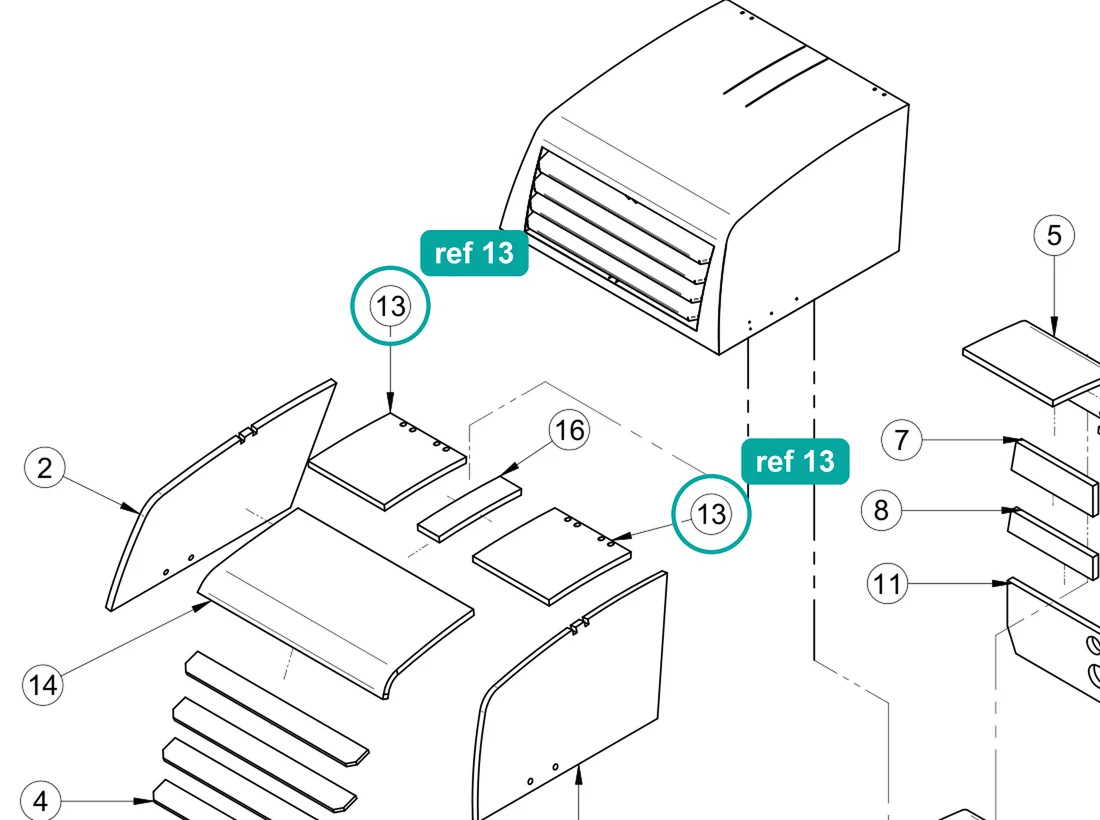

Ref 13 on the Prestige 300 drawing

Open full diagram →
Prestige 300 — Hood, parts list
RefPart no.NamePrice
13234264Sound-Absorbent PanelNot sold onlineAsk a parts specialist
23230675Sound-Absorbent Panel No.2In stock, $90.00
33230679Sound-Absorbent Panel No.6In stock, $90.00
43230694Sound-Absorbent Panel No.15In stock, $22.00
53230680Sound-Absorbent Panel No.7Not sold onlineAsk a parts specialist
63230681Sound-Absorbent Panel No.8Not sold onlineAsk a parts specialist
73230683Sound-Absorbent Panel No.10Not sold onlineAsk a parts specialist
83230684Sound-Absorbent Panel No.11Not sold onlineAsk a parts specialist
93230685Sound-Absorbent Panel No.12Not sold onlineAsk a parts specialist
103230687Sound-Absorbent Panel No.14Not sold onlineAsk a parts specialist
113230686Sound-Absorbent Panel No.13Not sold onlineAsk a parts specialist
123230693Wall Side Sponge PanelNot sold onlineAsk a parts specialist
133230677Sound-Absorbent Panel No.4In stock, $41.00
143230676Sound-Absorbent Panel No.3In stock, $82.00
153230682Sound-Absorbent Panel No.9Not sold onlineAsk a parts specialist
163230678Sound-Absorbent Panel No.5In stock, $16.00

04Specifications

Part details

Part number
3230677(3230-677)
Brand
IMER (genuine OEM)
Condition
New
Assembly
Hood
Fits
1 machine

This is genuine IMER part number 3230677. The official IMER parts books list it as "Sound-Absorbent Panel No.4" and show it for the IMER Prestige 300.

Parts-book listings: Prestige 300, table 9 (Hood), ref 13.

Check that the part number on your old part or in your machine's parts list matches 3230677 before ordering, or contact us with your machine's model and serial number.

05Documents

Parts books

06Shipping & returns

Shipped from the USA

Shipping & delivery →Returns & warranty →

  • Ships from the USA

    Leaves us in 1–3 business days; ground delivery usually takes 5–7 business days.

  • Free shipping over $1,500

    On orders over $1,500 to commercial addresses in the contiguous US.

  • 30-day returns

    30-day returns on unused items with a return authorization.

Fit check

Not sure it fits?

Send us the model and serial number from the machine’s serial plate, or a photo of it. A parts specialist checks the fit against the IMER parts books before the part ships.
