Belt 530 J6 – genuine IMER part 3209049 for IMER Workman 250

01Where it fits

Where this part sits on your machine

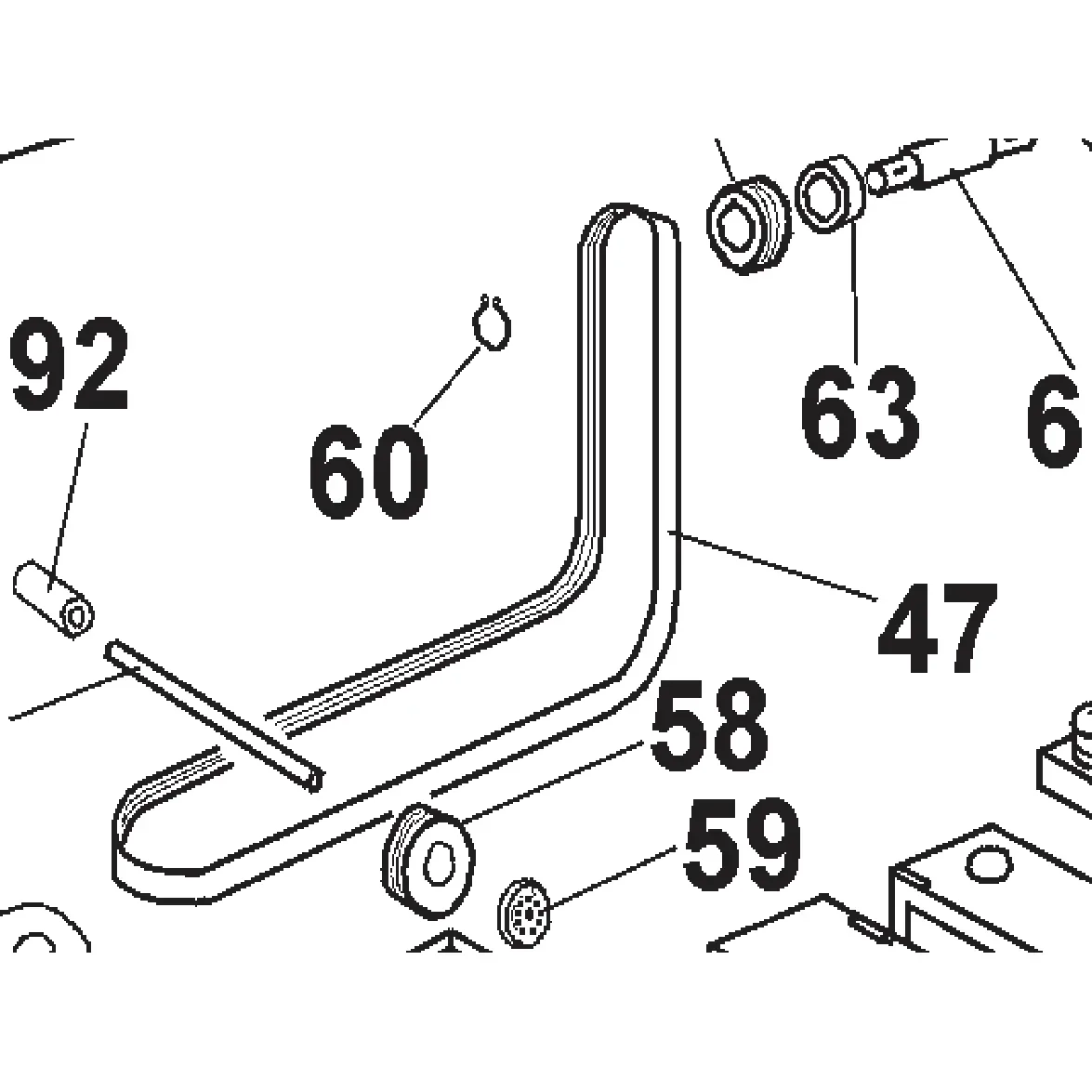

  • Drawing 1.3 · Ref 47

    IMER Workman 250

    Workman II 250 Concrete Mixer (1105849-1105850)

    View on the drawing

02Fits

Fits these machines

1 machine · 1 IMER parts book

From IMER parts book 3209290 r11 (2019-02).

03Specifications

Part details

Part number
3209049(3209-049)
Brand
IMER (genuine OEM)
Condition
New
Assembly
Workman II 250 Concrete Mixer (1105849-1105850)
Fits
1 machine

This belt is a genuine IMER part, part number 3209049. The IMER Workman II 250 parts book lists it as ref. 47, "Belt 530 J6", on drawing 1.3, Workman II 250 Concrete Mixer (1105849-1105850).

The same drawing also lists a motor belt (2210950), so check part number 3209049 against your machine's parts list or the belt you are removing before you order.
