01Where it fits
Where this part sits on your machine
02Fits
Fits these machines
3 machines · 2 IMER parts books
From IMER parts books 3228768 r12 (2019-02), 3209290 r11 (2019-02).
03Specifications
Part details
This is genuine IMER part number 3206690. The official IMER parts books list it as "Drum Locking Screw" and show it for the IMER Syntesi 190 EL, Syntesi 250 EL, Syntesi 300 EL and 2 more models.

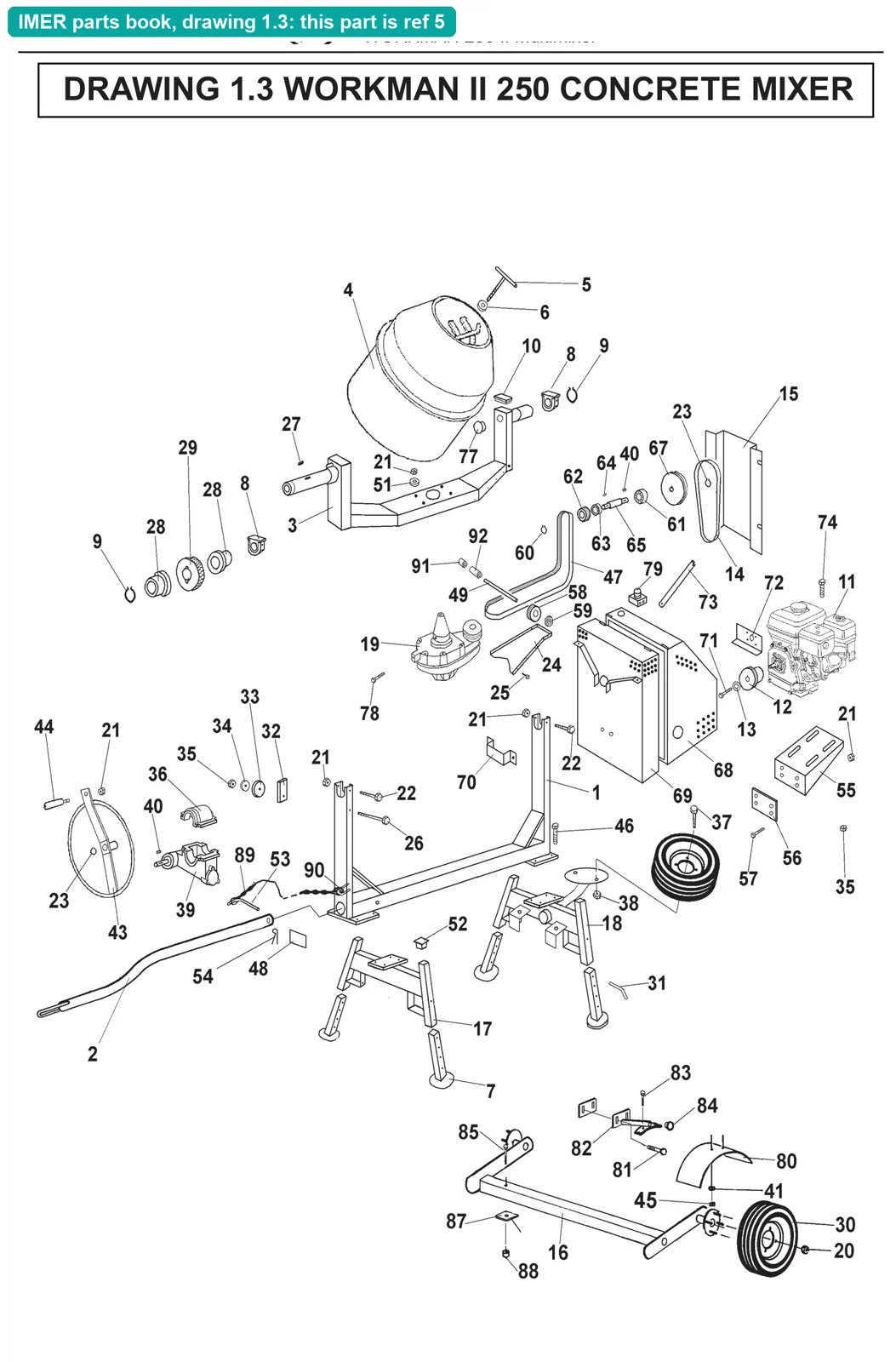

Parts-book listings: Workman II 250, table 1.3 (Workman II 250 Concrete Mixer (1105849-1105850)), ref 5; Syntesi 190 EL, Syntesi 250 EL, Syntesi 300 EL and Syntesi 350 EL, table 1/A (Machine Structure (Syntesi 190-250)), ref 23.
Check that the part number on your old part or in your machine's parts list matches 3206690 before ordering, or contact us with your machine's model and serial number.
04Documents
Parts books
Answers
Questions about the machines it fits
05Shipping & returns
Shipped from the USA
Fit check
Not sure it fits?
Send us the model and serial number from the machine’s serial plate, or a photo of it. A parts specialist checks the fit against the IMER parts books before the part ships.
