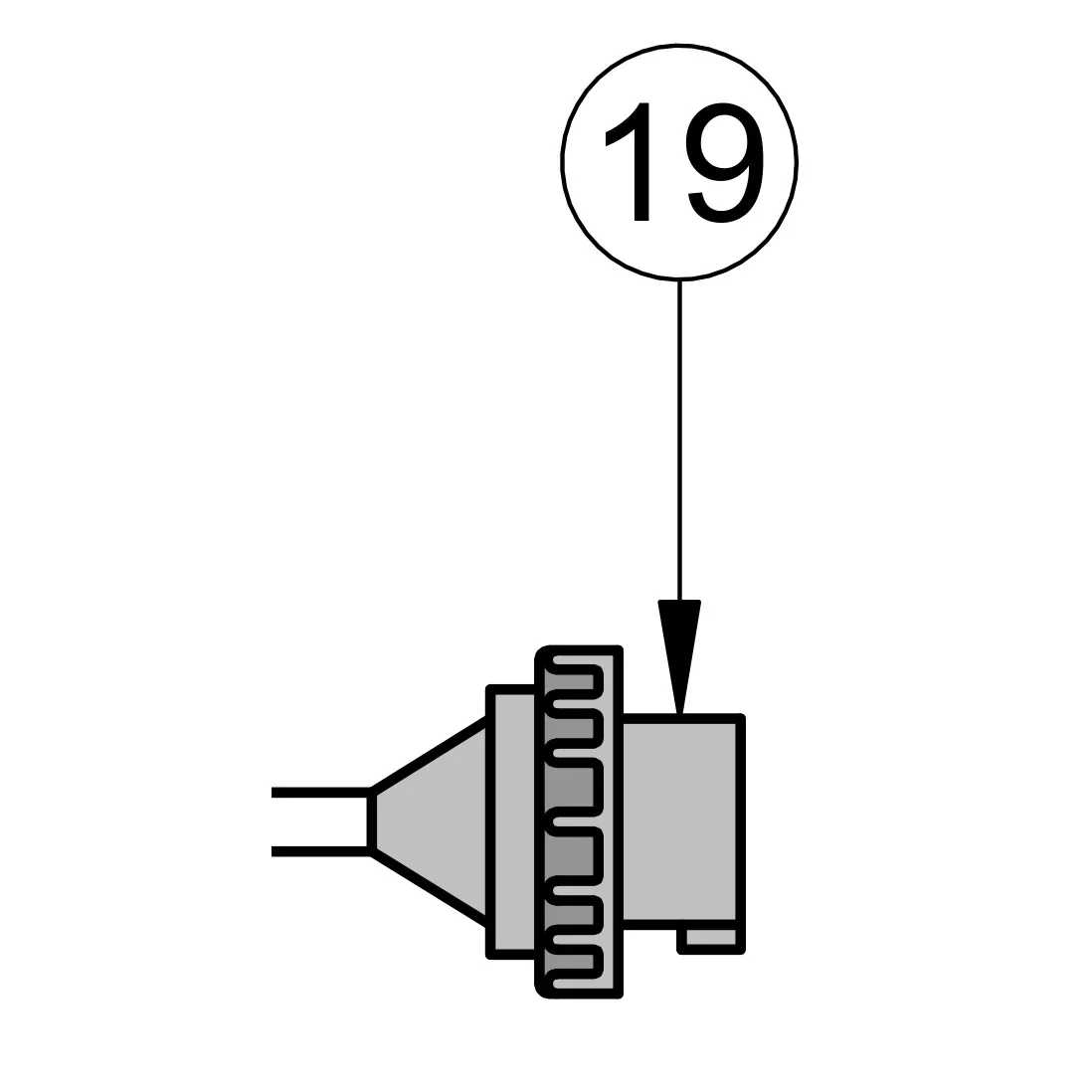

Ref 19 on the Combicut 350 iPower drawing
04Specifications
Part details
This plug is a genuine IMER part, part number 3203504. The Step 120 parts book lists it as ref. 11 in the Electrical Panel STEP220V 3229670 (Table 5) and describes it as plug 230V 2P+T 16A 6H IP67.
It is also listed on the Small 50 as ref. 9 in the Vibrating Screen 1107548 (Table 4, handwheel plug V220 IP67 16A) and on the Combicut 350 iPower as ref. 19 in the electric panel (Table 7, plug 2P+GND). Check part number 3203504 against your machine's parts list before ordering.
