IMER Wheelman II Wheelbarrow Mixer, Honda 3 hp, Poly Drum – IMER part 1105426Free shipping

01About

About this machine

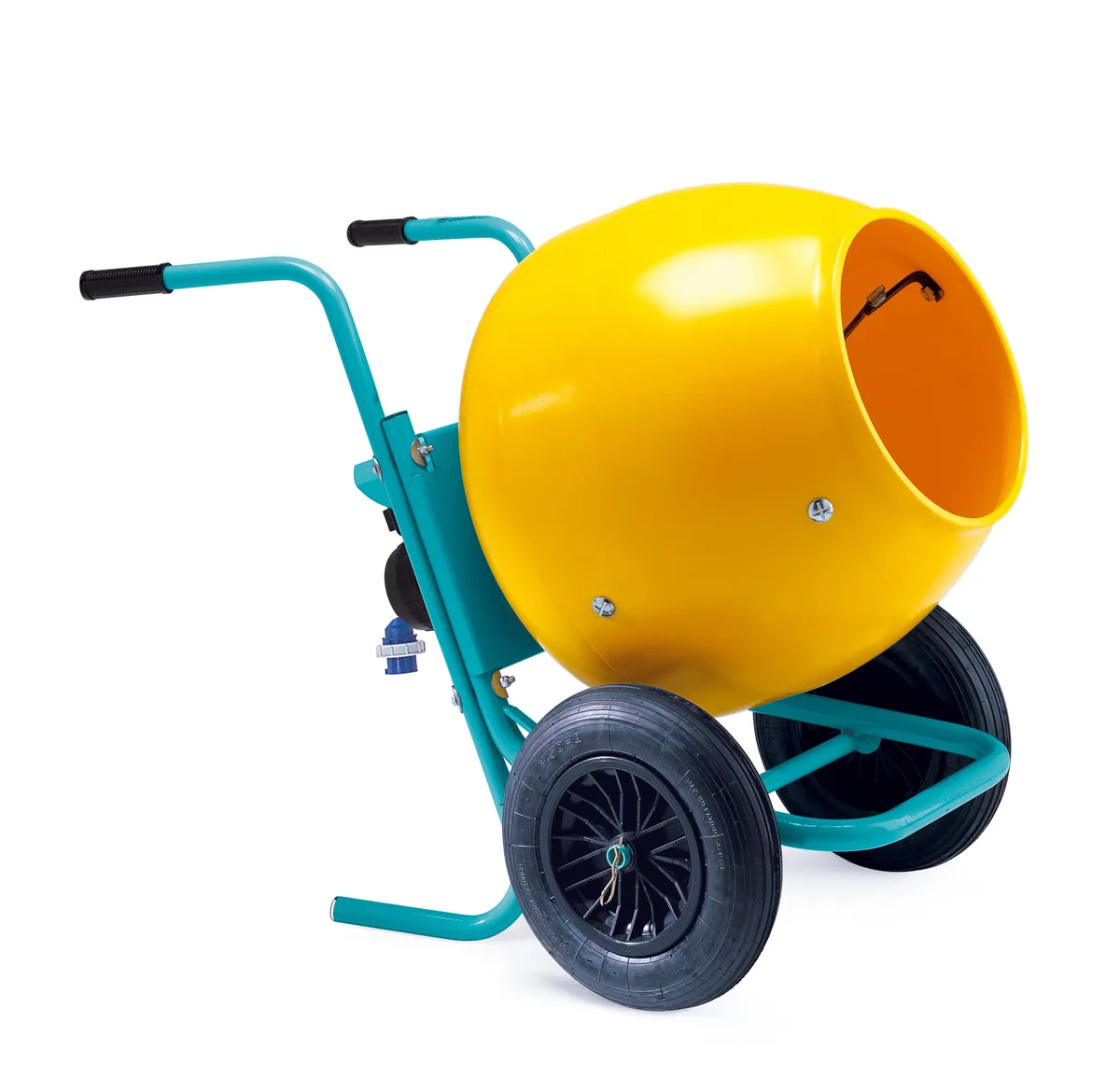

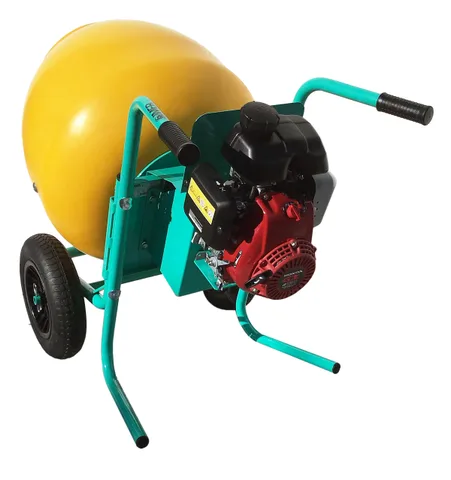

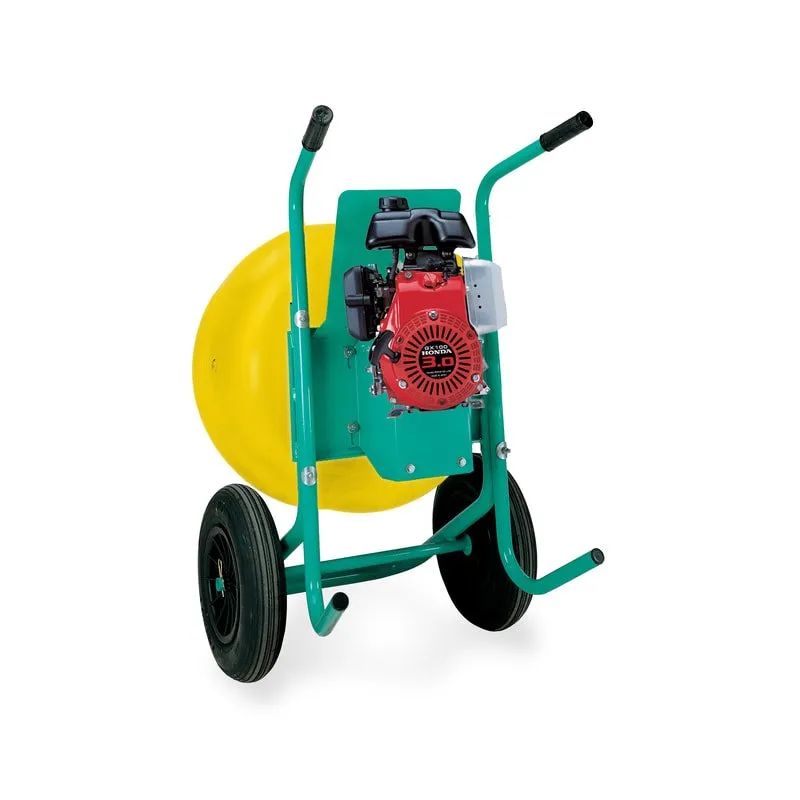

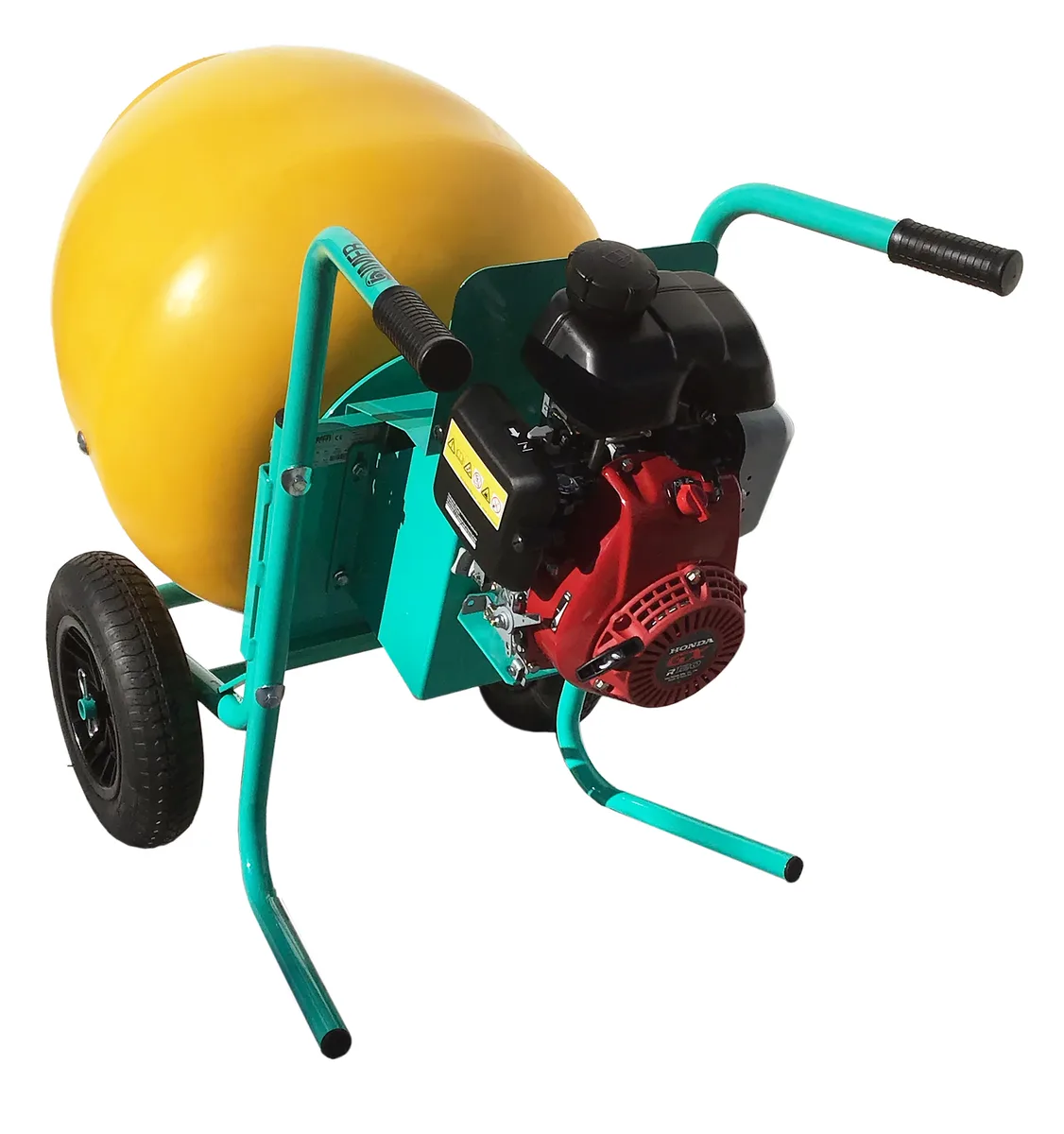

The IMER Wheelman II, model 1105426, is a wheelbarrow-style portable mixer for mortar, stucco, grout and concrete. It is a beltless, gear-driven mixer powered by a Honda 3 hp gas engine with direct gear drive. You can mix, move the load and dump it right at the work area. It has a removable drum that one person can load into a small vehicle.

The 5 cu ft poly drum is 24 in in diameter and produces a 2.5 cu ft batch. It is spun-injected polyethylene, a plastic forming process that produces a round drum. The mixer rolls on 14 in pneumatic tires, weighs 115 lbs and is easy to transport and assemble. Discharge outlet height is 8 in, or 21 in on the optional stand (item # 1105490). Operating dimensions are 26 in wide, 46 in long and 36 in high; palletized, it measures 26 x 29 x 27-1/2 in.

The Wheelman II is also offered with a 1/2 hp electric motor and a poly or steel drum (models 1105421 and 1105422).

02Specifications

IMER Wheelman II Gas technical data

From the IMER product sheet

Capacity

Drum capacity
5 cu ft
Batch output
2.5 cu ft

Power

Motor
Honda 3 hp

Dimensions

Drum diameter
24 in
Discharge outlet height
8 in / 21 in with stand
Wheel size
14 in pneumatic tires
Operating width (palletized)
26 in (26 in)
Operating length (palletized)
46 in (29 in)
Operating height (palletized)
36 in (27-1/2 in)

Weight

Weight
115 lbs

03Shipping

Shipping and lead time

Ships from the USA
Lead time
Usually ships in 2–3 weeks. IMER machines come from Italy and some are assembled to order or back-ordered, so we confirm the ship date after you order.
Delivery
LTL freight, 7–10 business days in transit. Free to commercial addresses in the contiguous US; residential and/or liftgate delivery adds one flat $75. Ships to the USA and Canada (not to Quebec). Shipping conditions
Returns
30-day returns. Return policy
