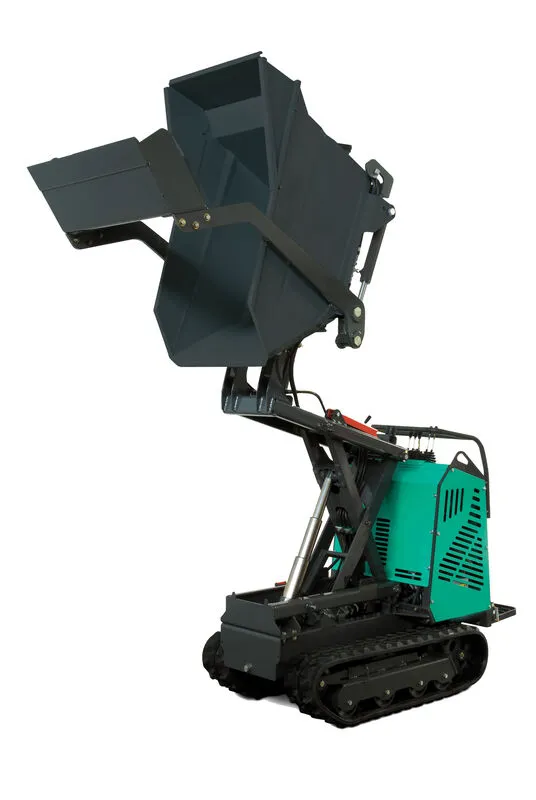

IMER Tracker 1215 Gas Hi-Tip Tracked Dumper, 13 HP Honda GX – IMER part 5107002Free shipping

01About

About this machine

IMER Tracker 1215 Gas Hi-Tip Tracked Dumper, 13 HP Honda GX.

IMER part number 5107002.

Tracker 1215 Gas - Hi-Tip with Self Loading Shovel - 13 HP Honda GX. IMER part number 5107002.

Sold new by IMER Parts USA. Authorized IMER dealer. Ships from the USA.

02Specifications

IMER Tracker 1215 technical data

From the IMER product sheet

General

Model #
5107001

Power

Engine
Honda GX390, 13 hp
Start
Electric

Weight

Machine weight
950 lbs.

Capacity

Operating load
1,543 lbs.
Payload capacity
11.6 cu ft

Performance

Speed
2.5 mph
Max slope when empty
15° - 26%
Max slope when loaded
7° - 12% (variable based on configuration)

Dimensions

Ground clearance
4 in
Length
72 in
Height
44.5 in
Width
30 in (tracks extend to nearly 42 in)
Unloading height (hi-tip bucket)
63 in

03Shipping

Shipping and lead time

Ships from the USA
Lead time
Usually ships in 2–3 weeks. IMER machines come from Italy and some are assembled to order or back-ordered, so we confirm the ship date after you order.
Delivery
LTL freight, 7–10 business days in transit. Free to commercial addresses in the contiguous US; residential and/or liftgate delivery adds one flat $75. Ships to the USA and Canada (not to Quebec). Shipping conditions
Returns
30-day returns. Return policy
