IMER Tracker 1215 Electric Hi-Tip Tracked Dumper, 4 HP Lithium – IMER part 5107006

01About

About this machine

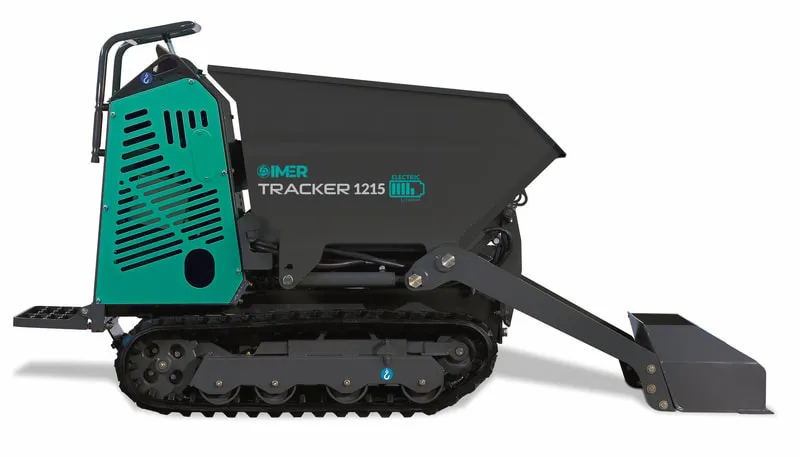

IMER Tracker 1215 Electric Hi-Tip Tracked Dumper, 4 HP Lithium.

IMER part number 5107006.

Tracker 1215 Electric - Hi-Tip with Self Loading Shovel - 4 HP Lithium. IMER part number 5107006.

Sold new by IMER Parts USA. Authorized IMER dealer. Ships from the USA.

02Specifications

IMER Tracker 1215E technical data

From the IMER product sheet

General

Model #
5107003

Power

Motor
4 HP Electric
Batteries
3 swappable fast-charging lithium batteries

Weight

Machine weight
1,315 lbs.

Capacity

Operating load
1,543 lbs.
Payload capacity
11.6 cu ft

Performance

Speed
2 mph
Speeds
6 (3 electric x 2 hydraulic)
Max slope when empty
15° - 26%
Max slope when loaded
7° - 12% (variable based on configuration)

Dimensions

Ground clearance
4 in
Length
72 in
Height
44.5 in
Width
30 in

03Shipping

Shipping and lead time

Ships from the USA
Lead time
Usually ships in 2–3 weeks. IMER machines come from Italy and some are assembled to order or back-ordered, so we confirm the ship date after you order.
Delivery
LTL freight, 7–10 business days in transit. Free to commercial addresses in the contiguous US on orders over $1,500; residential delivery adds $150 and a liftgate $150. Ships to the USA and Canada (not to Quebec). Shipping conditions
Returns
30-day returns. Return policy
