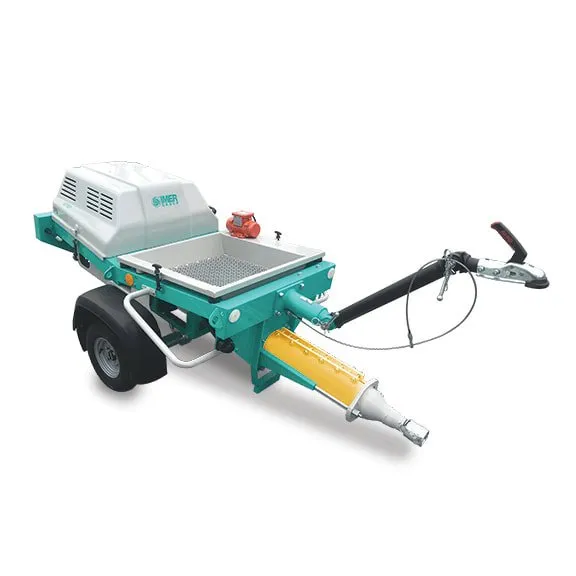

IMER Step-Up 120 A High-Flow Progressive Cavity Pump, 10 HP – IMER part 1106054Free shipping

01About

About this machine

The IMER Step-Up 120 A (model 1106054) is a high-flow progressive cavity pump for self-leveling materials and non-shrink grouts. It is rated at 9.5 cubic yards per hour and is designed to run quietly in restricted job site environments. It can also pump or spray mortars, stuccos, grouts, restoration mortars, underlayments, fireproofing, waterproofing and similar materials.

Standard equipment includes a three-phase 10 hp motor rated for 100% duty cycle (confirm the three-phase supply voltage with us before ordering), an electric control panel, a built-in low-voltage electric remote control with 120 ft of cable, 133 ft and 66 ft power supply cords, a 60.12 rotor/stator, a vibrating grid, 33 ft of 50 mm (2 in) hose and an accessory box.

Options include a non-towing wheel kit (1107633), 33 ft hoses in 35 mm (1107528) and 50 mm (1107533), a grate for premixed material (1107569), a 50 mm to 35 mm hose reducer (1106178), a shotcrete gun (1106250), a pintle tow ring (1107161), and 2L6 (1107088) or IM25L (1107149) rotor/stator kits.

02Shipping

Shipping and lead time

Shipped by IMER USA
Lead time
Usually ships in 2–3 weeks. The machine is ordered from IMER for you; some are assembled to order or back-ordered, so we confirm the ship date after you order. Expected ship date for an order placed today: Dec 13, 2026. IMER USA ships it directly to you.
Delivery
LTL freight, 7–10 business days in transit. Free to commercial addresses in the contiguous US; residential and/or liftgate delivery adds one flat $75. Ships to the USA and Canada (not to Quebec). Shipping conditions
Returns
30-day returns. Non-defective returns: 15% restocking fee (parts), 30% (machines), return freight paid by the buyer. See Returns
