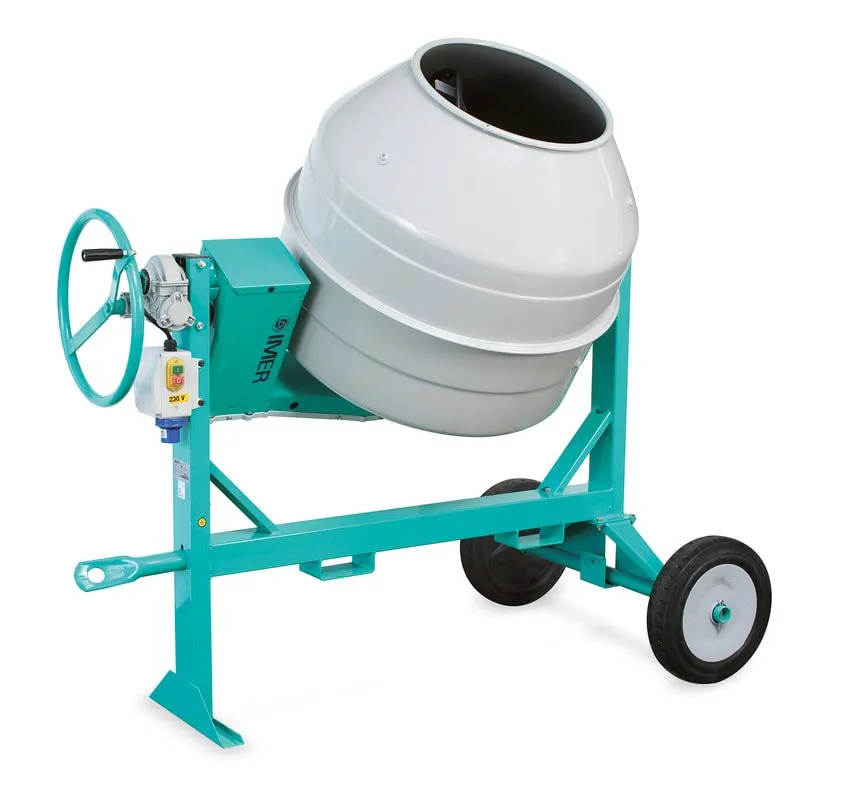

IMER Multi-Mix 350 Syntesi Portable Concrete Mixer, 12 cu ft – IMER part 1105802Free shipping

01About

About this machine

The IMER Multi-Mix 350 Syntesi, model 1105802, is a portable, non-towable drum mixer for large batches of mortar, stucco, grout or concrete. It has a 12 cu ft steel drum with a 9.5 cu ft batch output and a 120V single-phase electric motor, rated 2 hp on IMER's product sheet and 1.5 hp on the 2026 IMER dealer list. IMER describes it as the larger companion to the Wheelman II and Minuteman II mixers.

The drum is driven through a direct-drive oil bath gearbox built into the arm, sealed for life, with no external drive gears. A worm screw tilting system with Posi-lock locks and unlocks automatically, and the mixing blades are welded and screwed in place.

The mixer has a box steel frame. IMER lists it at 385 lbs, 32-1/2 in wide and 63 in high. It rolls on 15 in wheels and has a slide-out bar for moving it around the job site and forklift pockets for transport.

In IMER's Syntesi 190-350 EL parts book this model is listed as the Syntesi 350 EL, code 1105802 (115V/60Hz).

02Specifications

IMER Multi-Mix 350 technical data

From the IMER product sheet

General

Model #
1105802

Capacity

Drum capacity
12 cu ft
Batch output
9.5 cu ft

Power

Motor
2 hp, 120V electric

Dimensions

Wheel diameter
15 in
Width
32-1/2 in
Length
63-1/4 in
Height
63 in

Weight

Weight
385 lbs

Performance

Noise level
<79 dB

03Shipping

Shipping and lead time

Shipped by IMER USA
Lead time
Usually ships in 2–3 weeks. The machine is ordered from IMER for you; some are assembled to order or back-ordered, so we confirm the ship date after you order. Expected ship date for an order placed today: Nov 21, 2026. IMER USA ships it directly to you.
Delivery
LTL freight, 7–10 business days in transit. Free to commercial addresses in the contiguous US; residential and/or liftgate delivery adds one flat $75. Ships to the USA and Canada (not to Quebec). Shipping conditions
Returns
30-day returns. Non-defective returns: 15% restocking fee (parts), 30% (machines), return freight paid by the buyer. See Returns
  • Authorized IMER DealerMachines, parts & warranty support
  • Genuine IMER OEM partsOriginal part numbers only
  • Parts ship from IMER USAMachines in 2–3 weeks, date confirmed after you order
  • 30-day returns, restocking fee may applyUnused items with a return authorization (RMA)
