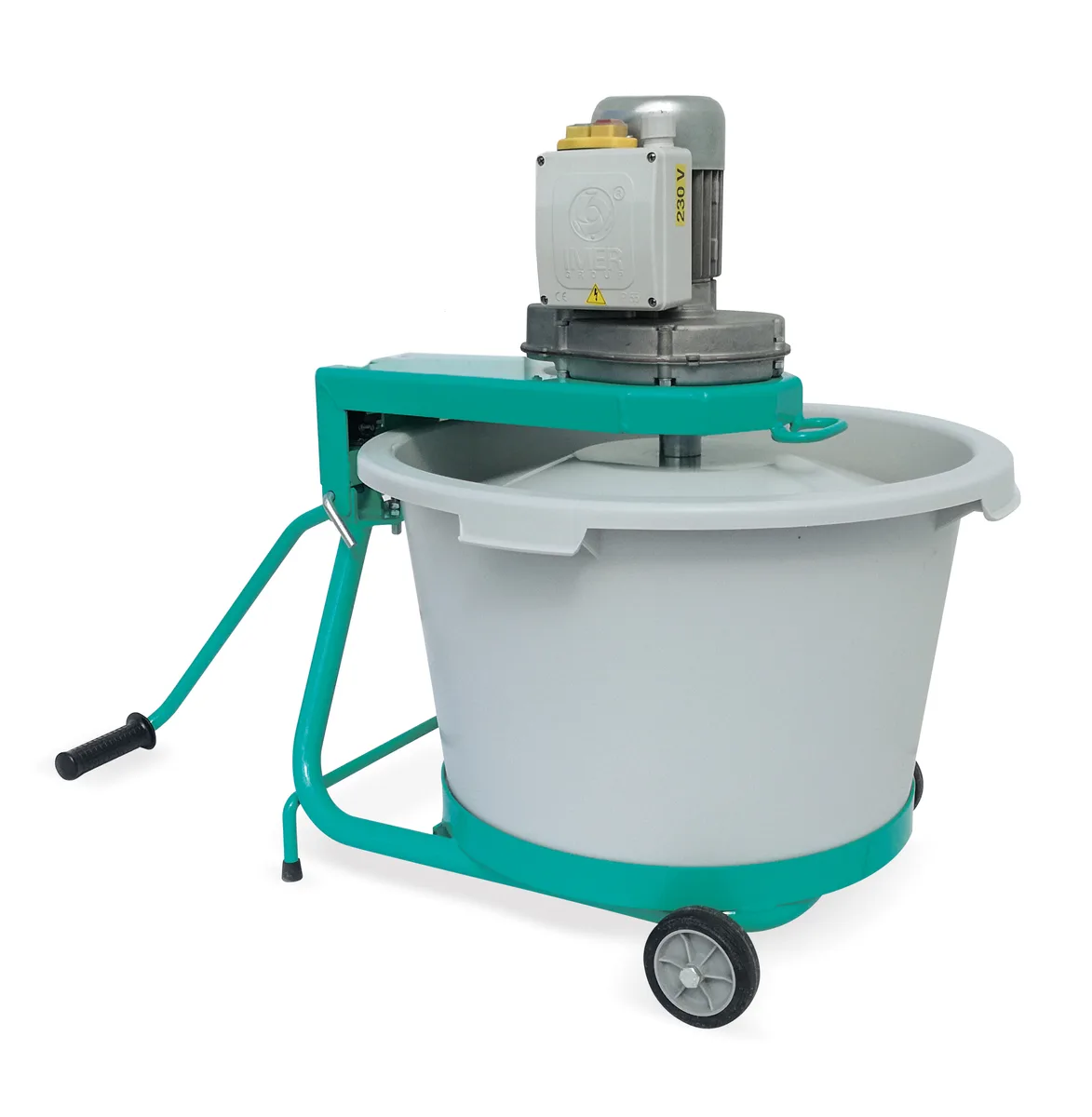

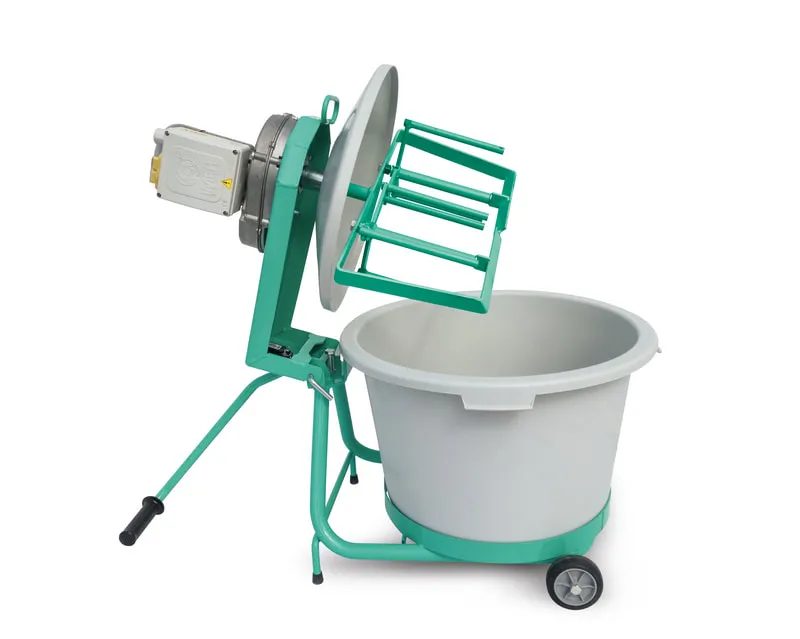

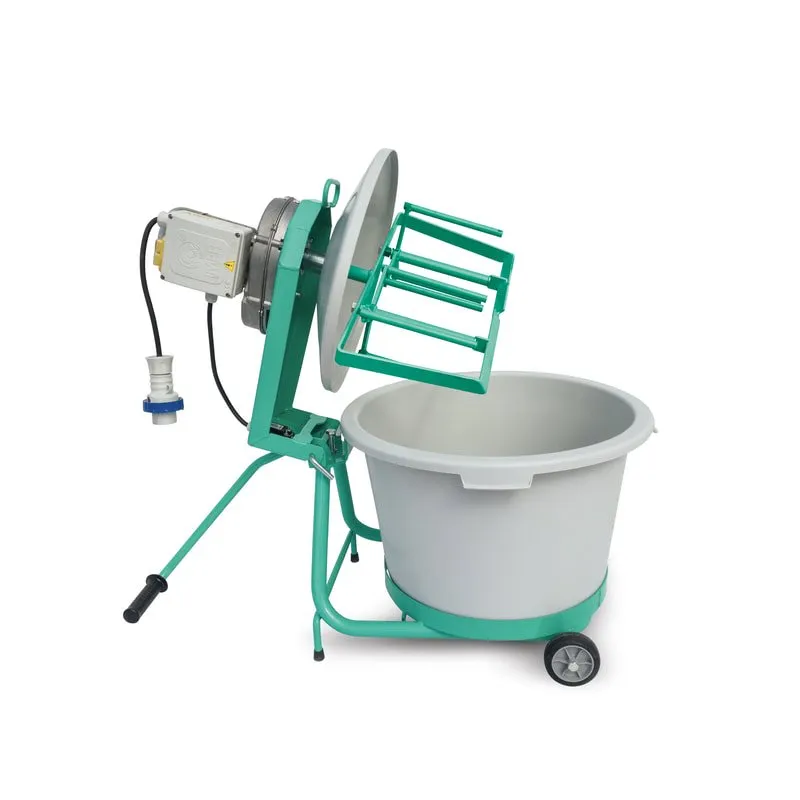

IMER Mix-All 60 Portable Paddle Mixer, 14 gal – IMER part 1193988

01About

About this machine

The IMER Mix-All 60 (model 1193988) is a portable, one-person electric paddle mixer for mortar, stucco, thin set, dry pack mortar, epoxy, plaster and rubber materials. It is built for repair work, for example mixing mortar in an attic to tuckpoint a chimney.

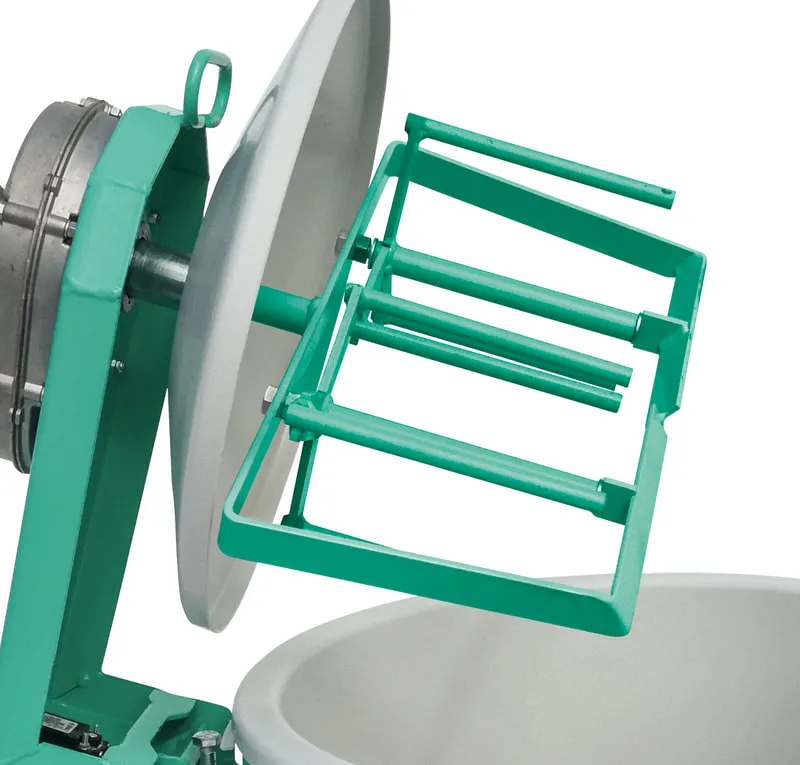

A 3/4 hp, 120V motor drawing 10 amps drives the paddle through a high-torque gearbox at 55 rpm, with a noise level of 70 dB(A). The 14 gal drum is 24 in in diameter and gives a batch output of 12 gal, or one 50 lb bag, with a maximum aggregate size of 3/8 in. A protective cover keeps hands away from spinning parts.

The machine weighs 66 lbs (70 lbs boxed) and measures 23 in wide, 25 in long and 31-1/4 in high. It rolls on 4 in pneumatic wheels, like a piece of luggage, and comes with 2 plastic mixing buckets. For continuous production, run two or three mixers in rotation so one is always mixing.

Optional equipment: a 5 pack of buckets (1193968) and an alternative mixing paddle (3205587).

02Specifications

IMER Mix-All 60 technical data

From the IMER product sheet

General

Model #
1193988

Capacity

Drum capacity
14 gal
Batch output
12 gal / 50 lb bag
Drum diameter
24 in
Maximum aggregate size
3/8 in

Performance

Paddle speed
55 rpm
Noise
70 dB(A)

Power

Motor rating
3/4 hp, 120V
Current draw
10 amps

Weight

Machine weight (boxed)
66 lbs (70 lbs)

Dimensions

Width (boxed)
23 in (23 in)
Length (boxed)
25 in (24 1/2 in)
Height (boxed)
31 1/4 in (18 in)

Accessories

5 pack of buckets
Model #1193968
Alternative mixing paddle
Model #3205587

03Shipping

Shipping and lead time

Ships from the USA
Lead time
Usually ships in 2–3 weeks. IMER machines come from Italy and some are assembled to order or back-ordered, so we confirm the ship date after you order.
Delivery
LTL freight, 7–10 business days in transit. Free to commercial addresses in the contiguous US on orders over $1,500; residential delivery adds $150 and a liftgate $150. Ships to the USA and Canada (not to Quebec). Shipping conditions
Returns
30-day returns. Return policy
