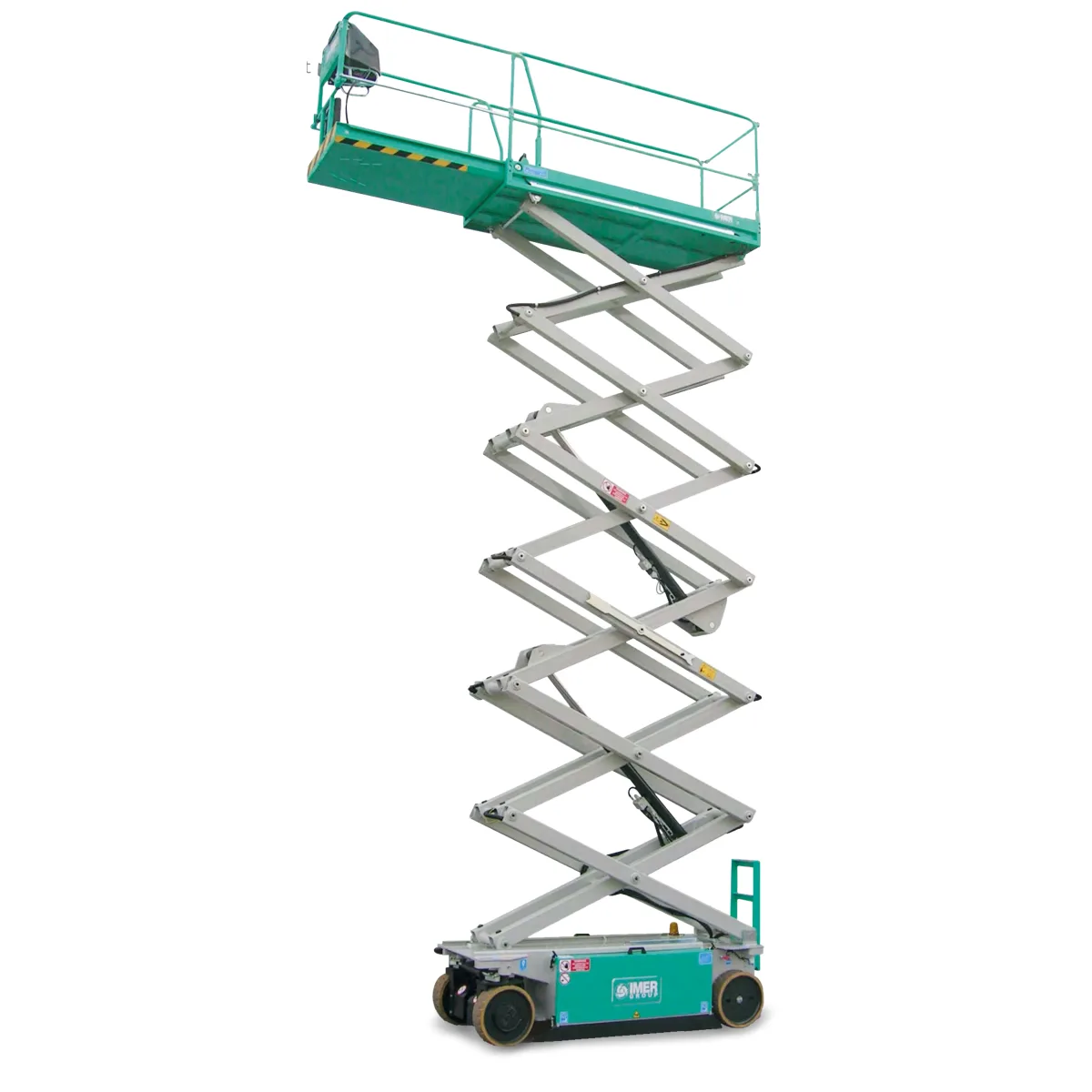

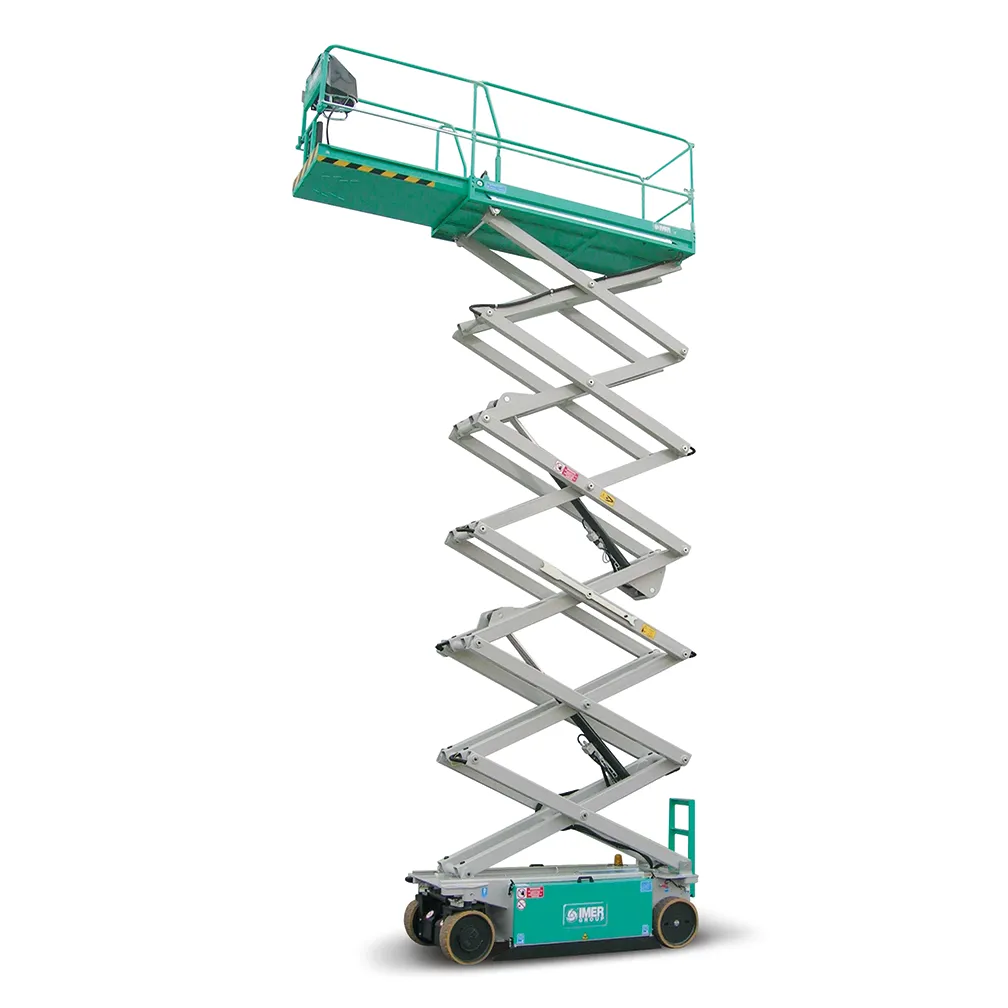

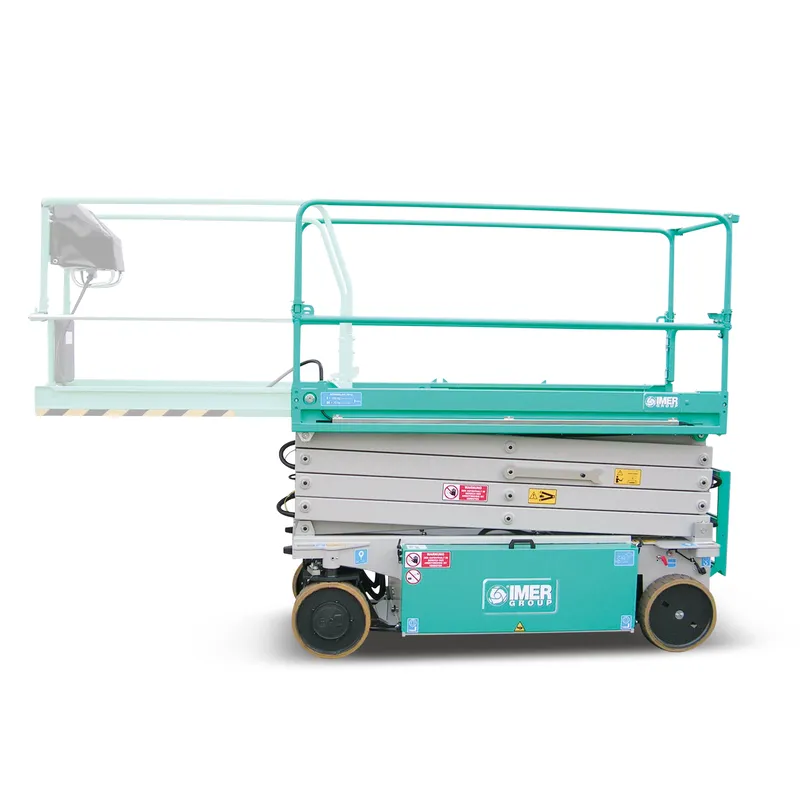

The IMER IM 3540 E is an electric scissor lift in the IM 35 series, model number 1128506. It has a 40 ft platform height and a 46 ft working height on a 35 in wide chassis. Capacity is 510 lb for two people. The 7 ft 5 in platform extends to 11 ft 8 in with the 51 in manual deck extension.

The lift has a zero inside turning radius, and the operator can drive in any position, including at full height. Top speed is 2.5 mph (0.4 mph safety speed), with 25% gradeability. Power comes from 24 V / 4.0 HP drive motors and lifting power pack, 24 V / 182 Ah (C5) traction batteries and a 24 V / 20 A charger. Stowed height is 8 ft 7 in, and weight is 7,011 lb on 16 x 5 in non-marking cushion tires.

Standard equipment includes negative electromagnetic parking brakes, manual emergency lowering, pothole protection, a tilt meter with motion cut-out, platform weight management, AC power to the platform and proportional controls with diagnostics. The 120 V cable with plug, socket and safety cut-out is standard on US models. IMER lists the lift as ANSI 92.20 / CSA / CE & EN280 approved.
