IMER IM 3113 Micro Electric Scissor Lift, 19 ft Working Height – genuine IMER part 1128908Free shipping

01About

About this machine

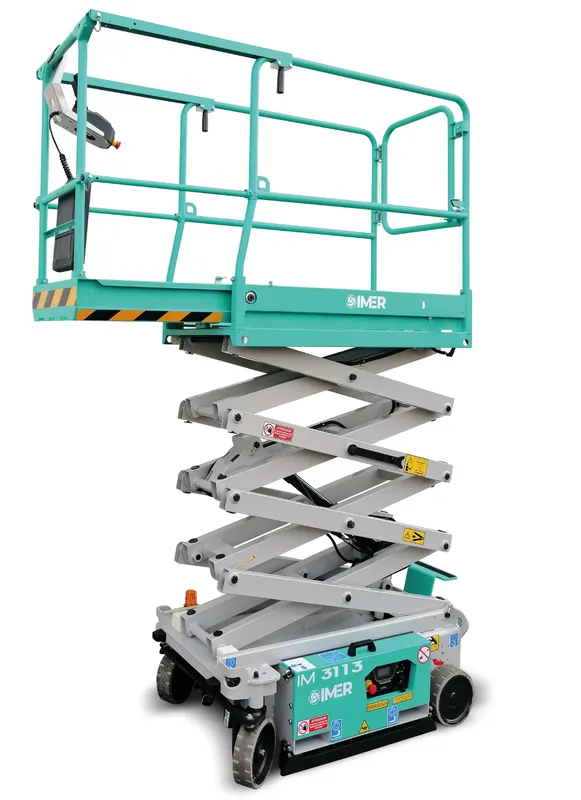

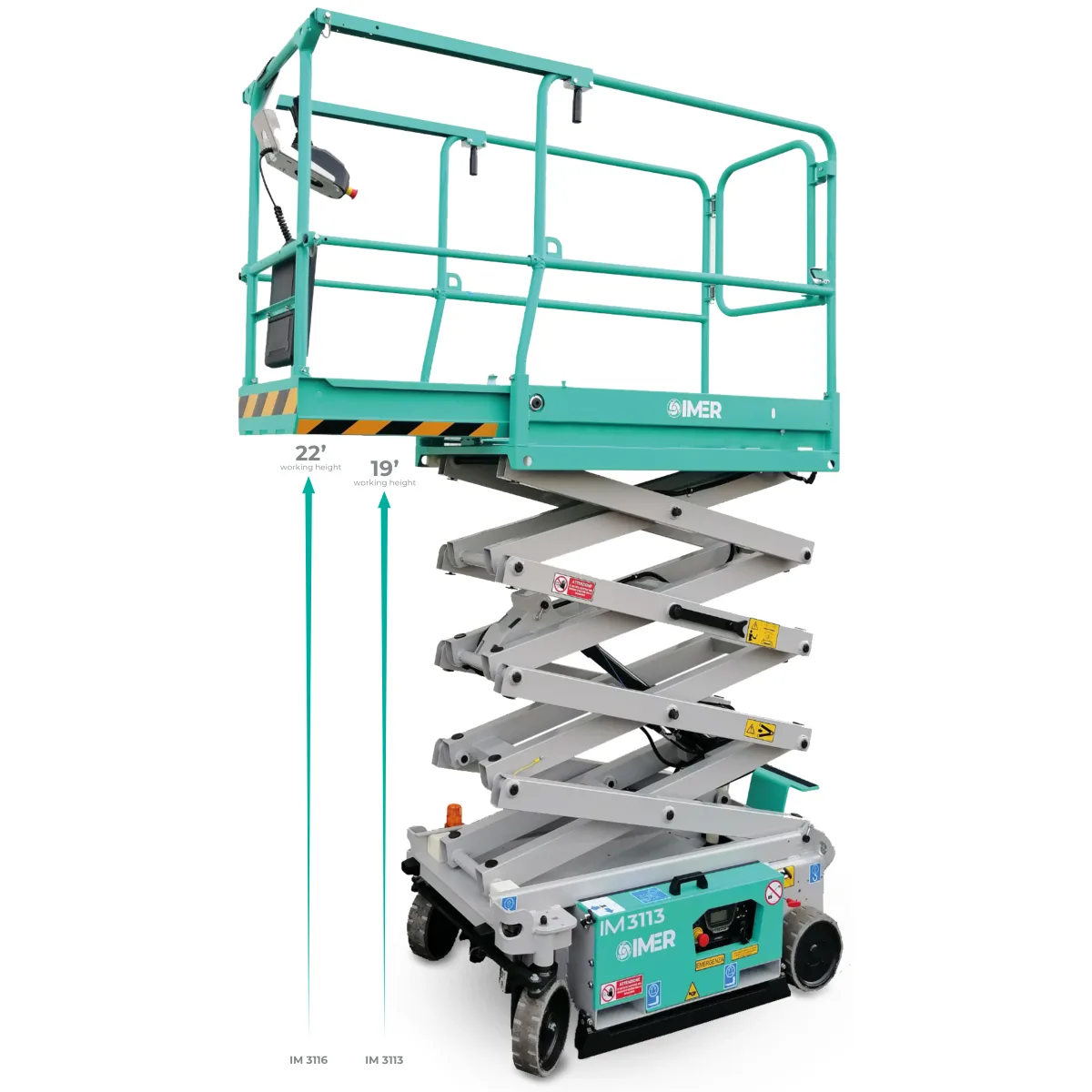

The IMER IM 3113 is a micro electric scissor lift for indoor and outdoor use, model number 1128908. Three scissors raise the platform to 13 ft indoors (7 ft 4 in outdoors), for a working height of 19 ft indoors and 13 ft 11 in outdoors. The platform is rated for 507 lb and one operator; the 2 ft 2 in manual platform extension is rated for 287 lb.

The lift is 2 ft 6 in wide, 4 ft 11 in long (4 ft 5 in without the ladder) and 6 ft 3 in high stowed, with a folded height of 4 ft 8 in. It has front electric steering, a 9.5 in inside and 61 in outside turning radius, and the operator can drive in any position, including at full height. Top speed is 2.5 mph (0.4 mph safety speed), with 25% gradeability.

Power comes from 24 V DC traction motors and two 12 V / 85 Ah AGM batteries. The hydraulic components are mounted on the lower frame, which has integrated forklift pockets, and the ground control panel has an integrated display for data retrieval and troubleshooting. Weight is 1,543 lb on 9.8 x 3.1 in cushion tires.

02Specifications

IMER IM 3113 technical data

From the IMER product sheet

General

Model #
1128908
Number of scissors
3

Performance

Platform height
13' indoor / 7' 4" outdoor3,800 mm indoor / 2,250 mm outdoor
Working height
19' indoor / 13' 11" outdoor5,800 mm indoor / 4,250 mm outdoor
Max. lateral/longitudinal inclination
1.50° / 3.00°
Max driving speed
2.5 mph4 km/h
Safety speed
0.4 mph0.6 km/h
Gradeability
25%
Internal turning radius
9.5"0.24 m
External turning radius
61"1.55 m

Dimensions

Stowed height
6' 3"1900 mm
Folded height
4' 8"1410 mm
Length (without ladder)
4' 11" (4' 5")1490 mm (1335 mm)
Width
2' 6"780 mm
Platform extension
2' 2"660 mm

Capacity

Platform capacity
507 lbs230 kg
Capacity on platform extension
287 lbs130 kg
Authorized persons
1

Power

Traction motors
24 V DC
Batteries
2x12 V / 85 Ah C5
Battery charger
24 V / 20 Ah
Oil tank capacity
.5 gal2 l

Tires

Tire dimensions
9.8" x 3.1"250 mm x 80 mm
Tire type
Cushion

Weight

Weight
1,543 lbs700 kg

03Shipping

Shipping and lead time

Shipped by IMER USA
Lead time
Usually ships in 2–3 weeks. The machine is ordered from IMER for you; some are assembled to order or back-ordered, so we confirm the ship date after you order. Expected ship date for an order placed today: Nov 21, 2026. IMER USA ships it directly to you.
Delivery
LTL freight, 7–10 business days in transit. Free to commercial addresses in the contiguous US; residential and/or liftgate delivery adds one flat $75. Ships to the USA and Canada (not to Quebec). Shipping conditions
Returns
30-day returns. Non-defective returns: 15% restocking fee (parts), 30% (machines), return freight paid by the buyer. See Returns
  • Authorized IMER DealerMachines, parts & warranty support
  • Genuine IMER OEM partsOriginal part numbers only
  • Parts ship from IMER USAMachines in 2–3 weeks, date confirmed after you order
  • 30-day returns, restocking fee may applyUnused items with a return authorization (RMA)
