01Where it fits
Where this part sits on your machine
02Fits
Fits these machines
1 machine · 1 IMER parts book
From IMER parts book 3226875 r16 (2018-09).
03Specifications
Part details

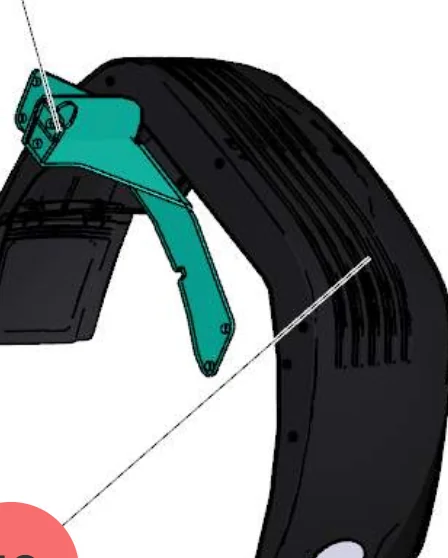

This left mudguard is a genuine IMER part, part number 3236391, made of plastic.
The Step 120 parts book lists it as Mudguard SX, ref. 19, in Tav. 2 Street Version With Mixing. The right-hand mudguard is part number 3236390 (Mudguard DX).
Check that the part number in your machine's parts list matches 3236391 before ordering, or contact us with your machine's model and serial number.
04Documents
Parts books
Guides
Guides for this part
Maintenance
IMER Mixer and Pump Cleaning, Storage and Winter Care
End-of-shift cleaning, freeze draining and storage steps from the IMER manuals for the Mix 750, Mix 120 Plus, Step-Up 120, Small 50, Koine 4 and more.
5 min read
Answers
Questions about the machines it fits
05Shipping & returns
Shipped from the USA
Fit check
Not sure it fits?
Send us the model and serial number from the machine’s serial plate, or a photo of it. A parts specialist checks the fit against the IMER parts books before the part ships.
