01Where it fits
Where this part sits on your machine
Also on this drawing
All 51 parts on Drawing 3, Water Circuit (3223430 400V/50Hz / 3231677 400V/60Hz)02Fits
Fits these machines
1 machine · 1 IMER parts book
From IMER parts book 3223425 r18 (2018-09).
03Where it sits

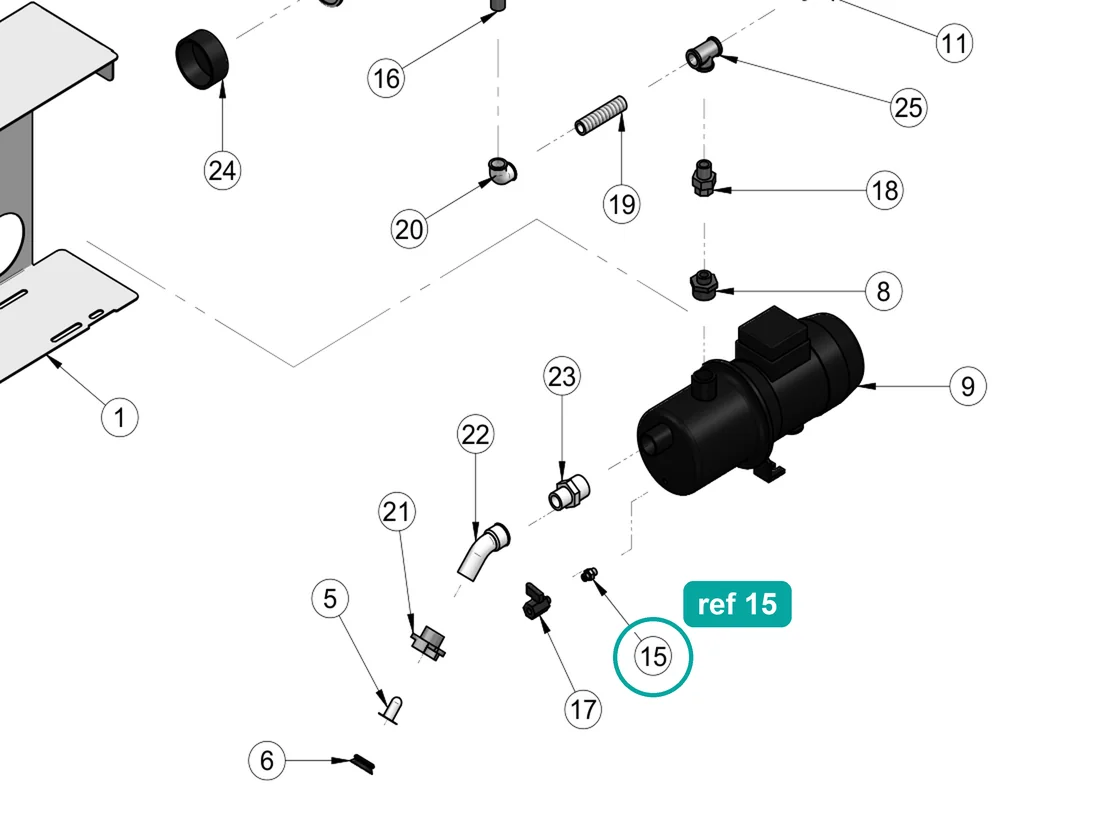

Ref 15 on the Koine 4 drawing
04Specifications
Part details
This 1/8" M. nipple is a genuine IMER part, part number 3223959. The IMER Koine 4 parts book lists it as ref. 15 in the Water Circuit, in TAV.3 (machine codes 3223430 400V/50Hz and 3231677 400V/60Hz) and TAV.3-1 (3236063 220V/60Hz and 3236484 400V/50Hz).
Check that the part number in your machine's parts list matches before ordering, or contact us with your machine's model and serial number.
05Used with
Often replaced together
Wear parts next to it on the same drawing
06Documents
Parts books
Guides
Guides for this part
Maintenance
IMER Mixer and Pump Cleaning, Storage and Winter Care
End-of-shift cleaning, freeze draining and storage steps from the IMER manuals for the Mix 750, Mix 120 Plus, Step-Up 120, Small 50, Koine 4 and more.
5 min read
Answers
Questions about the machines it fits
07Shipping & returns
Shipped from the USA
Fit check
Not sure it fits?
Send us the model and serial number from the machine’s serial plate, or a photo of it. A parts specialist checks the fit against the IMER parts books before the part ships.
