IMER Tracker 2833 Tracked Dumper, 180° Swivel Bucket, 20 HP Kubota Diesel – genuine IMER machine 5150002Free shipping

01About

About this machine

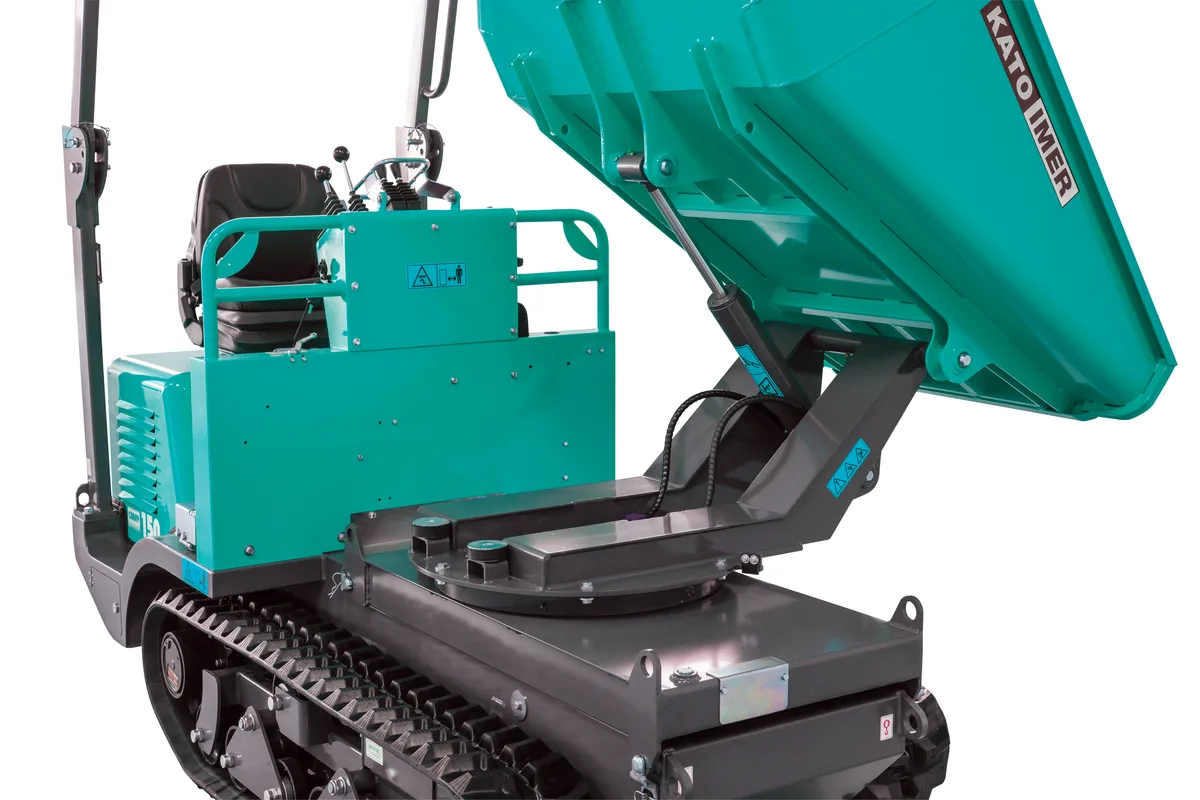

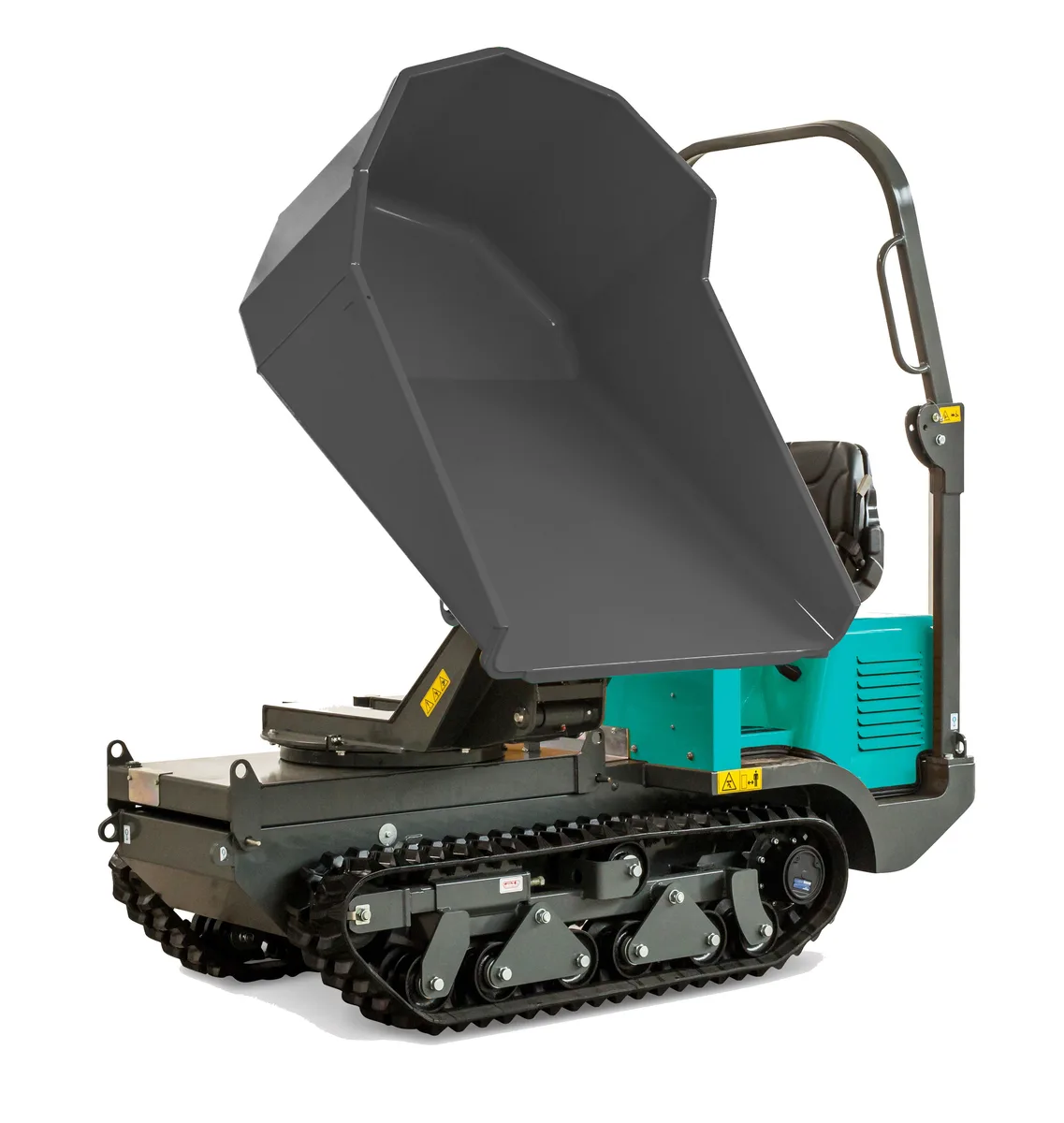

The IMER Tracker 2833 (Carry 150, model 5150002) is a diesel powered, all-terrain tracked crawler with a 180° swivel dump bucket. It has an independent dual circuit hydrostatic transmission with a variable displacement axial piston pump and a dual displacement axial piston hydraulic motor for each track, and the standard model offers a 180° hydraulic lift and swivel bucket. The operator seat sits in a central rear position with access from both sides, behind the swivelling bucket, under a foldable ROPS; the 20 hp Kubota engine is described as abundantly oversized.

IMER lists a Kubota D902 20 hp diesel engine with electric start, a machine weight of 1,896 lbs, an operating load of 3,307 lbs, a 28 cu ft payload capacity, a 5 mph speed, a maximum slope of 32° (62%), 9.5 in ground clearance and a length x height x width of 107 x 93.75 x 42.5 in.

02Shipping

Shipping and lead time

Ships from the USA
Lead time
Usually ships in 2–3 weeks. IMER machines come from Italy and some are assembled to order or back-ordered, so we confirm the ship date after you order.
Delivery
LTL freight, 7–10 business days in transit. Free to commercial addresses in the contiguous US; residential and/or liftgate delivery adds one flat $75. Ships to the USA and Canada (not to Quebec). Shipping conditions
Returns
30-day returns. Return policy
