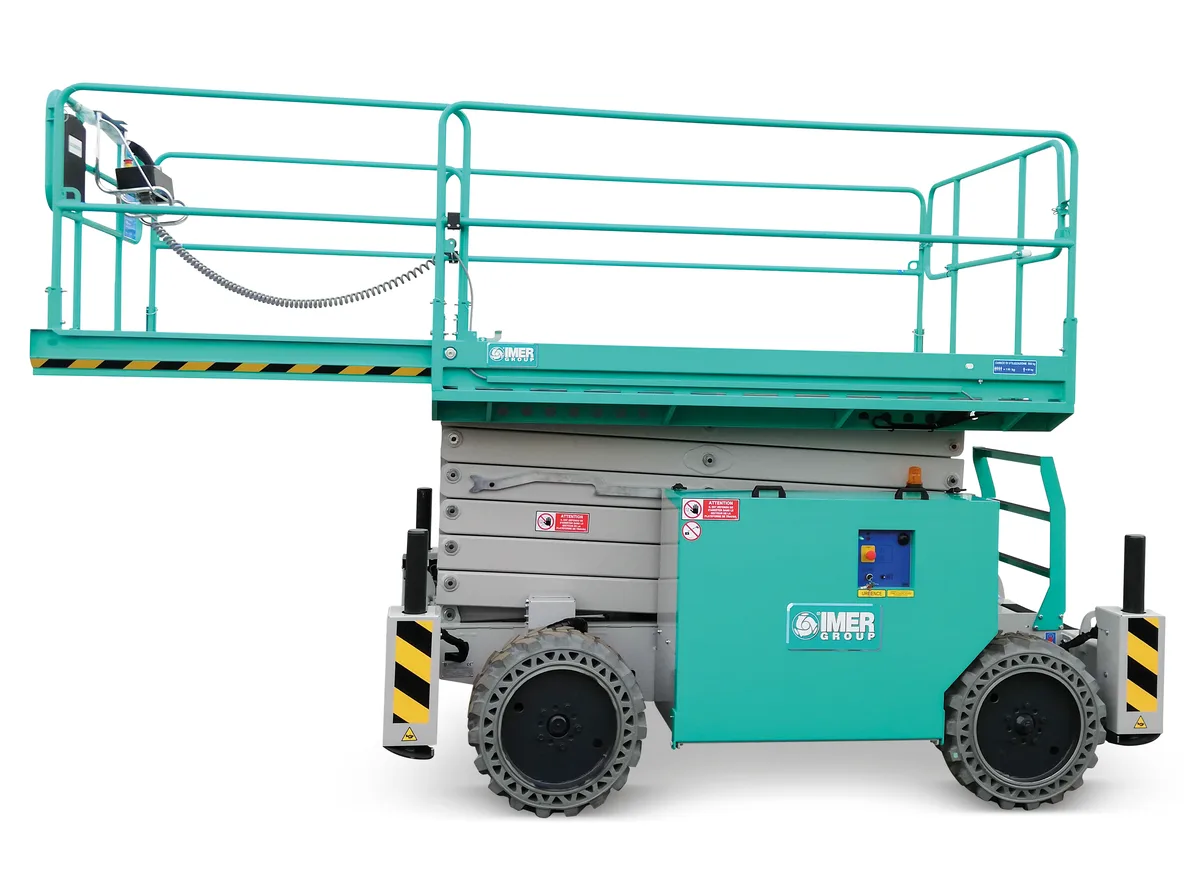

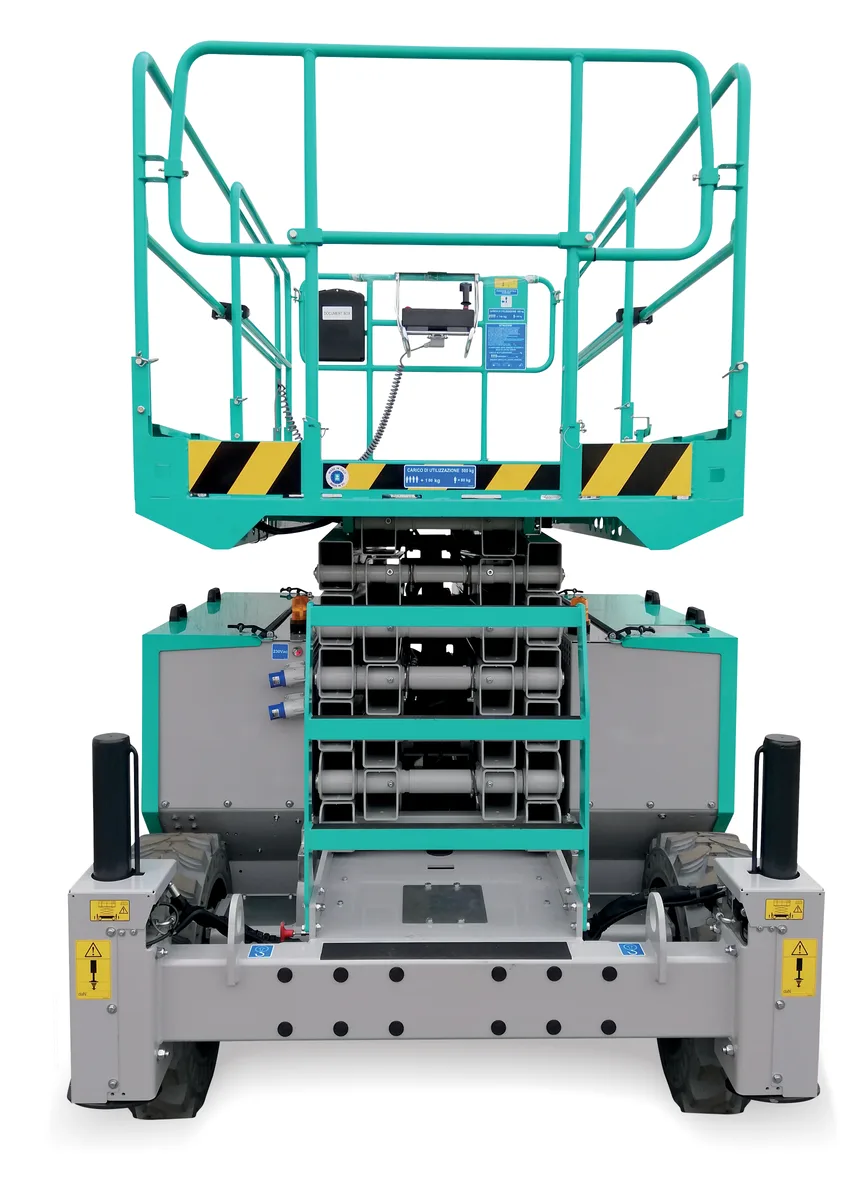

IMER IM 7043 RT E Electric Scissor Lift with Stabilizers, 49 ft Working Height – genuine IMER machine 1128676Free shipping

01About

About this machine

The IMER IM 7043 RT E (model 1128676) is an electric scissor lift for outdoor and indoor use, with stabilizers, a 43 ft platform height and a 49 ft working height. It has best-in-class 40° steering and a simple control box that can be removed from the basket for loading and unloading, and a plug unit for the battery charger and power supply on the basket with a battery level indicator.

Electric equipment: AC motor 48V–7.2kW, a 48V 300Ah traction battery, a battery charger with automatic switch off, a battery control system with low voltage cut-out protection, a battery cut-out handle and extra-grip non-marking rough terrain tires (28 x 9-1/2 in). IMER lists a capacity of 882 lbs for 4 people (1,100 lbs for 4 people in brackets), a platform length of 8 ft 9 in with a 4 ft 11 in extension (13 ft 8 in extended), a width over tires of 5 ft 11 in, a stowed height of 6 ft 9 in, a drive speed of 2.5 mph and gradeability of 25% (2WD) or 35% (4WD).

02Specifications

IMER IM 7043 RT E technical data

From the IMER product sheet

Identification

Model #
1128676

Performance

Platform height
43'12,800 mm
Working height
49'14,900 mm
Lifting / lowering time (loaded)
36 sec (35 sec)
Drive speed
2.5 mph4 km/h
Safety traction speed
0.4 mph0.6 km/h
Internal steering radius
5' 7"1.94 m
External steering radius (without stabilizers)
15' 10" (14' 10")4.83 m (4.52 m)
Gradeability
2WD: 25% / 4WD: 35%
Max side / longitudinal tilt angle
2.0° / 2.5°

Capacity

Capacity / people (stabilized)
882 lbs / 4 (1,100 lbs / 4)400 kg / 4 (500 kg / 4)
Hydraulic tank capacity
14.8 gal56 l

Dimensions

Pot-hole (raised/lowered)
12"300 mm
Height stowed
6' 9"2,056 mm
Height (ground to platform bottom)
5' 6"1,698 mm
Height storage (with guardrails)
9' 8"2,944 mm
Width (outside tires)
5' 11"1,800 mm
Platform length
8' 9"2,700 mm
Platform length - extended
13' 8"4,200 mm
Extension platform length
4' 11"1,500 mm
Min. height (chassis to ground)
12"300 mm
Tire size
28" x 9 1/4"720 x 245 mm

Power

Electric drive motors
48 V / 10 HP48 V / 7.2 kW
Lifting power pack (hydraulic)
48 V / 3 HP48 V / 2.1 kW
Traction battery (standard)
48 V / 300 Ah (C5)
Battery charger
48 V / 30 A

Weight

Total weight
10,471 lbs4,750 kg

03Shipping

Shipping and lead time

Ships from the USA
Lead time
Usually ships in 2–3 weeks. IMER machines come from Italy and some are assembled to order or back-ordered, so we confirm the ship date after you order.
Delivery
LTL freight, 7–10 business days in transit. Free to commercial addresses in the contiguous US; residential and/or liftgate delivery adds one flat $75. Ships to the USA and Canada (not to Quebec). Shipping conditions
Returns
30-day returns. Return policy
