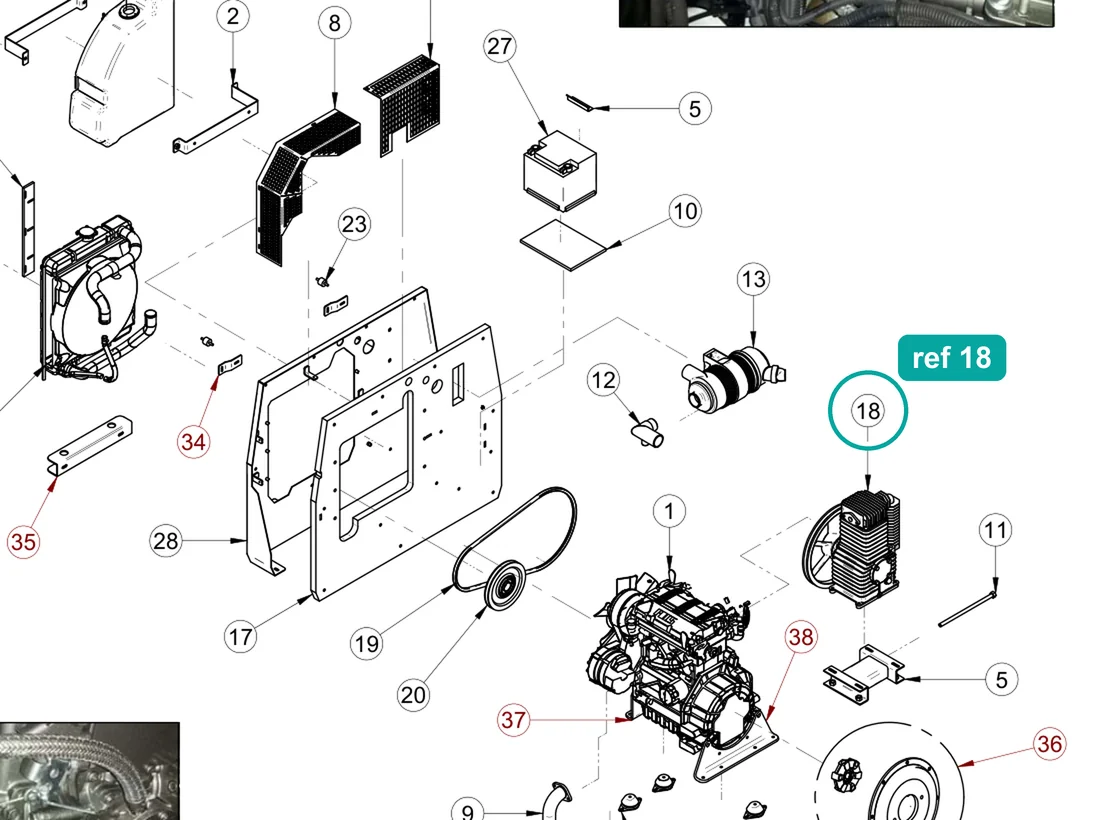

Compressor K18/B VA320 DX (ref 18) highlighted on the IMER Prestige 300 parts diagram, Engine Assembly – part 3224466

01Where it fits

Where this part sits on your machine

Also on this drawing

All 40 parts on Drawing 5, Engine Assembly
  • 13
    Air filter

    1235970

    $712.00In stock

  • 36
    Coupling

    3234110

    $2,964.00In stock

  • 27
    Battery 55Ah/510CCA

    3224465

    $386.00In stock

  • 19
    Belt

    3224494

    $88.00In stock

  • 25
    Piston pump

    3230469

    $7,420.00In stock

  • 31
    Clamp

    3225279

    $27.00In stock

02Fits

Fits these machines

1 machine · 1 IMER parts book

From IMER parts book 3234338 r03 (2018-09).

03Where it sits

Ref 18 on the Prestige 300 drawing

Open full diagram →
Prestige 300 — Engine Assembly, parts list
RefPart no.NamePrice
13234116Diesel EngineRequest price
13234965Diesel EngineAlternate code to 3234116; notes 1106130 / 1106133 (version-dependent)Request price
23230245Front BracketRequest price
33230246Rear BracketRequest price
43230247SilencerIn stock, $511.00
53224270Compressor SupportRequest price
63224295Battery Support BracketIn stock, $76.00
73230573Engine Belt GuardRequest price
83234280Engine Fan GuardRequest price
93234224Silencer ManifoldRequest price
103225283Battery Support RubberRequest price
113228622Belt Tightener StayRequest price
123234130Air Filter ManifoldRequest price
131235970Air FilterIn stock, $712.00
142224340WasherIn stock, $10.00
152222154ScrewIn stock, $10.00
162222146ScrewIn stock, $10.00
173234264Sound-Absorbent PanelRequest price
183224466Compressor K18/B VA320 DXC/C S/FIn stock, $2,195.00
193224494BeltIn stock, $88.00
203234273Compressor PulleyRequest price
213234505Heat ExchangerRequest price
223224447Bell Vibration Damper SupportsRequest price
233234271Vibration DamperRequest price
243234269Radiator BracketRequest price
253230469Piston PumpIn stock, $7,420.00
263230500Spila Tank20 TankIn stock, $388.00
273224465Battery 55Ah/510CCAIn stock, $386.00
283230227Partition PanelRequest price
293234226Engine RadiatorIn stock, $3,177.00
303225278Stainless Steel Flexible Tube Int. Diam 45Request price
313225279ClampIn stock, $27.00
323225858FloatIn stock, $21.00
333234235Protective SleeveRequest price
343234270BracketRequest price
353234271BracketSame code as ref 23 (Vibration Damper) as printedRequest price
363234110CouplingIn stock, $2,964.00
373234266BracketRequest price
383234267BracketRequest price
393234278Diesel Fuel Filter CartridgeRequest price
403234279Oil Filter CartridgeIn stock, $84.00

04Specifications

Part details

Part number
3224466(3224-466)
Brand
IMER (genuine OEM)
Condition
New
Assembly
Engine Assembly
Fits
1 machine

This is genuine IMER part number 3224466. The official IMER parts books list it as "Compressor K18/B VA320 DX" and show it for the IMER Prestige 300.

Parts-book listings: Prestige 300, table 5 (Engine Assembly), ref 18; Prestige 300, table 6 (Pneumatic Circuit), ref 1.

Check that the part number on your old part or in your machine's parts list matches 3224466 before ordering, or contact us with your machine's model and serial number.
