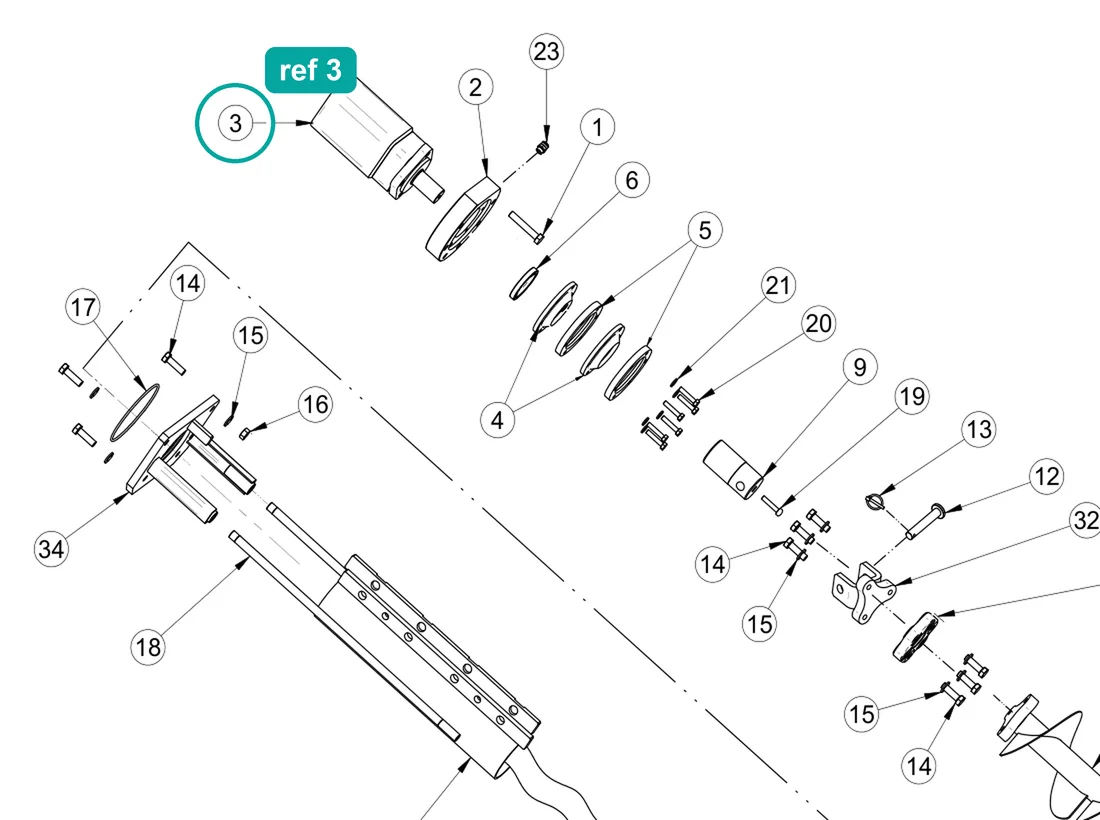

Hydraulic motor HR200 C32 (ref 3) highlighted on the IMER Prestige 300 parts diagram, Pump Unit – part 3224336

01Where it fits

Where this part sits on your machine

Also on this drawing

All 37 parts on Drawing 4, Pump Unit
  • 17
    O-Ring 4525

    3224356

    $10.00In stock

  • 2
    Hopper motor flange

    3224339

    $301.00In stock

  • 16
    Self locking nut

    2223921

    $10.00In stock

  • 4
    Seal

    3224337

    $66.00In stock

  • 6
    Sealing ring 55×72×10

    3224489

    $10.00In stock

  • 5
    Seals flange

    3224311

    $78.00In stock

02Fits

Fits these machines

1 machine · 1 IMER parts book

From IMER parts book 3234338 r03 (2018-09).

03Where it sits

Ref 3 on the Prestige 300 drawing

Open full diagram →
Prestige 300 — Pump Unit, parts list
RefPart no.NamePrice
12222102ScrewRequest price
23224339Hopper Motor FlangeIn stock, $301.00
33224336Hydraulic Motor HR200 C32SamhydraulicIn stock, $1,690.00
43224337SealInt. diam. 55In stock, $66.00
53224311Seals FlangeIn stock, $78.00
63224489Sealing Ring 55x72x10In stock, $10.00
73224454Stator 2L6Request price
83224453Rotor 2L6Request price
93224338Motor Shaft ExtensionRequest price
103224340Flexible CouplingIn stock, $363.00
113228470Locking Pin D=12In stock, $54.00
123224341Locking Pin D=16In stock, $54.00
133224628Snap Split Pin D=4.5In stock, $10.00
142222007Screw TE 12x35In stock, $10.00
152224380Washer 12x24 UNI 6592-69In stock, $10.00
162223921Self-Locking NutIn stock, $10.00
173224356O-Ring 4525In stock, $10.00
183224357Delivery Manifold StayIn stock, $88.00
191222252Screw TCEI M8x25In stock, $10.00
202222004Screw TE M8x35 Z UNI 5739 8.8In stock, $10.00
212224060Grower Washer D.8 ZIn stock, $10.00
223224395Special Nut M16In stock, $34.00
23322434590° Air Swivel Quick Coupling 1/4" MRequest price
243224492Cam-Lock Coupling DN50 F-2" G-FRequest price
253224499Rubber Seal DN50 Cam-LockIn stock, $10.00
263224500Pressure Gauge ConnectionIn stock, $103.00
273223392MembraneIn stock, $29.00
283225275Spacer Ring for MembraneIn stock, $53.00
293224173Reduction M1-1/2" - F1/2" BrassIn stock, $65.00
303223689Pressure Gauge D=63 0-100 Bar Conn. 1/4"In stock, $106.00
313228466Hopper Screw FeederRequest price
323226361Hopper Shaft JointIn stock, $221.00
333224334Screw ClampIn stock, $476.00
343224354Screw Support FlangeRequest price
353224390Delivery ManifoldIn stock, $356.00
363224498Cam-Lock Lever DN 25-35-50In stock, $16.00
373223609Reducer M. 1/2" - F. 1/4"In stock, $10.00

04Specifications

Part details

Part number
3224336(3224-336)
Brand
IMER (genuine OEM)
Condition
New
Assembly
Pump Unit
Fits
1 machine

This is genuine IMER part number 3224336. The official IMER parts books list it as "Hydraulic Motor HR200 C32" and show it for the IMER Prestige 300.

Parts-book listings: Prestige 300, table 4 (Pump Unit), ref 3; Prestige 300, table 10 (Hydraulic System Connections Assembly), ref 36.

Check that the part number on your old part or in your machine's parts list matches 3224336 before ordering, or contact us with your machine's model and serial number.
