IMER Prestige 300 Diesel Pump and Spray Machine, 24 hp – IMER part 1106433

01About

About this machine

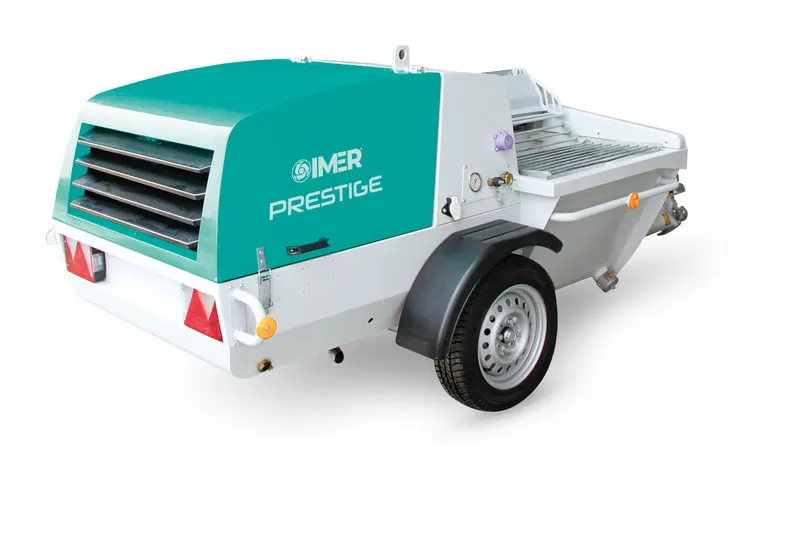

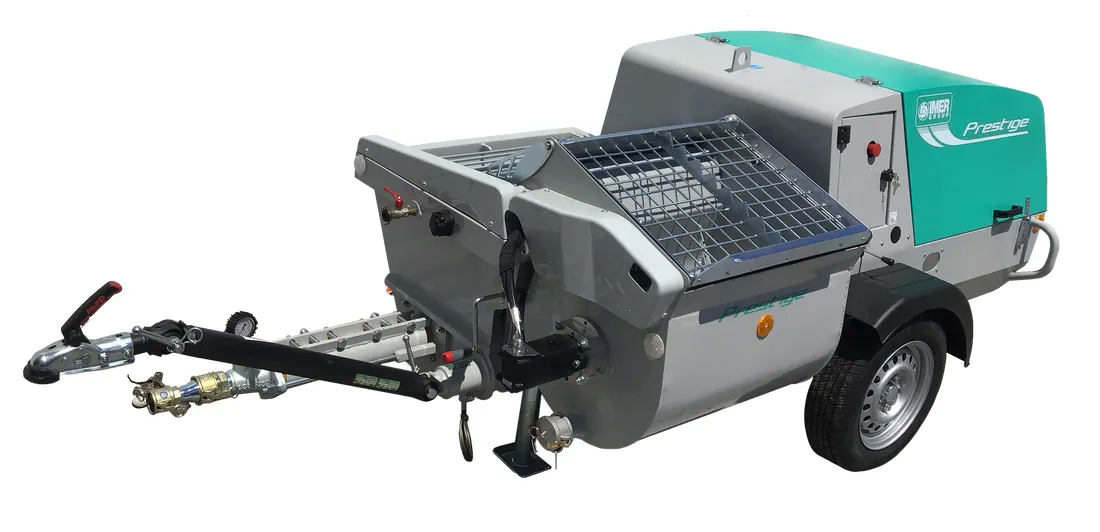

The IMER Prestige 300 (model 1106433) is a diesel-powered, multi-purpose progressive cavity pump and spray machine with a built-in 6.3 cu ft high-shear hydraulic mixer and an onboard compressor for spraying. Mixing, pumping and spraying are run from one control panel with pressure gauges, indicators and variable speed electro-hydraulic controls.

A 24 hp Yanmar diesel engine powers the machine. The compressor delivers 14 cfm and the hopper holds 7 cu ft. It comes with the 2L6 rotor/stator and also takes IM25L, 60.12 and L7 rotor/stator sets for pumping a range of materials, including aggregate up to 3/8 in. The mixer has a hydraulic dump, a programmable timer and a safety sensor that stops the paddles if the grid is opened.

Torsion bar suspension, an articulating towbar and a tow package allow highway towing. It measures 131.5 x 55.5 x 53 in (W x L x H) and weighs 1,653 lbs. Optional equipment includes material hoses, a vibrating grate, remote controls, a shotcrete gun and a spray gun.

02Versions

2 versions of the IMER Prestige 300

Each has its own page, price and part number
  • 1106433

    24 hp

    This version

    $49,999

    In stock

IMER Prestige 300: all versions, specs and parts

03Specifications

IMER Prestige 300 technical data

From the IMER product sheet

General

Model #
1106433

Power

Engine
Diesel 24 hp

Performance

Compressor flow rate
14 cfm
Max pumpable aggregate size (IM25L)
3/8 in
Noise level
<79 dB

Capacity

Hopper capacity
7 cu ft
Mixer capacity
6.3 cu ft

Dimensions

Dimensions (W x L x H)
131.5 in x 55.5 in x 53 in

Weight

Weight
1,653 lbs

Pump

Standard rotor/stator
2L6 (Rotor #1107078, Stator #1107077)
Rotor/stator options
2L6, IM25L, 60.12, L7

04Parts & manuals

Parts that fit the IMER Prestige 300

409 part numbers · 21 drawings

Parts you can order for the Prestige 300

05Shipping

Shipping and lead time

Ships from the USA
Lead time
Usually ships in 2–3 weeks. IMER machines come from Italy and some are assembled to order or back-ordered, so we confirm the ship date after you order.
Delivery
LTL freight, 7–10 business days in transit. Free to commercial addresses in the contiguous US on orders over $1,500; residential delivery adds $150 and a liftgate $150. Ships to the USA and Canada (not to Quebec). Shipping conditions
Returns
30-day returns. Return policy
