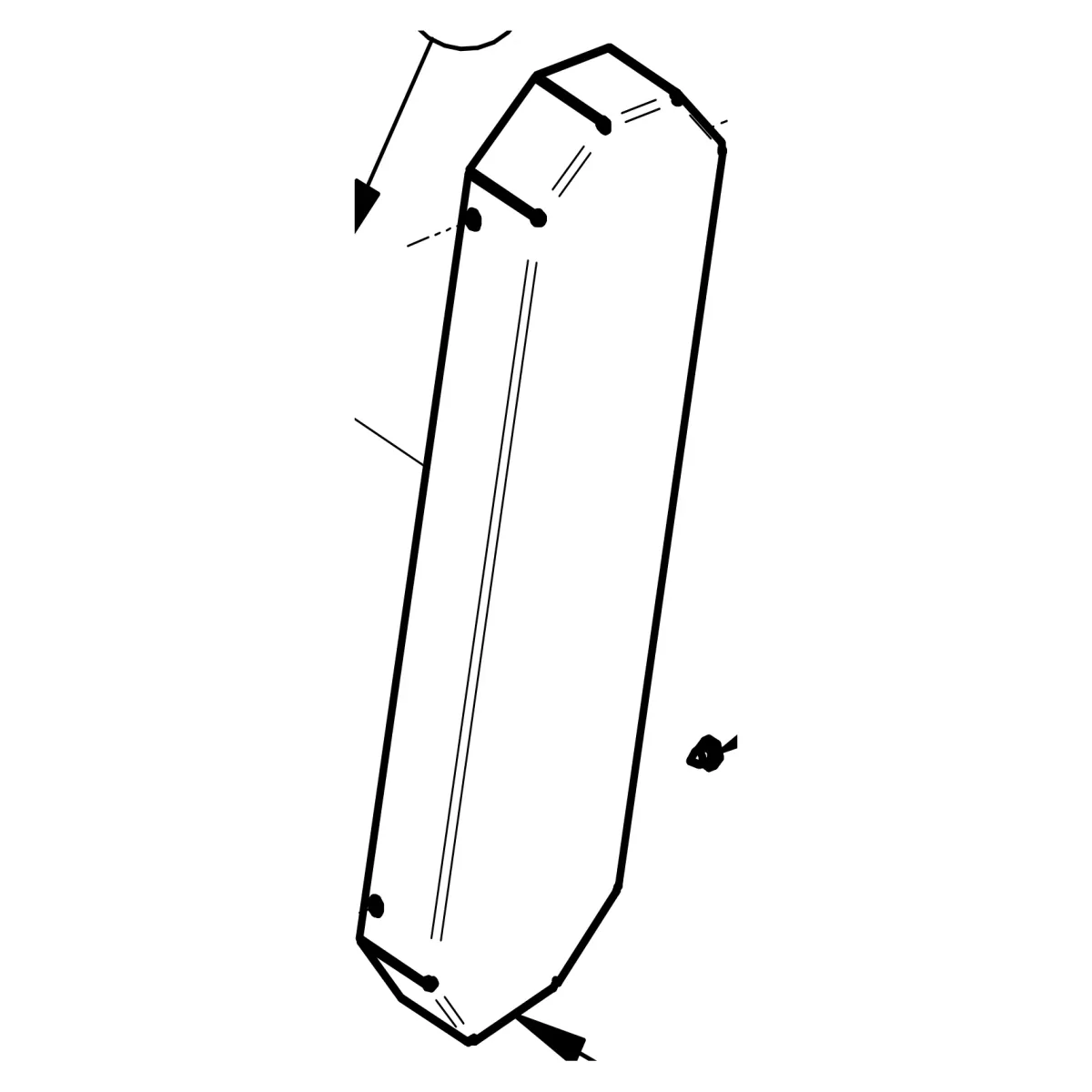

Arm guard – genuine IMER part 3237358 for IMER Masonry 350 Smart Cut

01Where it fits

Where this part sits on your machine

Also on this drawing

All 43 parts on Drawing 5, Arm Assembly
  • 39
    Belt

    3231365

    $104.00In stock

  • 36
    Pulley

    3231362

    $55.00In stock

  • 5
    Bolt TCEI 5931 M6×25

    2222541

    $10.00In stock

  • 6
    Screw TSPEI M6×20 5933

    2222607

    $10.00In stock

  • 1
    Bearing 6205

    2204540

    $13.00In stock

  • 28
    Blade shaft

    3231350

    $135.00In stock

02Fits

Fits these machines

1 machine · 1 IMER parts book

From IMER parts book 3231378 r05 (2019-06).

03Where it sits

Ref 38 on the Masonry 350 Smart Cut drawing

Open full diagram →
Masonry 350 Smart Cut — Arm Assembly, parts list
RefPart no.NamePrice
12204540Bearing 6205 2RSIn stock, $13.00
22222060Screw TE M8x20 5739In stock, $10.00
32222465Screw Trilobular TC PH M5x15In stock, $10.00
42222515Screw TCEI M8x16 5931In stock, $10.00
52222541Screw TCEI M6x25 5931In stock, $10.00
62222607Screw TSPEI M6x20 5933In stock, $10.00
72223650Nut M10 5588In stock, $10.00
82224140Washer D.8x18 6593In stock, $10.00
92224204Washer D.8x24 6593In stock, $10.00
102227240Stop Ring E30 7435In stock, $10.00
112227700Stop Ring I52 7437In stock, $10.00
122229259Key 6x6x14In stock, $10.00
133201216Cable Clamp PG 13.5In stock, $10.00
143206163Threaded Insert M6Request price
153208452Plug GPN 320In stock, $10.00
163210233SwitchIn stock, $91.00
173227465Key 6x6x16In stock, $10.00
183230972GasketIn stock, $22.00
193231742Head SpringIn stock, $51.00
203231077PivotIn stock, $238.00
213225049CapacitorIn stock, $170.00
223231010Bushing GFM-3034-20In stock, $15.00
233231011Handwheel M12x40In stock, $16.00
243231030Grub Screw D.10x25 5925Request price
253231031Grub Screw D.10x25 5927Request price
263231076SpacerIn stock, $24.00
273231210Safety Washer D.12x24In stock, $10.00
283231350Blade ShaftIn stock, $135.00
293231351Oil Retainer 52x25x8Request price
303231352Self-Tapping Screw TE D.4.8x9.5 6950Request price
313237359ArmRequest price
323231359Electric MotorIn stock, $1,036.00
333233082Oil Retainer 25x35x7In stock, $27.00
343237356GuardIn stock, $60.00
353231361PulleyRequest price
363231362PulleyIn stock, $55.00
373237357GuardRequest price
383237358GuardIn stock, $137.00
393231365BeltIn stock, $104.00
403231367Electrical EnclosureIn stock, $25.00
413231368SpacerIn stock, $37.00
423237190Lower PlateRequest price
433237188Upper PlateRequest price

04Specifications

Part details

Part number
3237358(3237-358)
Brand
IMER (genuine OEM)
Condition
New
Assembly
Arm Assembly
Fits
1 machine

This arm guard is a genuine IMER OEM part, part number 3237358. The IMER Smart Cut 350 14" parts book lists it as ref. 38, Guard, in Table 5, Arm Assembly, of the Masonry 350 Smart Cut saw (model 1188975). The same table lists two other guards, 3237356 (ref. 34) and 3237357 (ref. 37).

Our store has also listed it as a cover for the Smart Cut 350 with a 14 in blade, 115V 60Hz. Check the part number against the parts list for your saw before ordering.

05Used with

Often replaced together

Wear parts next to it on the same drawing
  • 2204540

    Bearing 6205

    Ref 1 on the same drawing

    $13.00

    In stock

  • 3231076

    Spacer

    Ref 26 on the same drawing

    $24.00

    In stock

  • 3231368

    Spacer

    Ref 41 on the same drawing

    $37.00

    In stock

  • 2224204

    Washer D.8×24

    Ref 9 on the same drawing

    $10.00

    In stock

06Documents

Parts books

Answers

Questions about the machines it fits

All answers

07Shipping & returns

Shipped from the USA

Shipping & delivery →Returns & warranty →

  • Ships from the USA

    Leaves us in 1–3 business days; ground delivery usually takes 5–7 business days.

  • Free shipping over $1,500

    On orders over $1,500 to commercial addresses in the contiguous US.

  • 30-day returns

    30-day returns on unused items with a return authorization.

08Questions

Good to know

Which IMER machine does part 3237358 fit?

The IMER Masonry 350 Smart Cut saw. The parts book lists it as the guard in the arm assembly.

Is part 3237358 a cover or a guard?

It is the same part. The IMER parts book calls it the guard in the arm assembly; it has also been listed as a cover.
