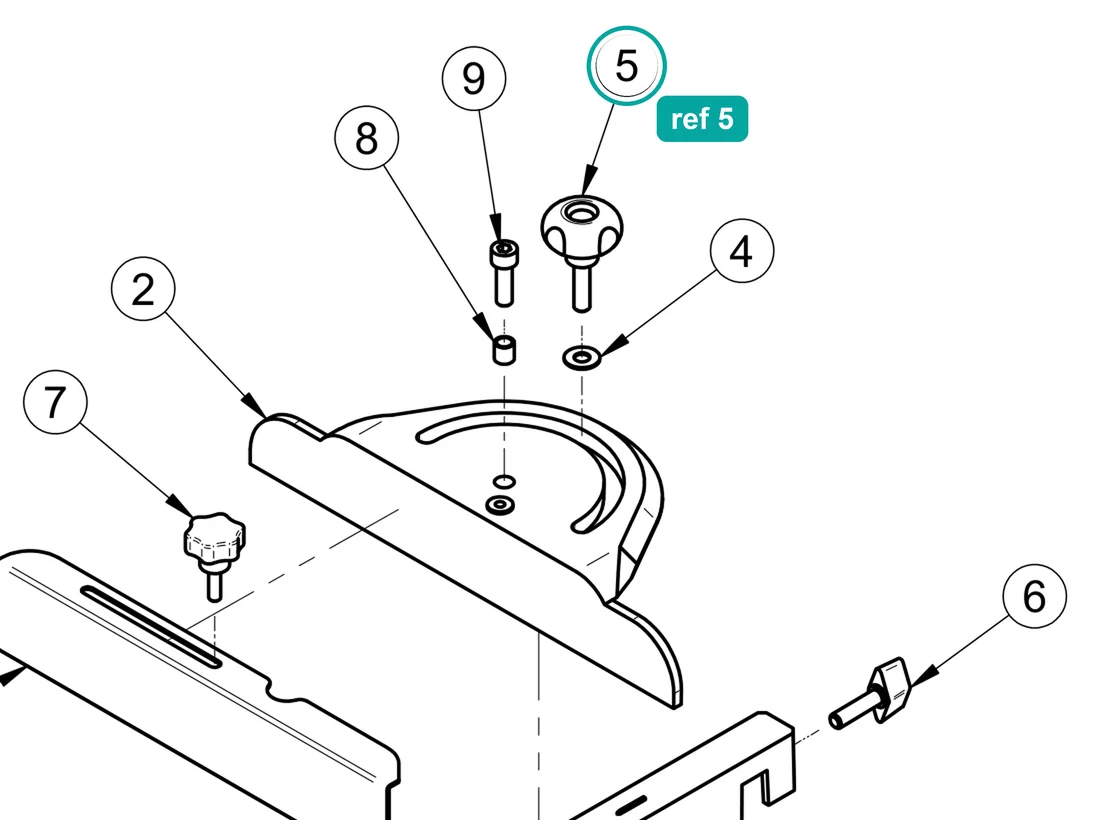

Handwheel M8×30 (ref 5) highlighted on an IMER parts-book drawing – part 3207939

01Where it fits

Where this part sits on your machine

Also on this drawing

All 9 parts on Drawing 3, Complete Goniometer
  • 9
    Bolt TCEI 5931 M8×25

    2222511

    $10.00In stock

  • 4
    Washer M8

    2224140

    $10.00In stock

  • 7
    Handwheel M6×20

    3223279

    $10.00In stock

  • 6
    Handwheel M8×30

    3211381

    $10.00In stock

  • 3
    Sliding rod

    3226360

    $62.00In stock

02Fits

Fits these machines

5 machines · 4 IMER parts books

From IMER parts books 3226123 r07 (2018-09), Combicut 250 VA, 3227118 r14 (2018-09), 3231790 r07 (2018-09).

03Where it sits

Ref 5 on the Combicut 200 VA drawing

Open full diagram →
Combicut 200 VA — Complete Goniometer, parts list
RefPart no.NamePrice
13230619Goniometer SupportRequest price
23230618GoniometerRequest price
33226360Sliding RodIn stock, $62.00
42224140Washer 6593 D.8x18In stock, $10.00
53207939Handwheel M8x30In stock, $10.00
63211381Handwheel M8x30In stock, $10.00
73223279Handwheel M6x20In stock, $10.00
83230638SpacerRequest price
92222511Bolt TCEI 5931 M8x25In stock, $10.00

04Specifications

Part details

Part number
3207939(3207-939)
Brand
IMER (genuine OEM)
Condition
New
Assembly
Complete Goniometer
Fits
5 machines

This is genuine IMER part number 3207939. The official IMER parts books list it as "Handwheel M8x30" and show it for the IMER Combicut 350 iPower, Combicut 200 VA, Combicut 250 VA and 2 more models.

Parts-book listings: Combicut 200 VA, table 3 (Complete Goniometer), ref 5; Combicut 250/1000 VA and Combicut 250/1500 VA, table 3 (Complete Goniometer), ref 5; Combicut 350 iPower, table 1 (Machine Structure), ref 29; Combicut 250 VA, table 3 (Complete Goniometer), ref 5.

Check that the part number on your old part or in your machine's parts list matches 3207939 before ordering, or contact us with your machine's model and serial number.

05Used with

Often replaced together

Wear parts next to it on the same drawing
  • 2224140

    Washer M8

    Ref 4 on the same drawing

    $10.00

    In stock

06Documents

Parts books

Answers

Questions about the machines it fits

All answers

07Shipping & returns

Shipped from the USA

Shipping & delivery →Returns & warranty →

  • Ships from the USA

    Leaves us in 1–3 business days; ground delivery usually takes 5–7 business days.

  • Free shipping over $1,500

    On orders over $1,500 to commercial addresses in the contiguous US.

  • 30-day returns

    30-day returns on unused items with a return authorization.

Fit check

Not sure it fits?

Send us the model and serial number from the machine’s serial plate, or a photo of it. A parts specialist checks the fit against the IMER parts books before the part ships.
