IMER Minuteman II Portable Electric Mixer, Poly Drum, 5 cu ft – IMER part 1126632

01About

About this machine

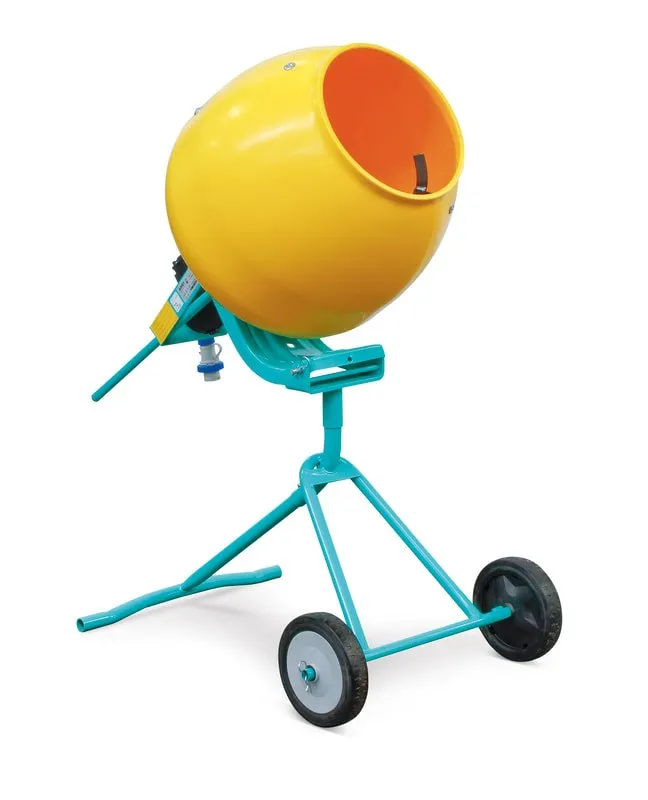

The IMER Minuteman II, model 1126632, is a compact portable mixer with a poly drum for mortar, stucco, grout and concrete. IMER describes it as a beltless, gear-driven mixer with a 1/2 hp, 120V (6 amp) electric motor, and the electric motor runs quietly, which suits indoor work.

The 5 cu ft drum is 24 in in diameter and produces a 3 cu ft batch, and the paddles are designed to mix fast and completely. Discharge height is 21 in. The mixer rides on 10 in pneumatic wheels, weighs 101 lbs and is easy to assemble and transport. Operating dimensions are 26 in wide, 52 in long and 57 in high; palletized, it measures 26 x 26 x 27 in.

Poly and steel drums are interchangeable; the steel drum version is model 1126608. The Minuteman II has been used for more than 30 years to build block buildings, stucco houses and patios, and to tumble rocks.

02Versions

2 versions of the IMER Minuteman II

Each has its own page, price and part number
  • 1126632

    Poly Drum, 5 cu ft

    This version

    $1,299

    In stock

IMER Minuteman II: all versions, specs and parts

03Specifications

IMER Minuteman II technical data

From the IMER product sheet

Capacity

Drum capacity
5 cu ft
Batch output
3 cu ft

Power

Motor
1/2 hp 120V / 6 amp

Dimensions

Drum diameter
24 in
Discharge outlet height
21 in
Wheel size
10 in wheels
Operating width (palletized)
26 in (26 in)
Operating length (palletized)
52 in (26 in)
Operating height (palletized)
57 in (27 in)

Weight

Weight
101 lbs

04Shipping

Shipping and lead time

Ships from the USA
Lead time
Usually ships in 2–3 weeks. IMER machines come from Italy and some are assembled to order or back-ordered, so we confirm the ship date after you order.
Delivery
LTL freight, 7–10 business days in transit. Free to commercial addresses in the contiguous US; residential and/or liftgate delivery adds one flat $75. Ships to the USA and Canada (not to Quebec). Shipping conditions
Returns
30-day returns. Return policy
