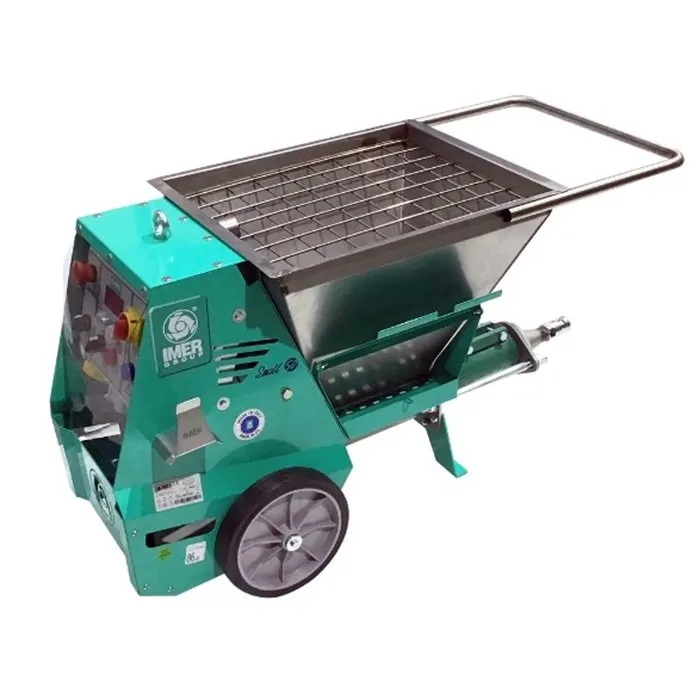

IMER Mighty Small 50 EVO Pump and Spray Machine, 120V – IMER part 1106344Free shipping

01About

About this machine

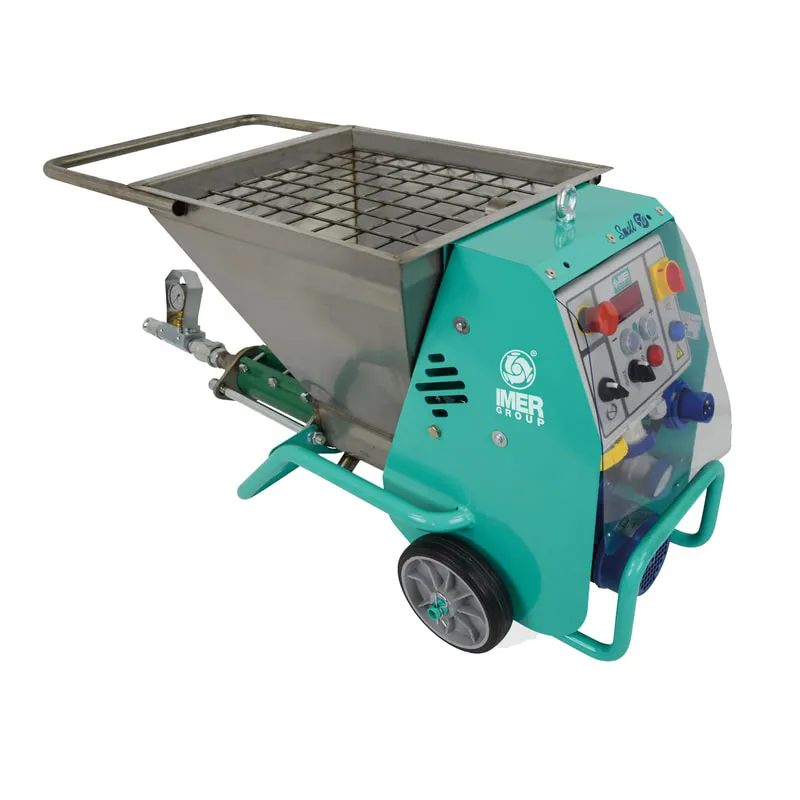

The IMER Mighty Small 50 EVO (model 1106344) is a portable, multi-purpose progressive cavity (screw) pump and spray machine for grouts, mortars, stucco and fireproofing. Typical jobs include pumping grout into forms, bridge deck repair, spraying fireproofing on high-rise buildings and filling block with grout.

It runs on 120V with a 1.75 hp pump motor and is rated at 60 bags (50 lb) per hour with aggregate up to 1/4 in. The stainless steel hopper holds 1.75 cu ft, and its 25.5 in loading height leaves room for a Spin 15 or Mix 120 mixer above it. The machine measures 20.5 x 44 x 25.5 in (W x L x H), weighs 90 lbs and runs under 74 dB(A).

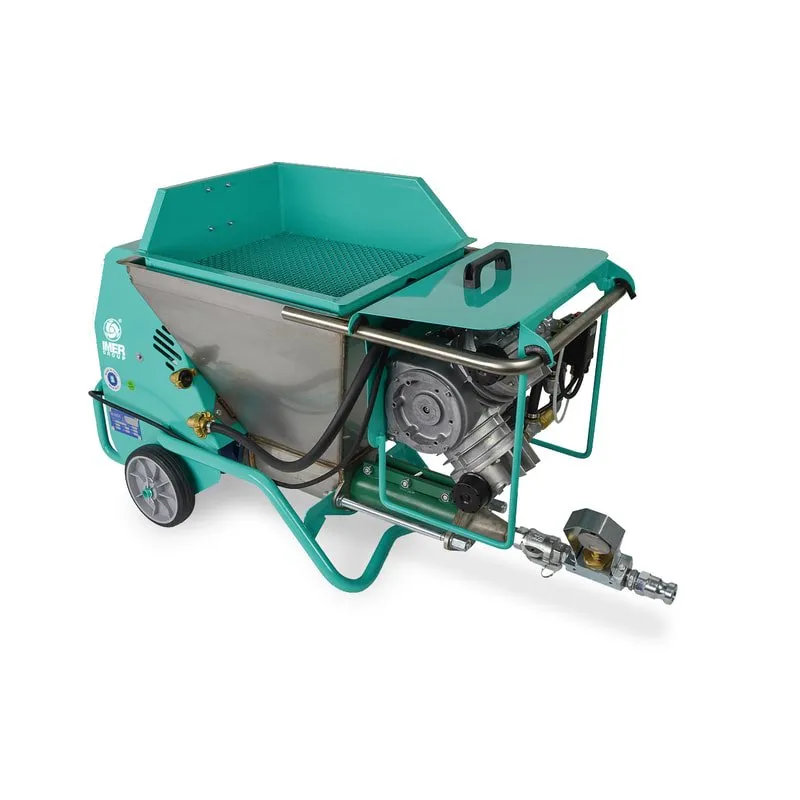

Standard equipment includes a D8-1.5 rotor/stator, an inverter-driven control panel that changes speed by modulating frequency, an electric remote control with 53 ft cable, a material pressure gauge and an accessory toolbox. Options include a dual-diaphragm compressor (1107546) that turns the pump on and off by air control, a vibrating screen for bulk sand mixes, a vibrating hopper for tuckpointing, gun kits, 25 mm material hoses and D5-2.5 rotor/stator parts.

02Specifications

IMER Small 50 EVO technical data

From the IMER product sheet

General

Model #
1106344

Power

Power
120V
Pump motor
1.75 hp

Performance

Flow rate
60 x 50 lb bags per hour
Max aggregate size
1/4 in
Sound pressure level
< 74 dB(A)
Rotor/stator (standard)
D8 - 1.5

Capacity

Hopper capacity
1.75 cu ft

Dimensions

Loading height
25.5 in
Dimensions (w x l x h)
20.5 x 44 x 25.5 in

Weight

Weight
90 lbs

03Shipping

Shipping and lead time

Shipped by IMER USA
Lead time
Usually ships in 2–3 weeks. The machine is ordered from IMER for you; some are assembled to order or back-ordered, so we confirm the ship date after you order. Expected ship date for an order placed today: Dec 9, 2026. IMER USA ships it directly to you.
Delivery
LTL freight, 7–10 business days in transit. Free to commercial addresses in the contiguous US; residential and/or liftgate delivery adds one flat $75. Ships to the USA and Canada (not to Quebec). Shipping conditions
Returns
30-day returns. Non-defective returns: 15% restocking fee (parts), 30% (machines), return freight paid by the buyer. See Returns
